musikelectronic geithain gmbh

Passive and active inline sound reinforcement systems

The TS30 series cover classic sound reinforcement systems in inline technology. High dynamics and limiting level are achieved by special compression drivers with horns. Therefore these products are compatible to existing installations. A technical feature available is our reliable bass cardioid technology. So even in acoustically difficult environments the products of the TS30 series are easy to handle.

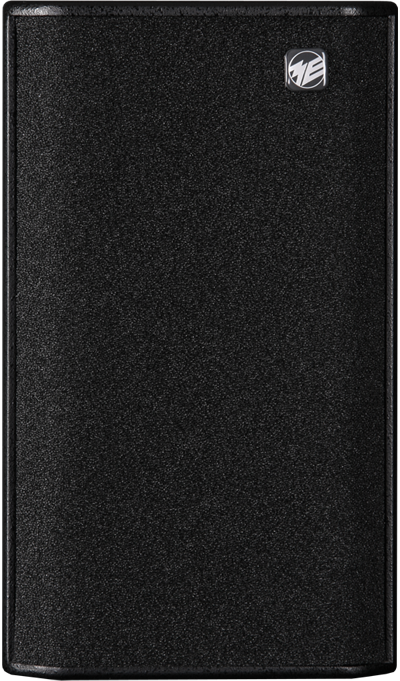

TS32 / TS32K

Passive inline loudspeaker in vented box or with cardioid radiation characteristic
  • Maximum SPL:
    118 dB / r = 1 m
  • Dimensions H x W x D:
    360 x 210 x 252 mm
  • Weight:
    9 kg
  • maximum input power:
    250 Watt
  • transducers:
  • LF:
    1x 6,5" cone
  • HF:
    1x 1" comression driver

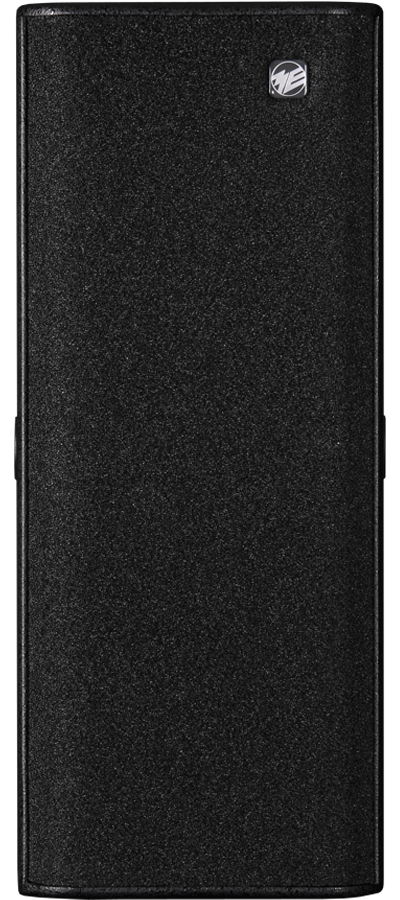

TS33 / TS33K

Passive inline loudspeaker in vented box or with cardioid radiation characteristic
  • Maximum SPL:
    122 dB / r = 1 m
  • Dimensions H x W x D:
    510 x 210 x 252 mm
  • Weight:
    13 kg
  • Maximum input power:
    500 Watt
  • Transducers:
  • LF:
    2x 6,5" cone
  • HF:
    1x 1" compression driver

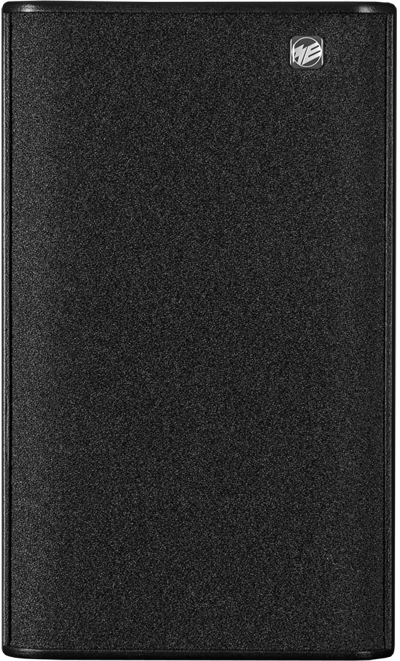

TS34

Passive inline loudspeaker in vented box
  • Maximum SPL:
    118 dB / r = 1 m
  • Dimensions H x W x D:
    440 x 265 x 370 mm
  • Weight:
    12 kg
  • Maximum input power:
    400 Watt
  • Transducers:
  • LF:
    1x 8" cone
  • HF:
    1x 1" compression driver

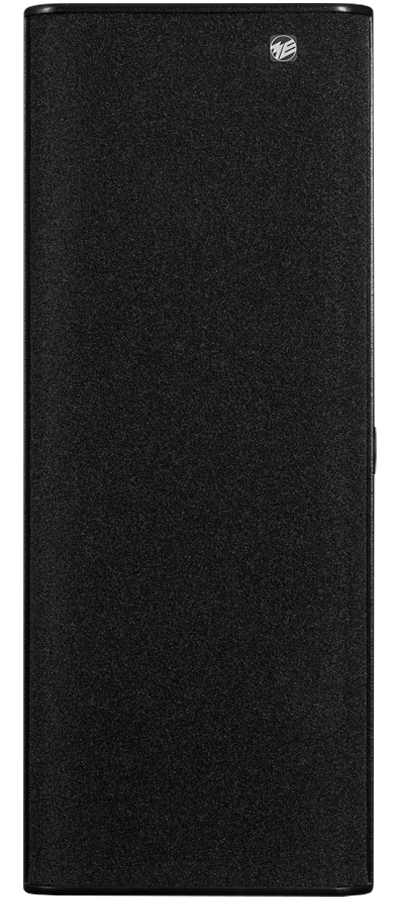

TS35 / TS35K

Passive inline loudspeaker in vented box or with cardioid radiation characteristic
  • Maximum SPL:
    124 dB / r = 1 m
  • Dimensions H x W x D:
    670 x 265 x 280 mm
  • Weight:
    17 kg
  • Maximum input power:
    800 Watt
  • Transducers:
  • LF:
    2x 8" cone
  • HF:
    1x 1" compression driver

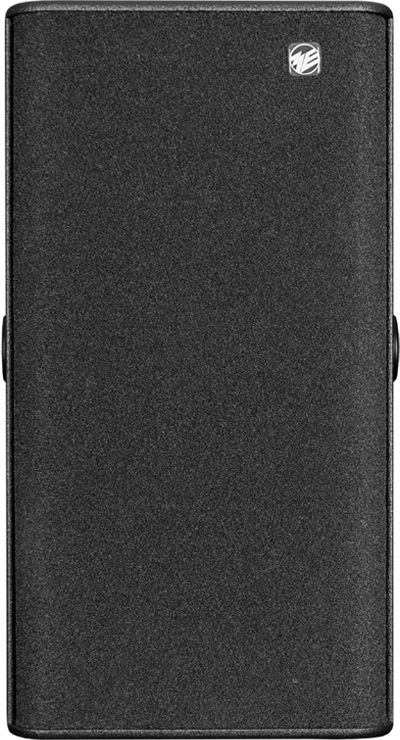

TS36SP / TS36KSP

Active inline loudspeaker in vented box or with cardioid radiation characteristic
  • Maximum SPL:
    126 dB / r = 1 m
  • Dimensions H x W x D:
    600 x 320 x 370 mm
  • Weight:
    21 kg
  • Maximum output power:
    2x 450 Watt
  • Transducers:
  • LF:
    1x 10" cone
  • HF:
    1x 1,4" compression driver

TS37 / TS37K

Passive inline loudspeaker in vented box or with cardioid radiation characteristic
  • Maximum SPL:
    130 dB / r = 1 m
  • Dimensions H x W x D:
    840 x 320 x 430 mm
  • Weight:
    27 kg
  • Maximum input power:
    1200 Watt
  • Transducers:
  • LF:
    2x 10" cone
  • HF:
    1x 1,4" compression driver

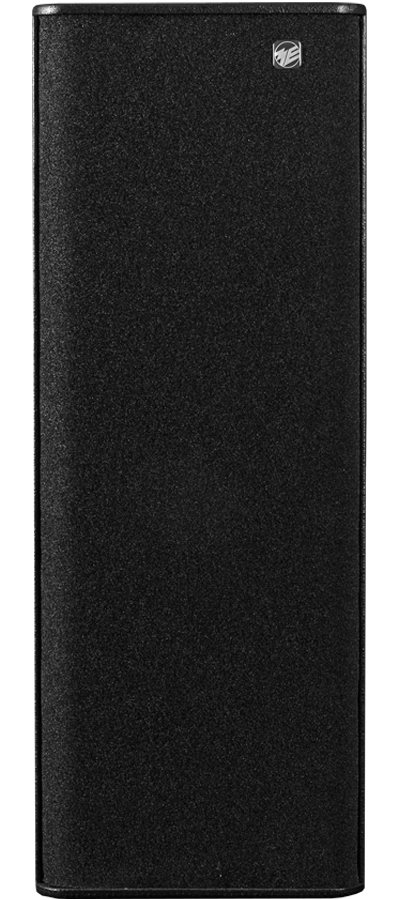

TS37SP / TS37KSP

Active inline loudspeaker in vented box or with cardioid radiation characteristic
  • Maximum SPL:
    129 dB / r = 1 m
  • Dimensions H x W x D:
    860 x 320 x 370 mm
  • Weight:
    30 kg
  • Maximum output power:
    2x 450 Watt
  • Transducers:
  • LF:
    2x 10" cone
  • HF:
    1x 1,4" compression driver
