Passive and active coaxial sound reinforcement systems

The coaxial two-way sound reinforcement systems from the TS40 and TS50 series feature a compact cabinet, neutral sound colour, strong vertical focusing and high dynamics. These systems are engineered for high class speech and music reproduction. In addition they remain optically discrete because of their small dimensions. The abandonment of horn speakers results in a neutrality you only know from first class studio monitors.

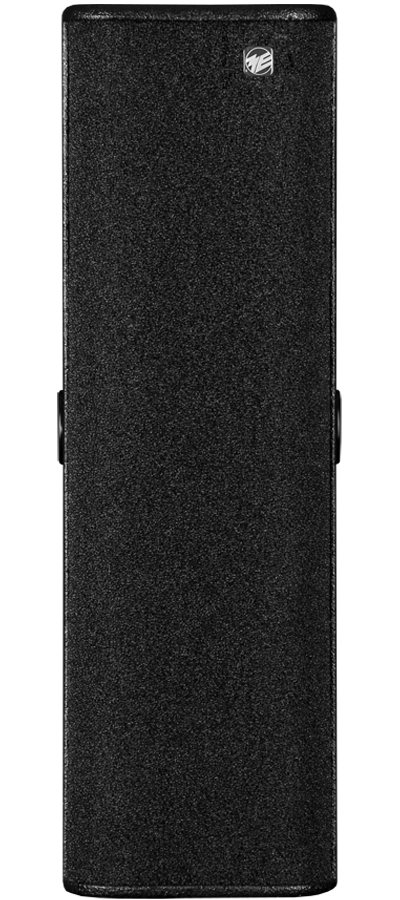

TS46K

Passive coaxial loudspeaker with cardioid radiation characteristic
  • Maximum SPL:
    116 dB / r = 1 m
  • Dimensions H x W x D:
    443 x 136 x 172 mm
  • Weight:
    6,3 kg
  • Maximum input power:
    240 Watt
  • Transducers:
  • LF:
    4x 4" cone
  • HF:
    8x 1" dome tweeter

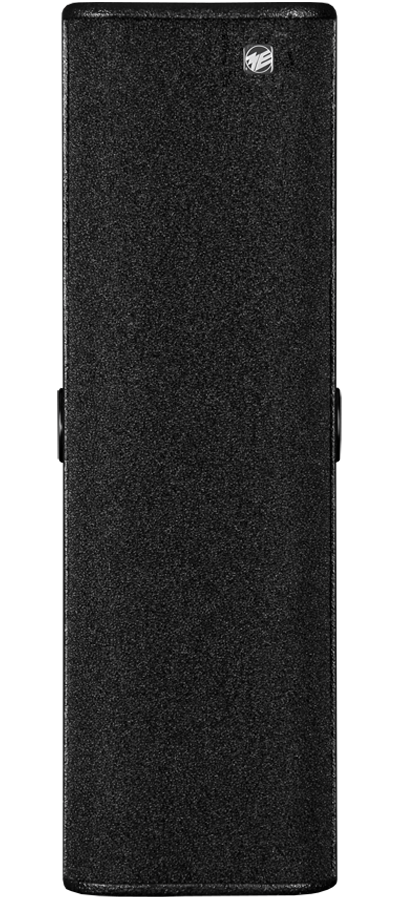

TS46KSP

Active coaxial loudspeaker with cardioid radiation characteristic
  • Maximum SPL:
    116 dB / r = 1 m
  • Dimensions H x W x D:
    443 x 136 x 172 mm
  • Weight:
    6,7 kg
  • Maximum output power:
    2x 250 Watt
  • Transducers:
  • LF:
    4x 4" cone
  • HF:
    8x 1" dome tweeter

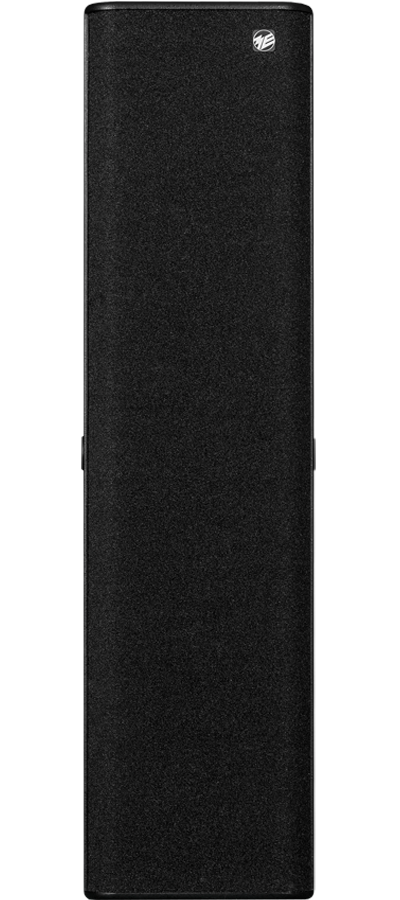

TS47K

Passive coaxial loudspeaker with cardioid radiation characteristic
  • Maximum SPL:
    126 dB / r = 1 m
  • Dimensions H x W x D:
    815 x 210 x 145 mm
  • Weight:
    17 kg
  • Maximum input power:
    960 Watt
  • Transducers:
  • LF:
    4x 6,5" cone
  • HF:
    16x 1" dome tweeter

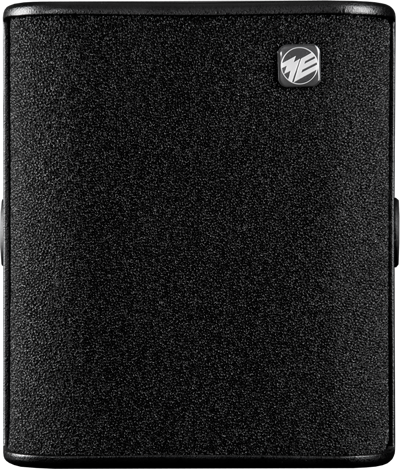

TS52 / TS52K

Passive coaxial loudspeaker in vented box or with cardioid radiation characteristic
  • Maximum SPL:
    116 dB / r = 1 m
  • Dimensions H x W x D:
    250 x 210 x 250 mm
  • Weight:
    5,5 kg
  • Maximum input power:
    240 Watt
  • Transducers:
  • LF:
    1x 6,5" cone
  • HF:
    4x 1" dome tweeter

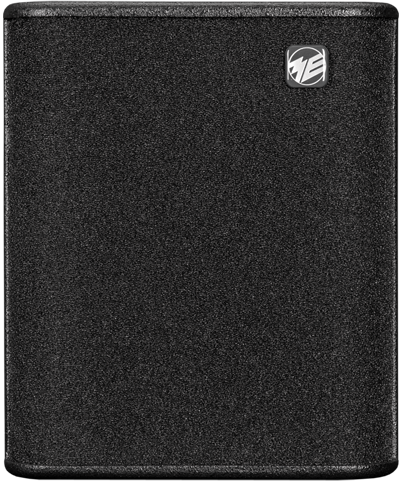

TS52SP

Active coaxial loudspeaker in vented box
  • Maximum SPL:
    116 dB / r = 1 m
  • Dimensions H x W x D:
    250 x 210 x 330 mm
  • Weight:
    8 kg
  • Maximum output power:
    2x 500 Watt
  • Transducers:
  • LF:
    1x 6,5" cone
  • HF:
    4x 1" dome tweeter

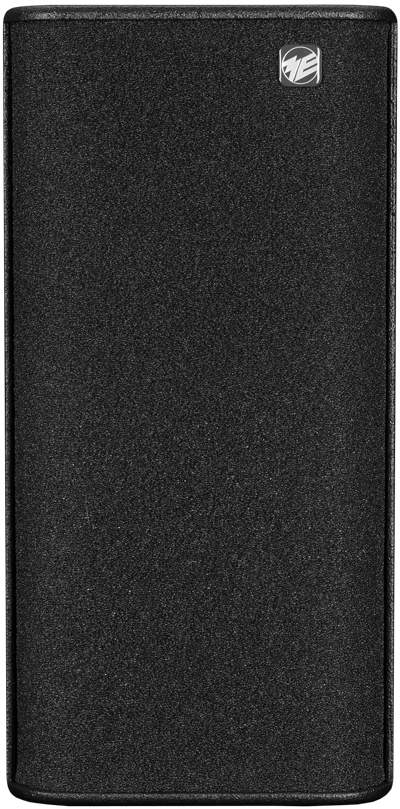

TS53KSP

Active coaxial loudspeaker with cardioid radiation characteristic
  • Maximum SPL:
    122 dB / r = 1 m
  • Dimensions H x W x D:
    424 x 210 x 330 mm
  • Weight:
    12,9 kg
  • Maximum output power:
    2× 500 W
  • Transducers:
  • LF:
    2× 6.5″ cone
  • HF:
    8× 1″ dome

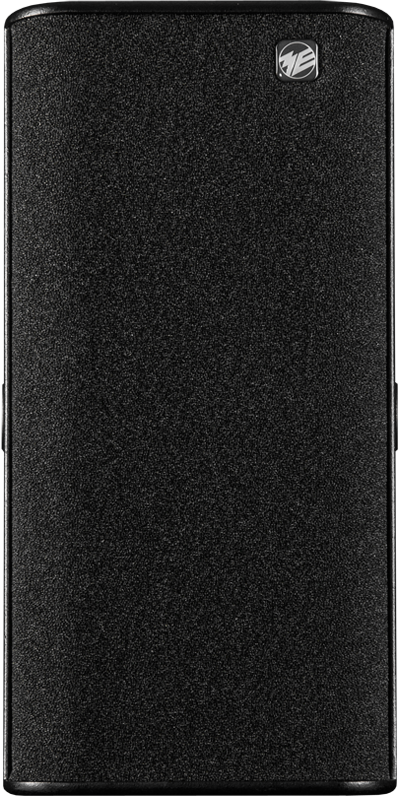

TS53K

Passive coaxial loudspeaker with cardioid radiation characteristic
  • Maximum SPL:
    122 dB / r = 1 m
  • Dimensions H x W x D:
    425 x 210 x 250 mm
  • Weight:
    10,2 kg
  • Maximum input power:
    480 Watt
  • Transducers:
  • LF:
    2x 6,5" cone
  • HF:
    8x 1" dome tweeter

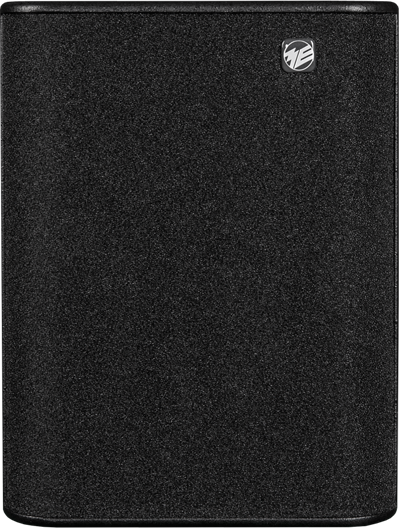

TS54

Passive coaxial loudspeaker in vented box
  • Maximum SPL:
    118 dB / r = 1 m
  • Dimensions H x W x D:
    350 x 265 x 340 mm
  • Maximum input power:
    400 Watt
  • Transducers:
  • LF:
    1x 8" cone
  • HF:
    6x 1" dome tweeter

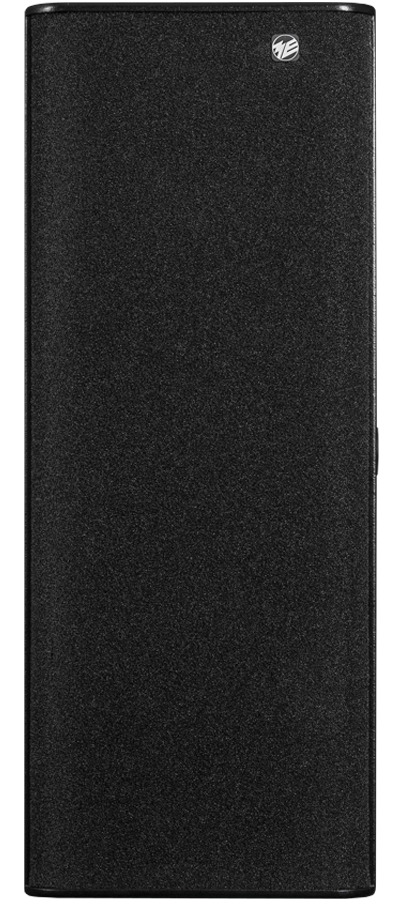

TS55 / TS55K

Passive coaxial loudspeaker in vented box or with cardioid radiation characteristic
  • Maximum SPL:
    124 dB / r = 1 m
  • Dimensions H x W x D:
    670 x 265 x 280 mm
  • Weight:
    15,3 kg
  • Maximum input power:
    800 Watt
  • Transducers:
  • LF:
    2x 8" cone
  • HF:
    12x 1" dome tweeter

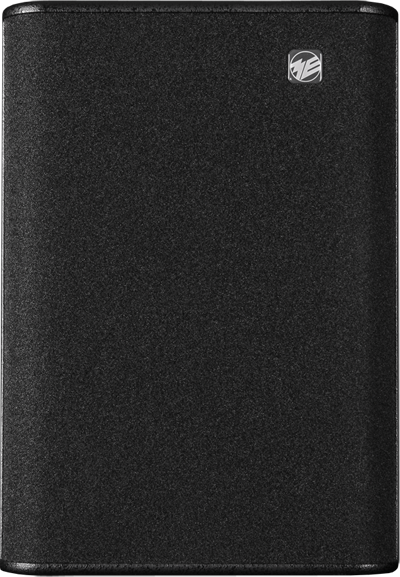

TS56

Passive coaxial loudspeaker in vented box
  • Maximum SPL:
    124 dB / r = 1 m
  • Dimensions H x W x D:
    455 x 320 x 360 mm
  • Weight:
    12 kg
  • Maximum input power:
    600 Watt
  • Transducers:
  • LF:
    1x 10" cone
  • HF:
    8x 1" dome tweeter

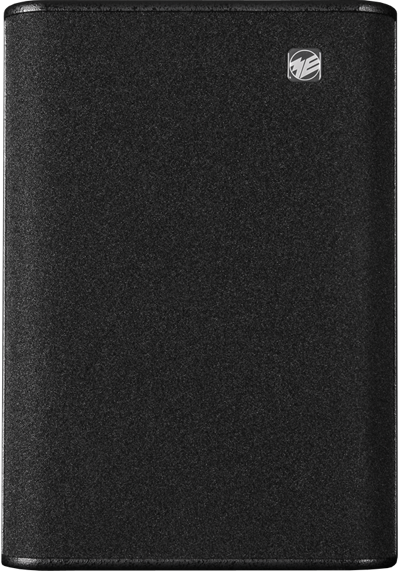

TS56SP / TS56KSP

Active coaxial loudspeaker in vented box or with cardioid radiation characteristic
  • Maximum SPL:
    124 dB / r = 1 m
  • Dimensions H x W x D:
    455 x 320 x 390 mm
  • Weight:
    15 kg
  • Maximum output power:
    2x 450 Watt
  • Transducers:
  • LF:
    1x 10" cone
  • HF:
    8x 1" dome tweeter
