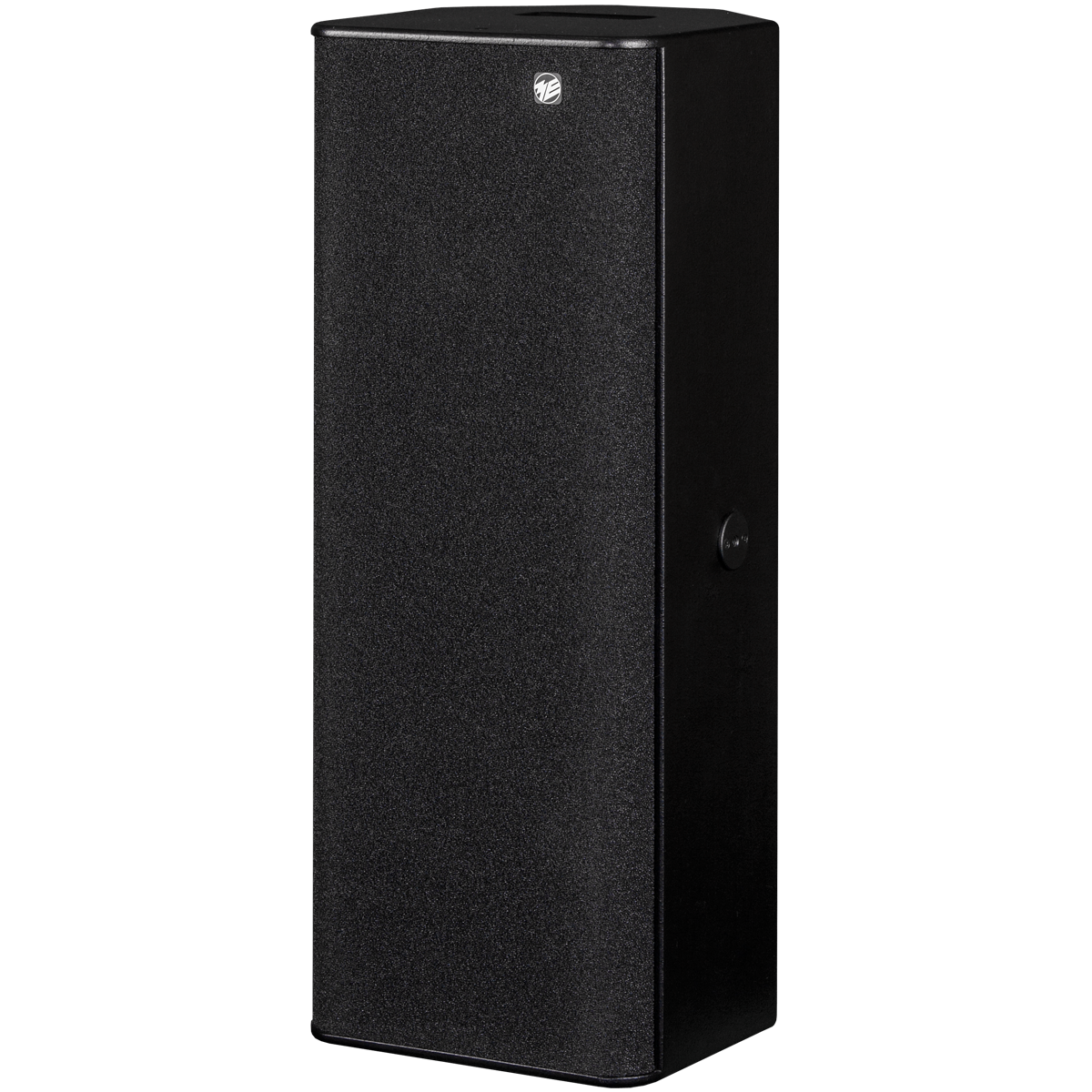

TS35 / TS35K

Passive inline loudspeaker in vented box or with cardioid radiation characteristic

The TS30 series cover classic sound reinforcement systems in inline technology. High dynamics and limiting level are achieved by special compression drivers with horns. Therefore these products are compatible to existing installations. A technical feature available is our reliable bass cardioid technology. So even in acoustically difficult environments the products of the TS30 series are easy to handle.

TS35 / TS35K

The TS30 series cover classic sound reinforcement systems in inline technology. High dynamics and limiting level are achieved by special compression drivers with horns. Therefore these products are compatible to existing installations. A technical feature available is our reliable bass cardioid technology. So even in acoustically difficult environments the products of the TS30 series are easy to handle.

The two-way sound reinforcement systems TS35 and TS35K feature linearity and high dynamics. As an all-round system they are useful for speech and music reproduction in middle sized auditoria. In addition they remain optically discrete because of their small dimensions. During the development the high frequency sound transmission was optimised for smallest possible colouration.

The components include two 8-inch cone woofers and one 1-inch compression driver. The latter are effectively secured from destruction by an internal protective circuit. The bass reflex version TS35 reaches a lower cut-off frequency of 70 Hz. The resulting bass level enables the use as a full-range system in many situations. Optionally our TT-subwoofers can be employed to extend the bass transmission range by more than one octave.

A variety of available mountings provide easy assembly for almost every application.

cabinet type

TS35
vented cabinet
TS35K
cardioid directivity in low frequencies

maximum SPL

124 dB peak / r = 1 m (3.3 ft)

frequency response

TS35
70 Hz ... 18 kHz -6 dB
TS35K
100 Hz ... 18 kHz -6 dB

sensitivity
messured at 1 W


95 dB / r = 1 m (3.3 ft)

coverage angle f > 2 kHz

90° x 40° or 60° x 40° (h x v)

maximum input power

800 watt

nominal input power

400 watt

nominal impedance

8 ohm

Crossover frequency

1.9 kHz

directivity index
from 100 Hz ... 10 kHz


see diagram

input connector

2x Speakon NL4 (parallel)

transducers

LF
2x 8" cone
HF
1x 1" compression driver

overload protection

self-resetting

mechanical dimensions w x h x d

265 x 670 x 280 mm (10.43 x 26.38 x 11.02 inch)

weight

17 kg (37.5 lbs)

design of the cabinet

lumber-core plywood with scratch proof structure coating
black RAL9005 / other colors optional

additional accessories (optional)

security lug
stand, wall and ceiling mount elements
