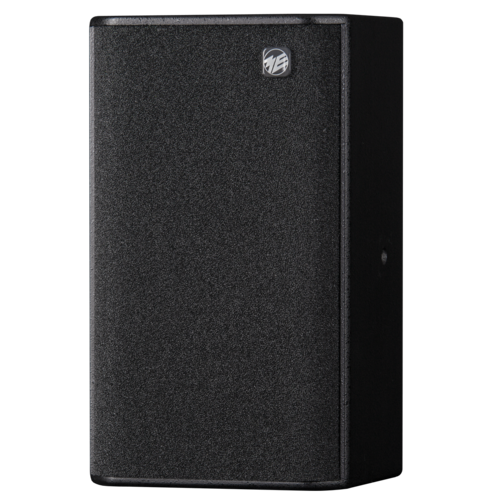

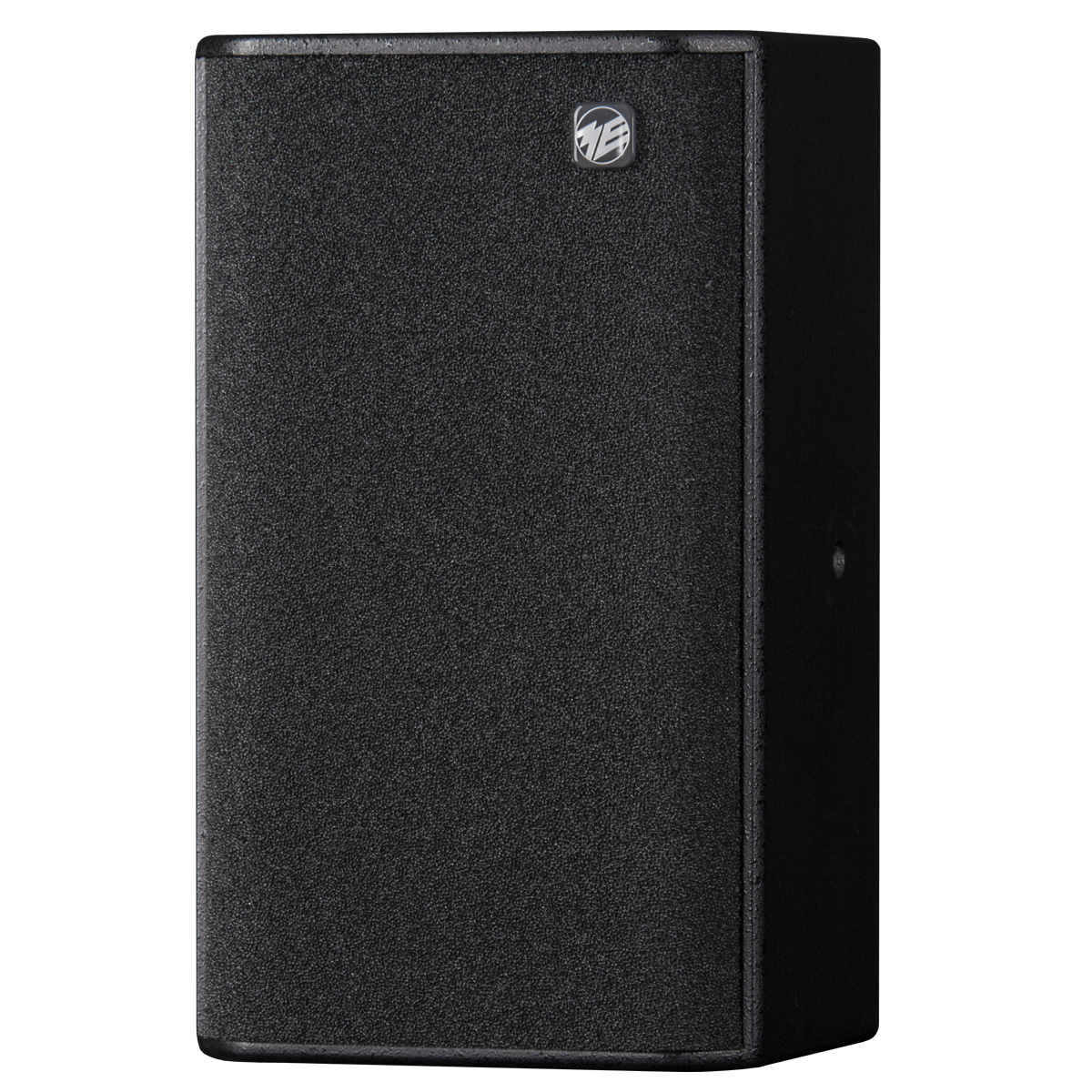

TS32 / TS32K

Passive inline loudspeaker in vented box or with cardioid radiation characteristic

The TS30 series cover classic sound reinforcement systems in inline technology. High dynamics and limiting level are achieved by special compression drivers with horns. Therefore these products are compatible to existing installations. A technical feature available is our reliable bass cardioid technology. So even in acoustically difficult environments the products of the TS30 series are easy to handle.

TS32 / TS32K

The TS30 series cover classic sound reinforcement systems in inline technology. High dynamics and limiting level are achieved by special compression drivers with horns. Therefore these products are compatible to existing installations. A technical feature available is our reliable bass cardioid technology. So even in acoustically difficult environments the products of the TS30 series are easy to handle.

The two-way sound reinforcement systems TS32 and TS32K feature a compact cabinet and high dynamics. As an all-round system they are useful for speech and music reproduction in small and middle sized auditoria. In addition they remain optically discrete because of their small dimensions. During the development the high frequency sound transmission was optimised for smallest possible colouration.

The components include one 6.5-inch cone woofer and one 1-inch compression driver. Both are effectively secured from destruction by an internal protective circuit. Optionally our TT-subwoofers can be employed to extend the bass transmission range by more than one octave.

A variety of available mountings provide easy assembly for almost every application.

cabinet type

TS32
vented cabinet
TS32K
cardioid directivity in low frequencies

maximum SPL

118 dB peak / r = 1 m (3.3 ft)

frequency response

TS32
85 Hz ... 18 kHz -6 dB
TS32K
125 Hz ... 18 kHz -6 dB

sensitivity
messured at 1 W


92 dB / r = 1 m (3.3 ft)

coverage angle f > 2 kHz

80° x 50° (h x v)

maximum input power

250 watt

nominal input power

125 watt

nominal impedance

8 ohm
optional 100 V (100 / 200 / 400 ohm switchable)

Crossover frequency

2.5 kHz

directivity index
from 100 Hz ... 10 kHz


see diagram

input connector

2x Speakon NL4 (parallel)
optional 2x XLR4 (at 100 V)

transducers

LF
1x 6.5" cone
HF
1x 1" compression driver

overload protection

self-resetting

mechanical dimensions w x h x d

210 x 360 x 252 mm (8.27 x 14.17 x 9.92 inch)

weight

without 100 V transformer (standard)
9 kg (19.8 lbs)
with 100 V transformer (optional)
9.8 kg (21.6 lbs)

design of the cabinet

umber-core plywood with scratch proof structure coating
black RAL9005 / other colors optional

additional accessories (optional)

security lug
stand, wall and ceiling mount elements
