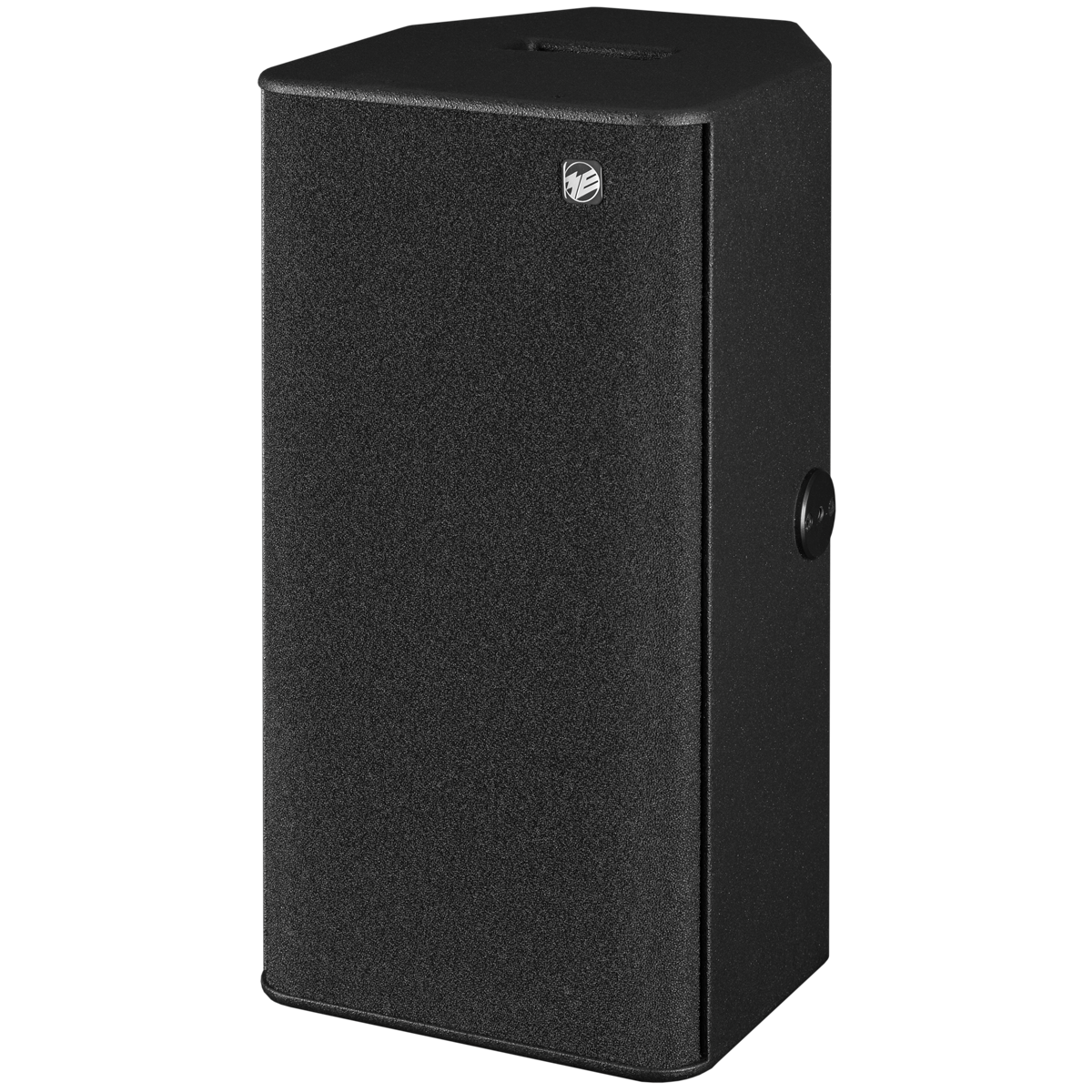

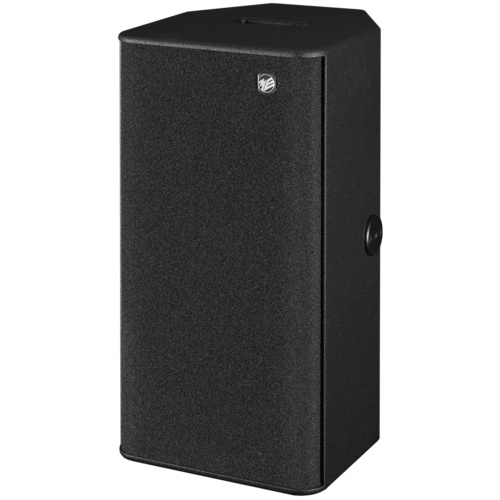

TS36SP / TS36KSP

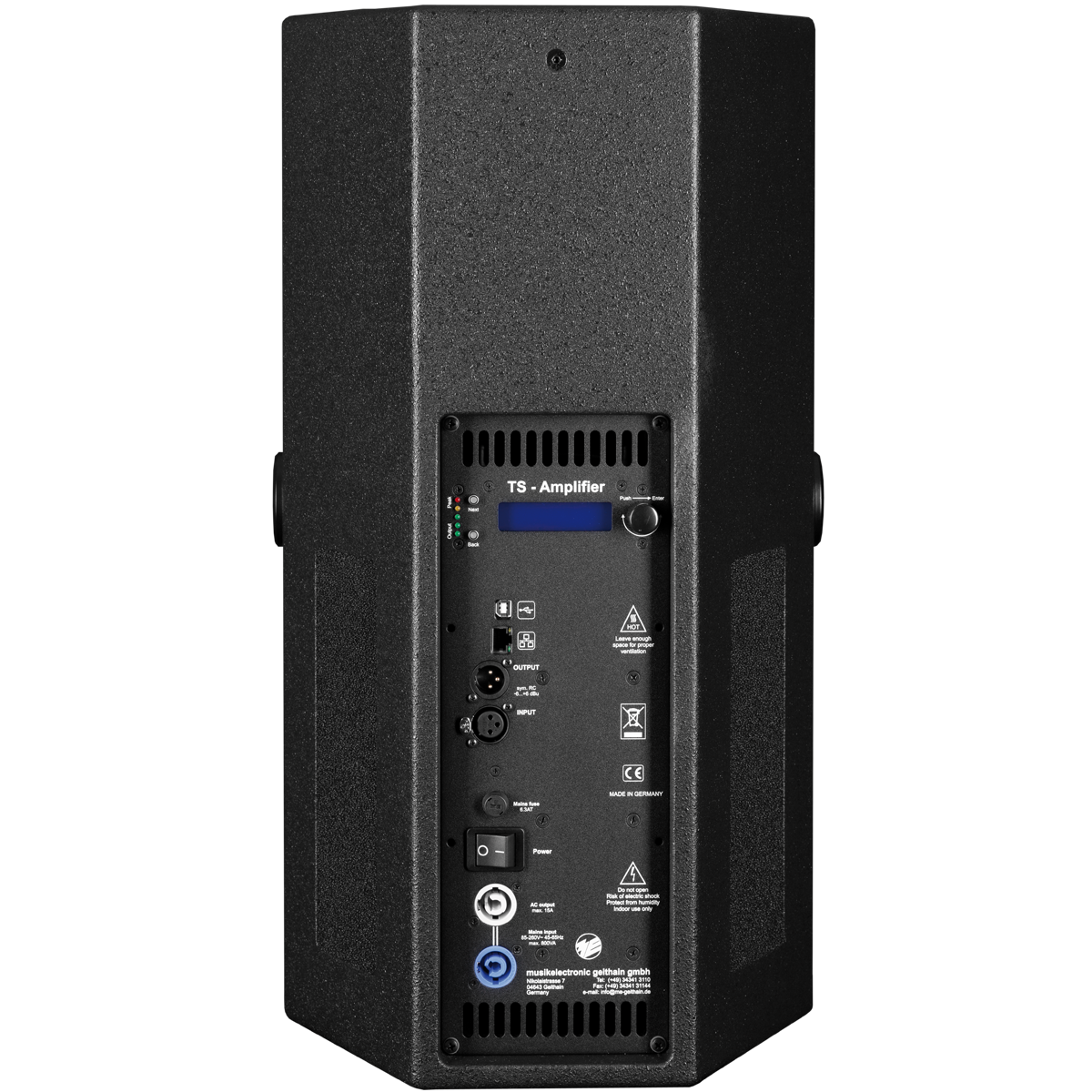

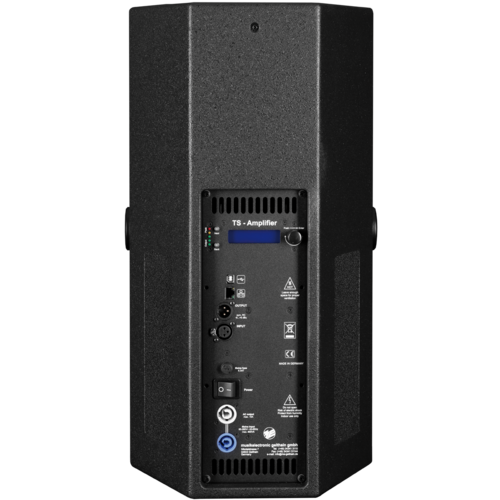

The active two-way reinforcement systems TS36SP and TS36KSP feature linearity and high dynamics. As an all-round system they are useful for speech and music reproduction in middle and large sized auditoria and are the right decision when systems with high levels are needed. The active concept allows flexible adjustments to acoustical conditions and guarantees a perfect combination of speakers and amplifiers. Thanks to pre-programmed presets a combination of our active subwoofers and speakers saves the time to configure a loudspeaker management system and immediately offers a perfectly adjusted system.

The components include one 10-inch cone woofer and one 1.4-inch compression driver. Both are effectively secured from destruction by an internal limiter. During development the high frequency sound transmission was optimised for smallest possible colouration. The bass reflex version TS36SP reaches a lower cut-off frequency of 80 Hz. The resulting bass level enables the use as a full-range system in many situations. Optionally our TT-subwoofers can be employed to extend the bass transmission range more than one octave. The waveguide of the horn driver is available in two opening angles and is also mountable rotated through 90°. So the speaker becomes flexibly usable and is as well variable regarding the mounting position.

A variety of available mountings provide easy assembly for almost every application.
