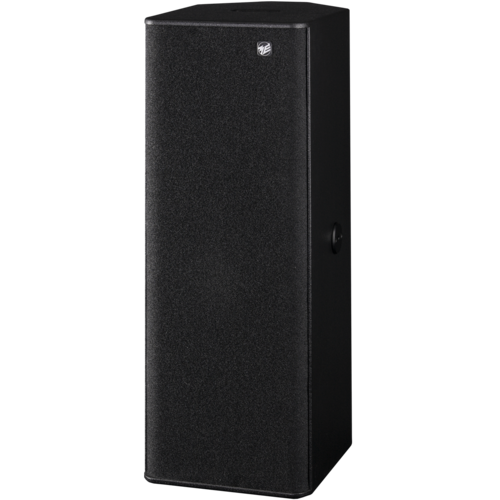

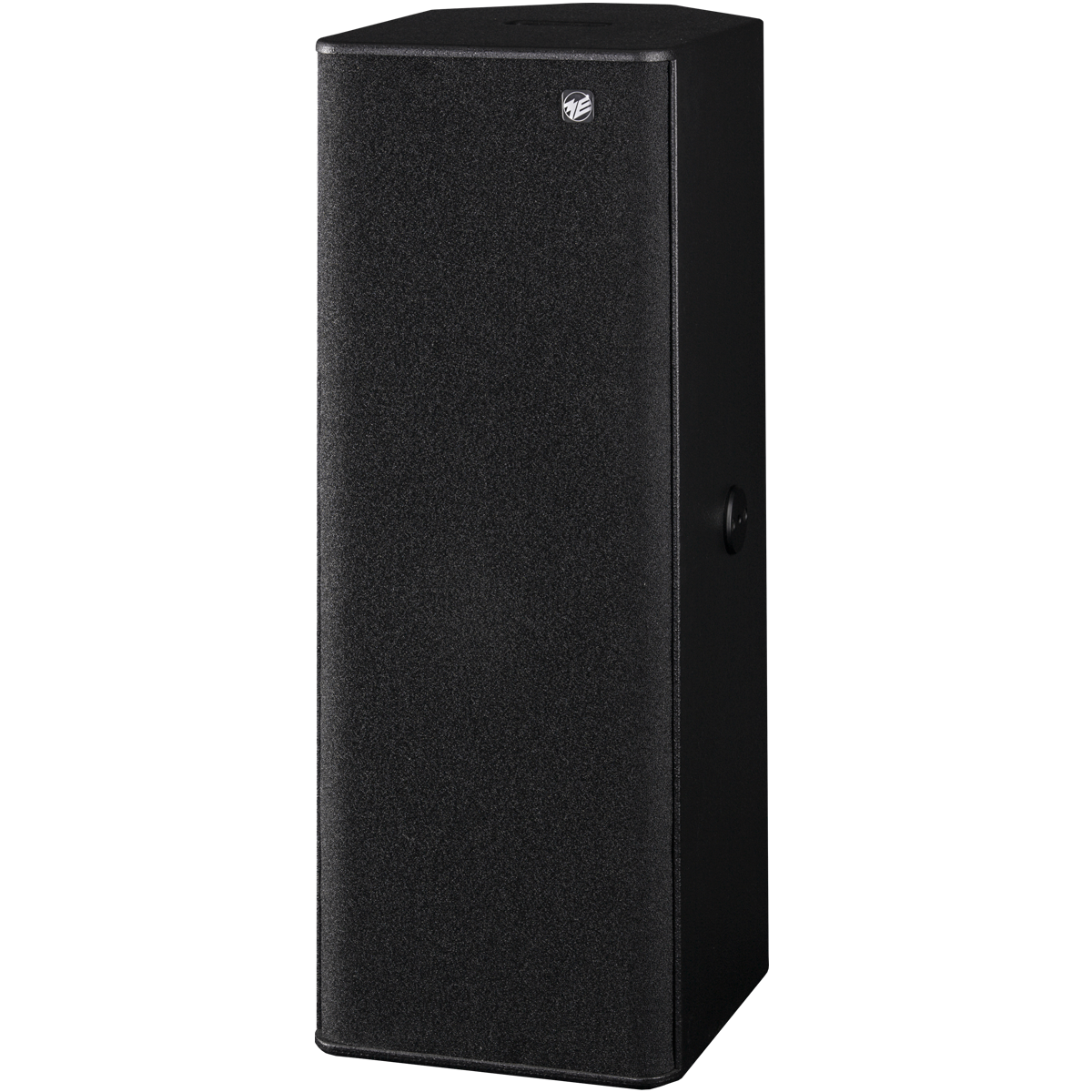

TS37 / TS37K

Passive inline loudspeaker in vented box or with cardioid radiation characteristic

The TS30 series cover classic sound reinforcement systems in inline technology. High dynamics and limiting level are achieved by special compression drivers with horns. Therefore these products are compatible to existing installations. A technical feature available is our reliable bass cardioid technology. So even in acoustically difficult environments the products of the TS30 series are easy to handle.

TS37 / TS37K

The TS30 series cover classic sound reinforcement systems in inline technology. High dynamics and limiting level are achieved by special compression drivers with horns. Therefore these products are compatible to existing installations. A technical feature available is our reliable bass cardioid technology. So even in acoustically difficult environments the products of the TS30 series are easy to handle.

The two-way sound reinforcement systems TS37 and TS37K feature linearity and high dynamics. As an all-round system they are useful for speech and music reproduction in middle and large sized auditoria and they are the right decision when systems with high levels are needed.

The components include two 10-inch cone woofers and one 1.4-inch compression driver. The latter is effectively secured from destruction by an internal protective circuit. During the development the high frequency sound transmission was optimised for smallest possible colouration. The bass reflex version TS37 reaches a lower cut-off frequency of 65 Hz. The resulting bass level enables the use as a full-range system in many situations. Optionally our TT-subwoofers can be employed to extend the bass transmission range by more than one octave.

A variety of available mountings provide easy assembly for almost every application.

cabinet type

TS37
vented cabinet
TS37K
cardioid directivity in low frequencies

maximum SPL

130 dB peak / r = 1 m (3.3 ft)

frequency response

TS37
65 Hz ... 18 kHz -6 dB
TS37K
100 Hz ... 18 kHz -6 dB

sensitivity
messured at 1 W


100 dB / r = 1 m (3.3 ft)

coverage angle f > 2 kHz

90° x 40° or 60° x 40° (h x v)

maximum input power

1200 watt

nominal input power

600 watt

nominal impedance

8 ohm

Crossover frequency

1.5 kHz

directivity index
from 100 Hz ... 10 kHz


see diagram

input connector

2x Speakon NL4 (parallel)

transducers

LF
2x 10" cone
HF
1x 1.4" compression driver

overload protection

self-resetting

mechanical dimensions w x h x d

320 x 840 x 430 mm (12.6 x 33.07 x 16.93 inch)

weight

27 kg (59.5 lbs)

design of the cabinet

lumber-core plywood with scratch proof structure coating
black RAL9005 / other colors optional

additional accessories (optional)

security lug
stand, wall and ceiling mount elements
