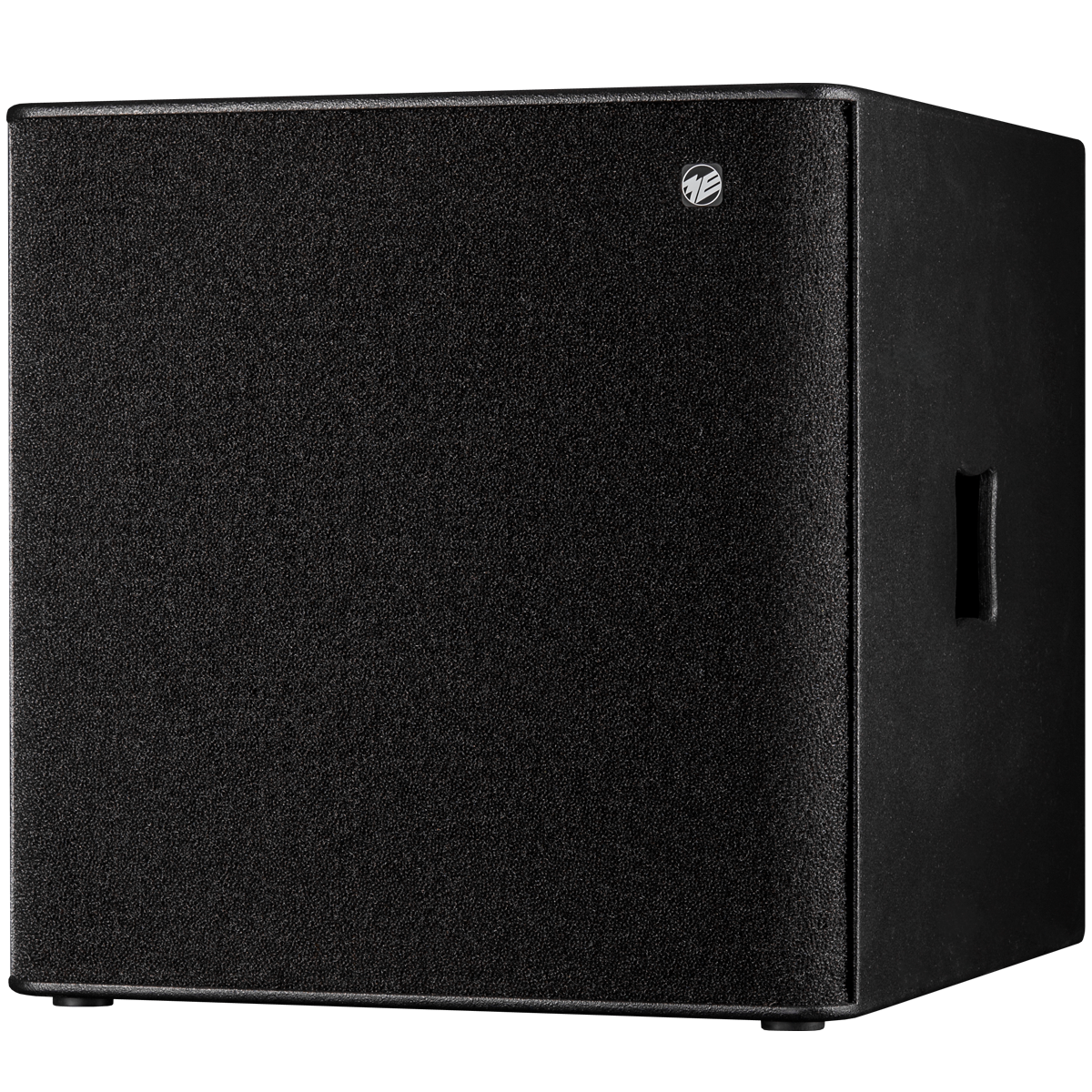

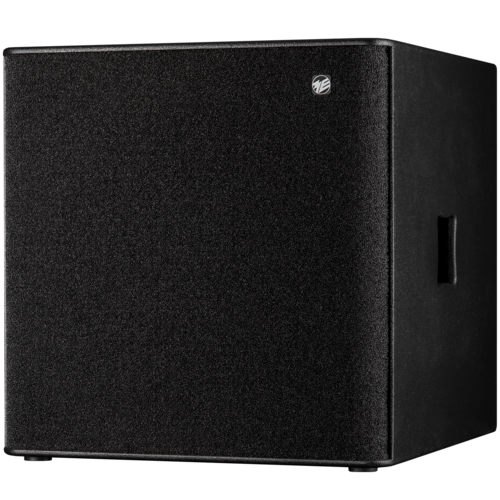

TT15

Passive subwoofer in vented cabinet

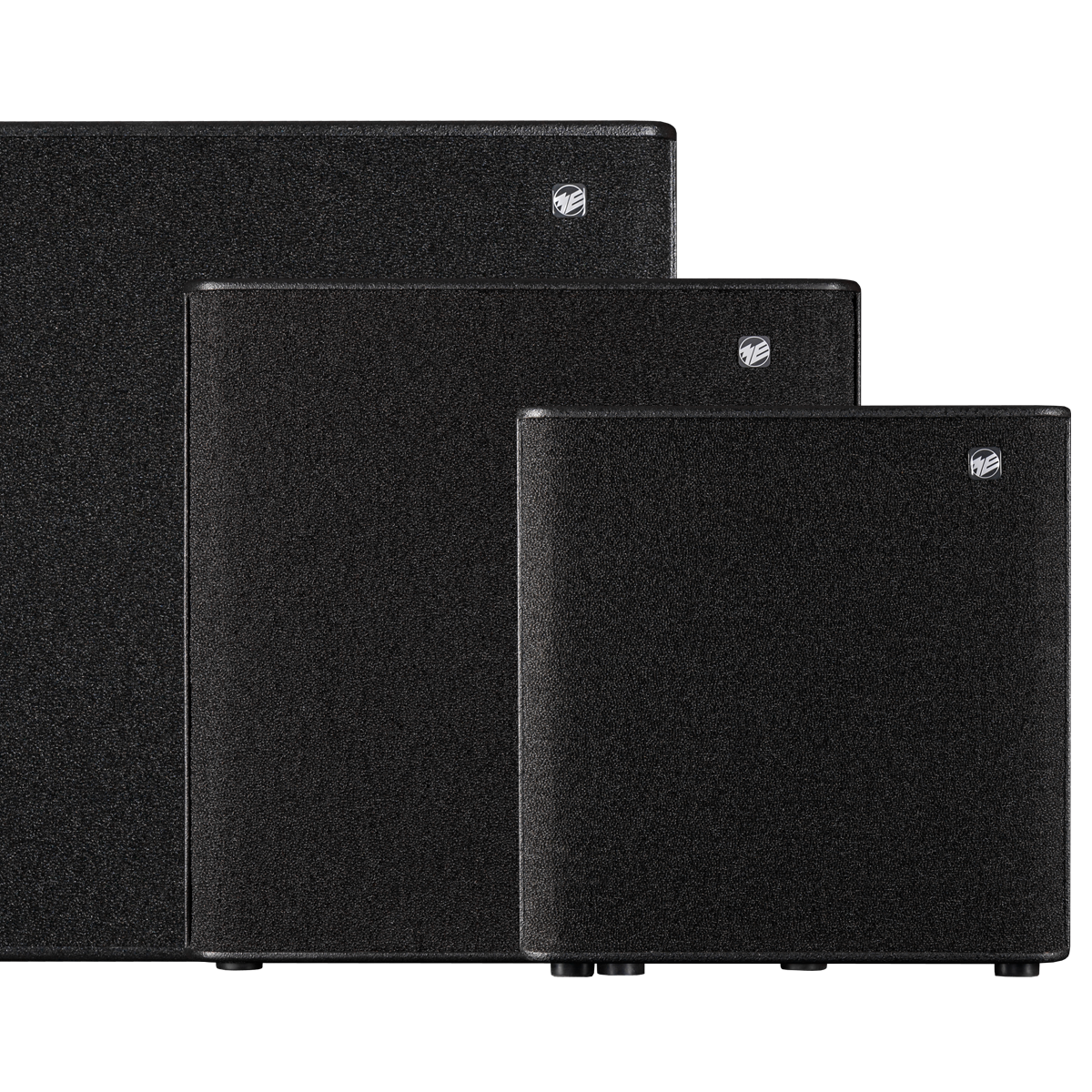

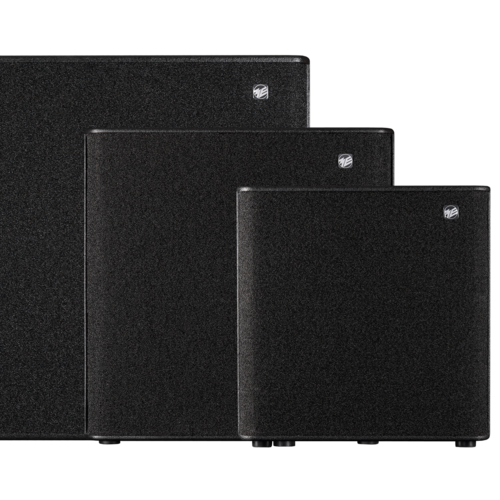

The bass reinforcement systems TT12, TT15 and TT18K extend the bass transmission range of our TS-series speakers by more than one octave. Depending on the case of application and the required maximum level three different version are offered.

TT15

The bass reinforcement systems TT12, TT15 and TT18K extend the bass transmission range of our TS-series speakers by more than one octave. Depending on the case of application and the required maximum level three different version are offered. Beginning with compact 12 and 15-inch bass reflex systems to the high power subwoofer with 18-inch long throw driver and cardioid technology harmonise technically and optically with our mid top cabinets from the TS-series. These systems feature high dynamics and low distortion.

Besides the technical advantages of the subwoofers from ME Geithain all equipment share a robust cabinet from ply hardwood, impact-resistant coating on polyurethane base, pocket handles and a top hat fitting for the attachment of an adjustable pole. The front is secured against damages optically neutral with a perforated steel grille fronted by acoustic foam.

cabinet type

TT12
vented cabinet
TT15
vented cabinet
TT18K
cardioid directivity

maximum SPL

TT12
124 dB peak / r = 1 m (3.3 ft)
TT15
127 dB peak / r = 1 m (3.3 ft)
TT18K
130 dB peak / r = 1 m (3.3 ft)

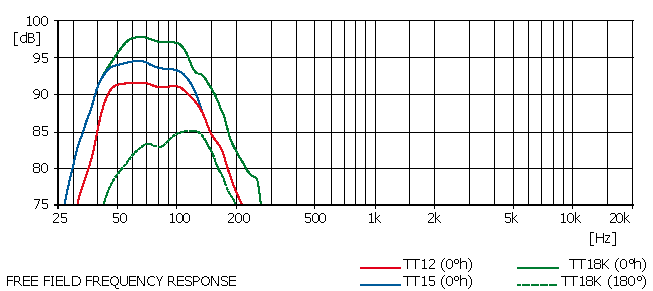

frequency response

40 Hz ... 180 Hz -6 dB with controller

sensitivity messured at 1 W

TT12
91 dB / r = 1 m (3.3 ft)
TT15
94 dB / r = 1 m (3.3 ft)
TT18K
97 dB / r = 1 m (3.3 ft)

maximal input power

TT12
1600 watt
TT15
1600 watt
TT18K
2000 watt

nominal input power

TT12
800 watt
TT15
800 watt
TT18K
1000 watt

nominal impedance

8 ohm

input connector

2x Speakon NL4 (parallel)

transducers

TT12
12" cone
TT15
15" cone
TT18K
18" cone

weight

TT12
32 kg (70.4 lbs)
TT15
37 kg (81.4 lbs)
TT18K
47 kg (103.4 lbs)

design of the cabinet

lumber-core plywood with scratch proof structure coating
black RAL9005 / other colors optional
integrated connector plate for speaker stands with M20 thread
