TS11

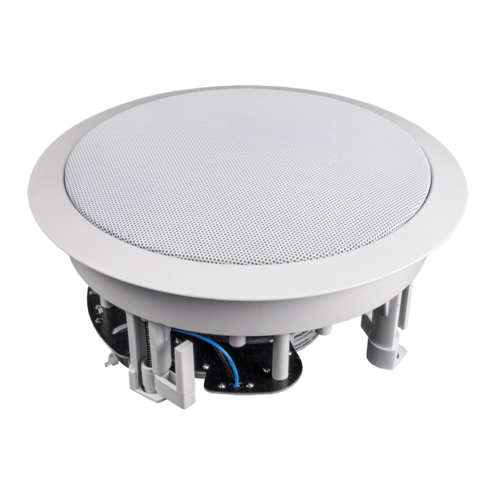

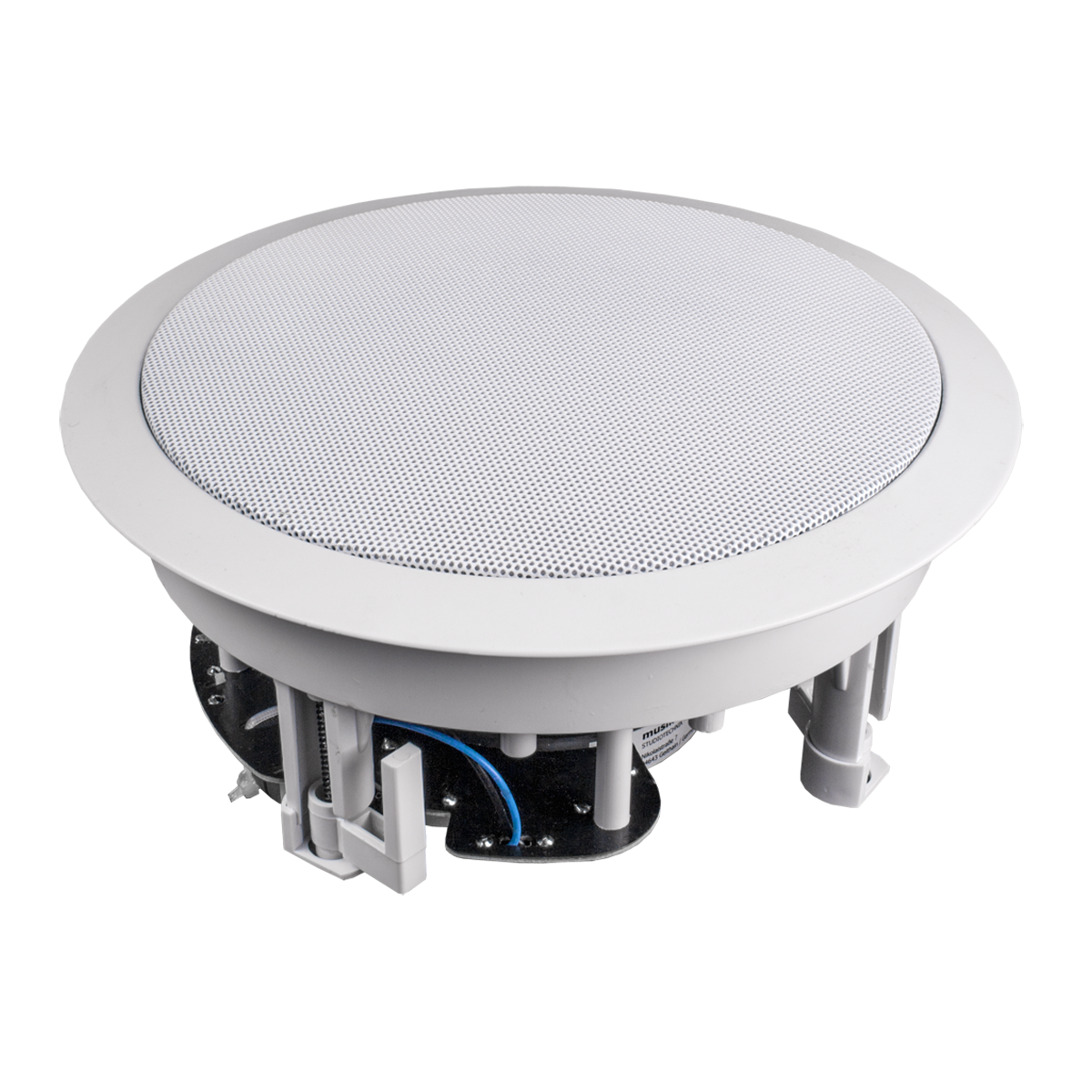

Passive coaxial ceiling and wall loudspeaker

The two-way speaker TS11 is a premium, coaxial ceiling installation system with all-round quality. It is useful everywhere, where a discrete and optically inconspicuous sound reinforcement is needed. The advantage is the ability to cover large rooms in segments and with different volumes. The swivelling tweeter allows precise tuning to the reproduction space and additional flexibility when choosing the mounting position.

TS11

The two-way speaker TS11 is a premium, coaxial ceiling installation system with all-round quality. It is useful everywhere, where a discrete and optically inconspicuous sound reinforcement is needed. The advantage is the ability to cover large rooms in segments and with different volumes. The swivelling tweeter allows precise tuning to the reproduction space and additional flexibility when choosing the mounting position.

The components include one 6.5-inch cone woofer and one 1-inch dome tweeter. There is an installation cabinet available for acoustically transparent ceilings. A 100 V line version is offered as well and therefore fits also greater house installations. With the convenient fast assembly braces installation is easy and quick. Because of the acoustically neutral cover the ceiling system almost disappears optically.

cabinet type

ceiling mount for acoustical transparent ceilings
closed enclosure optional

maximum SPL

105 dB peak / r = 1 m (3.3 ft)

frequency response

70 Hz ... 20 kHz - 6 dB at Vb = 10 l

sensitivity
messured at 1 W


87 dB / r = 1 m (3.3 ft)

coverage angle f > 4 kHz

90°

maximum input power

100 watt at Vb = 10 l

nominal input power

50 watt at Vb= 10 l

nominal impedance

16 ohm
optional 100 V (200 / 400 / 800 ohm switchable)

crossover frequency

3 kHz

directivity index
from 100 Hz ... 10 kHz


see diagram

input connector

loudspeaker clamp

transducers

LF
1x 6.5" cone
HF
1x 1" dome tweeter

outer diameter

230 mm (9.05 inch)

installation space diameter

200 mm (7.87 inch)

installation height

without 100 V transformer (standard)
100 mm (3.94 inch)
with 100 V transformer (optional)
140 mm (5.51 inch)

installation panel thickness

10 mm ... 40 mm (0.39 inch ... 1.57 inch)

weight

without 100 V transformer (standard)
1.2 kg (2.6 lbs)
with 100 V transformer (optional)
2.7 kg (5.85 lbs)

material of mounting ring

ABS Plast RAL 9010, other colors optional

Zusatzgehäuse

  • für akustisch transparente Decken
  • Abmessungen: 300 mm x 300 mm x 160 mm

Brochure and operation manual

Brochure
Operation manual
