RL-Amplifier

3-way rack amplifier

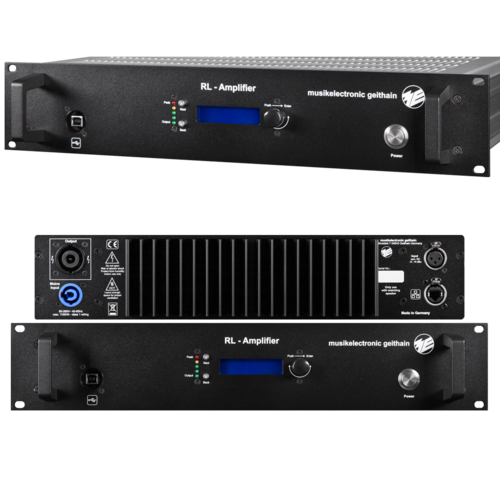

The RL-Amplifier is a device especially designed as a separate 19 inch rack amplifier for all 3 way studiomonitors from Musikelectronic Geithain GmbH.

RL-Amplifier

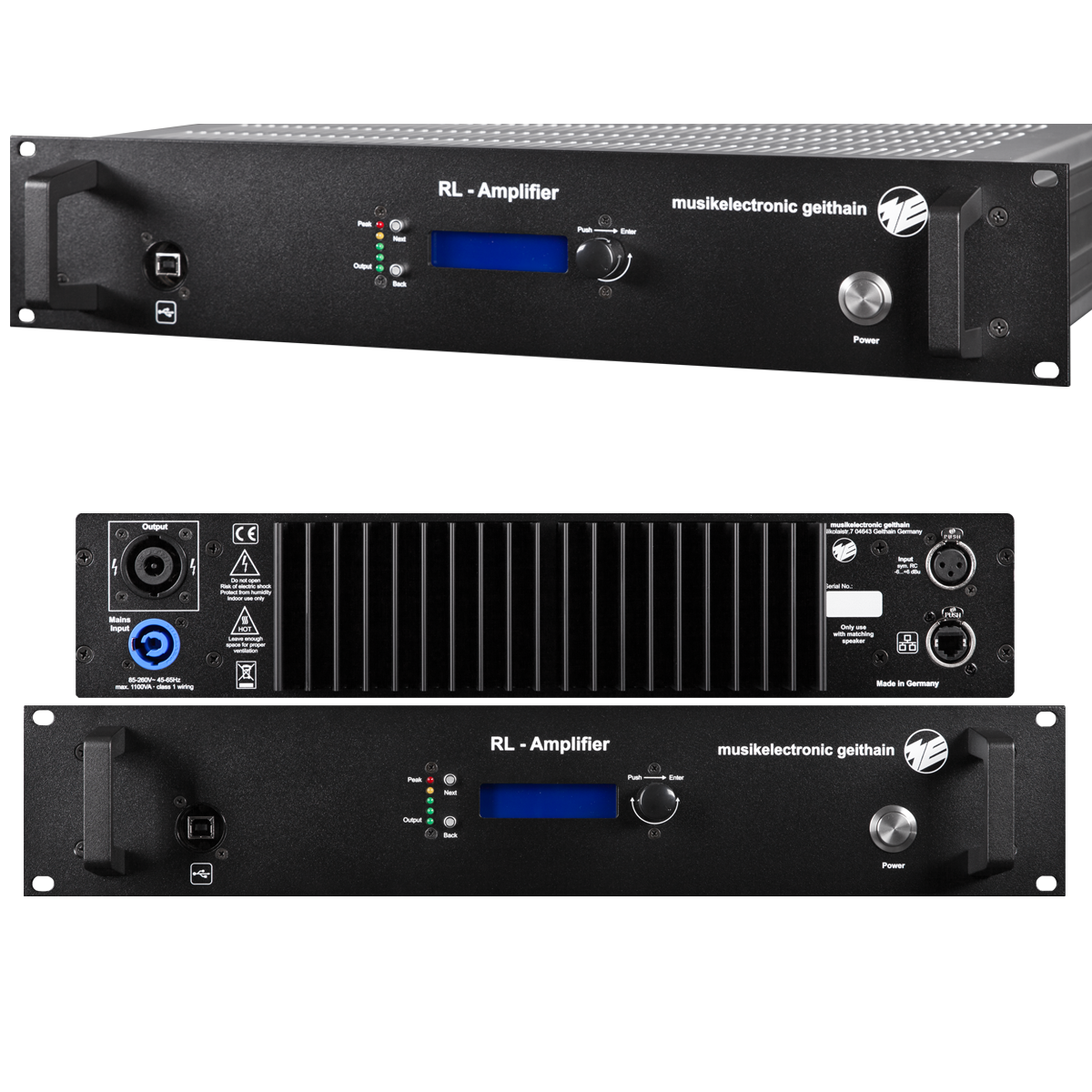

The RL-Amplifier is a device especially designed as a separate 19 inch rack amplifier for all 3 way studiomonitors from Musikelectronic Geithain GmbH. The amplifier has PWM power amplifiers to allow operation with convection cooling in a compact 19 inch housing/case. It offers technical protective measures to ensure safe operation of the attached loudspeaker.

nominal input level

+ 6 dBu

maximum input level

+ 22 dBu

output power limited to

LF
650 W (loudspeaker dependent limiting)
MF
200 W (loudspeaker dependent limiting)
HF
200 W (loudspeaker dependent limiting)

Inherent noise sound level with attached loudspeaker

P < 7 dB(A) / r = 1 m (3.3 ft)

Status indication at loudspeaker

LED red

Status indication at amplifier

display blue

Level indicator

green LED chain at amplifier / limiting red

Operating voltage

85 - 265 V 50 / 60 Hz

Power consumption

max. 1100 VA / max. 12 A

Mains connector

Neutrik Powercon NAC3 MPA-1

Protection class

Protection class 1

Input connector

analogue XLR3-F or optional XLR3-F AES EBU

Output connector

Neutrik Speakon NL8 MPR

Dimensions (B x T x H)

44 cm (faceplate 48.5 cm) x 29 cm x 9 cm (2 U)
17.3 in (faceplate 19.1 in) x 11.4 in x 3.5 in (2 U)

Weight

7.3 kg (16.1 lbs)

Temperature requirement

for use
+ 15 °C ... + 35 °C
for storage
- 25 °C ... + 45 °C
humidity
45 % ... 75 %

EMV conformity

EN55103-1 Emission Class A
EN55103-2 Immunity
