RL 944K

3-way-coaxial-loudspeaker with cardioid characteristic in bass range

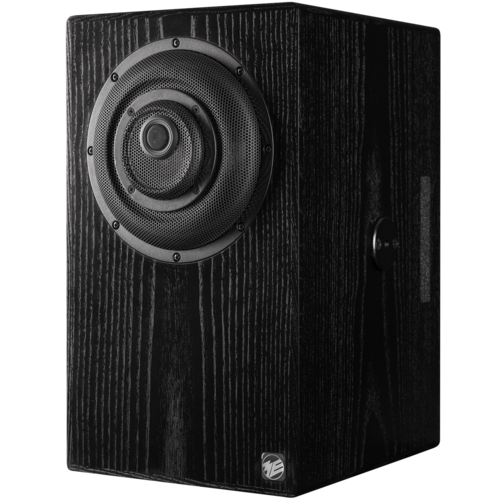

The RL944K is a specialist for small rooms and short listening distances. So it is designed for both the professional user in the outside broadcasting van, small audio, video and film studios and for the discerning music enthusiast, who is not willing to make a compromise in a small living room.

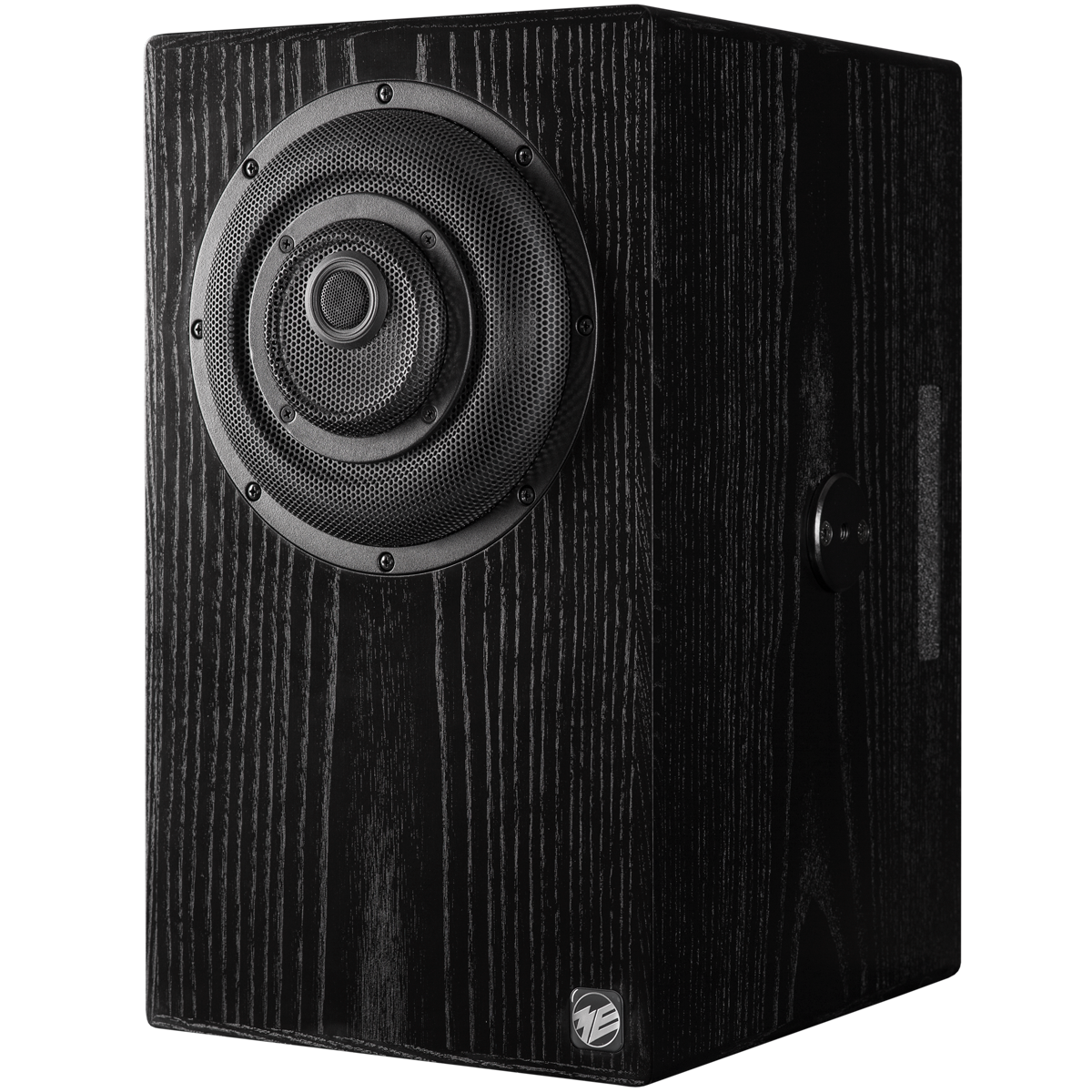

(shown veneer: ash black RAL9005)

RL 944K

The RL944K is a specialist for small rooms and short listening distances. So it is designed for both the professional user in the outside broadcasting van, small audio, video and film studios and for the discerning music enthusiast, who is not willing to make a compromise in a small living room.

By the cardioid radiation characteristics within the frequency range from 35 through 250 Hz the reflections on the back walls behind the speaker can be minimised. In addition the transfer characteristic can be matched to the acoustical conditions of the reproduction room as well as to the set-up situation by an integrated room matching filter.

The total directivity index of the monitor was optimised for listening distances between 1 and 2.60 m (3.3 and 8.6 ft). As the bass system a very linear 200 mm (8’’) long throw driver in a cardioid cabinet is employed, delivering excellent impulse fidelity. Due to the special construction a low frequency reproduction is possible that is not expected from such a small cabinet. Therefore the RL944K is a real full-range speaker and in an outside broadcasting van an additional subwoofer can be spared. The 100 mm (4’’) cone is mounted together with the 19 mm (3/4’’) dome tweeter coaxially in front of the bass system allowing a precise steering of the focal perspective. As a result a realistic and steady spatial performance of the sound image around the listening position is achieved, with high homogeneity and smallest possible colouration. By the great consequent optimisation for short listening distances the RL944K allows realistic depth arrangement even in outside broadcasting vans and facilitates correct miking. Therefore the RL944K is a precision studio tool allowing fatigue free working for hours.

The three-channel MOSFET power amplifier with electronic crossover is integrated within the back wall of the cabinet and is hinged for service purposes. An intermittent LED lighting signals when the overload limit is reached. After crossing of the maximum level the output level will be reduced by 20 dB to avoid any overloading of the components.

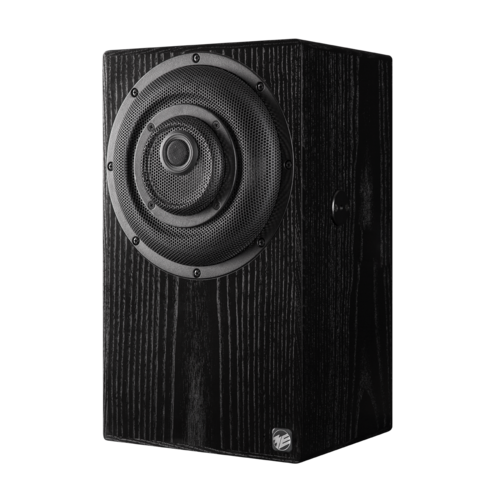

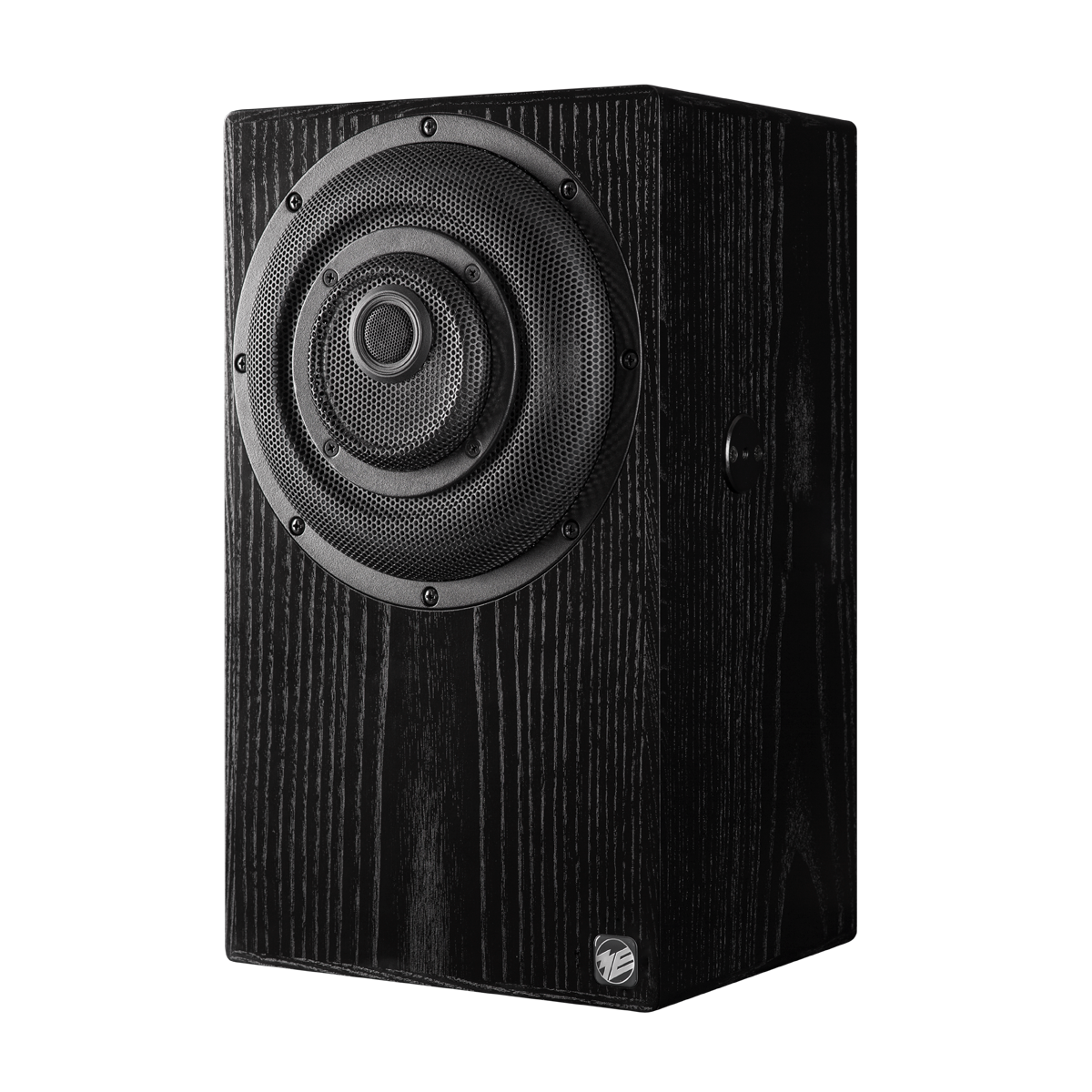

The RL944K1 is a more compact cabinet variant of the RL944K, that is employed when not enough room is available. Be it a video wall or an outside broadcasting van. As an alternative to the standardly provided MOSFET amplifier in an upright standing enclosure the 19’’ compatible Class D amplifier RL-Amplifier is also available.

A variety of special stands and racks is available as accessories. According fixing elements have been integrated into the loudspeaker cabinet.

General

Active 3-way coaxial loudspeaker for listening distances between 1 m and 2.60 m (3.3 ft and 8.6 ft)

Maximum SPL
from 100 Hz ... 6 kHz


110 ... 113 dB / r = 1 m (3.3 ft)

Bandwidth

35 Hz ... 20 kHz ± 3 dB

Calibration:
Acoustic output level / PE = - 14 dBu


89 dB / r = 1 m (3.3 ft)

Directivity Index
from 100 Hz ... 10 kHz


Increasing from 2 to 10 dB

Inherent noise sound level

≤ 7 dB (A) / r = 1 m (3.3 ft)

Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz



≤ - 40 dB

Nominal input level

+ 6 dBu adjustable

Input impedance

≥ 10 kOhm RC balanced

Electronic crossover frequencies

800 Hz and 3.8 kHz

Nominal output power amplifier

LF
180 W / 4 Ohm
MF
100 W / 4 Ohm
HF
100 W / 4 Ohm

Input connector

XLR 3F

Loudspeaker systems

Woofer
200 mm (8") cone
Mid-range unit
100 mm (4") cone
Tweeter
19 mm (3/4") dome

Operation and clipping indicator

LED on front side

Power requirements

230 V ~ ± 10 %; 50 ... 60 Hz
115 V ~ ± 10 %; 50 ... 60 Hz (optional)
100 V ~ ± 10 %; 50 ... 60 Hz (optional)

Power consumption

Max. 300 VA at full load

Mains connection

IEC power connector

Temperature requirements

for use
+ 15°C ... + 35°C
for storage
- 25°C ... + 45°C
humidity
45 ... 75 %

RL 944K (Amplifier in loudspeaker cabinet)

Dimensions (h x w x d)

481 x 285 x 330 (18.9 x 11.2 x 13 inch)

Weight

24 kg (52.9 lbs)

Design of the cabinet

MDF wood in ash black veneered; optional other veneers or colours
with holding device; optional without holding devic

RL 944K1 (Amplifier in separate enclosure)

Connection cable
Loudspeaker - Amplifier enclosure

Speakon NL8
Standard length 3 m (9.9 ft); optional other lengths

Dimensions (h x w x d)

Loudspeaker
398 x 254 x 245 (15.7 x 10 x 9.6 inch)
Standard amplifier enclosure
475 x 279 x 120 (18.7 x 11 x 4.7 inch) without base plate
Highend amplifier enclosure
495 x 320 x 260 (19.5 x 12.6 x 10.2 inch) with base plate

Weight

Loudspeaker
11 kg (24 lbs)
Standard amplifier enclosure
11 kg (24 lbs)
Highend amplifier enclosure
12 kg (26 lbs)

Design of the cabinet

Loudspeaker
MDF wood in ash black veneered; optional other veneers or colours
with holding device; optional without holding device
Standard amplifier enclosure
MDF wood with scratch proof structure coating black RAL9005; optional other colours
Highend amplifier enclosure
MDF wood in ash black veneered; optional other veneers or colours

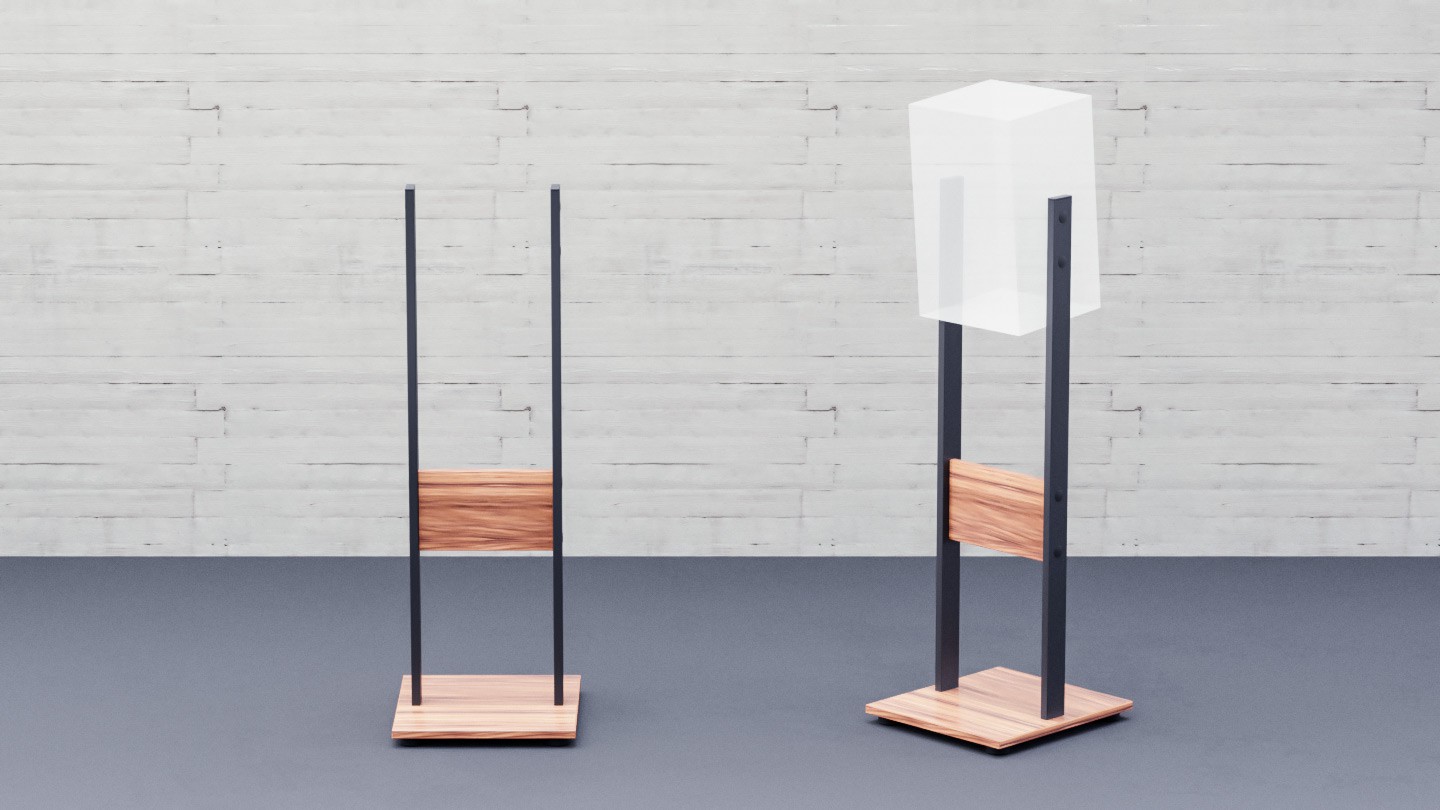

Floor bracket stand RL944K

  • Loudspeaker rotable mounted
  • Deliverable heights (Top edge loudspeaker): 1311 mm (51.6 in), 1426 mm (56.1 in), 1566 mm (61.7 in) and 1776 mm (69.9 in)
  • Base panel (W x D): 408 mm x 450 mm (16.1 in x 17.7 in)
  • Base panel and stabilisation panel veneered
  • Racks black powder-coated

Pedestal RL944K

  • Integrated cable duct in the pedestal
  • Height (Top edge loudspeaker): approx. 1132 mm (44.6 in)
  • Base panel (W x D): 285 mm x 353 mm (11.2 in x 13.9 in)
  • Pedestal veneered

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.
