RL 941

2-way-coaxial-loudspeaker in vented box

The RL 941 has been designed for both the professional user at medium-size to large audio, video and film studios and for the discerning music enthusiast.

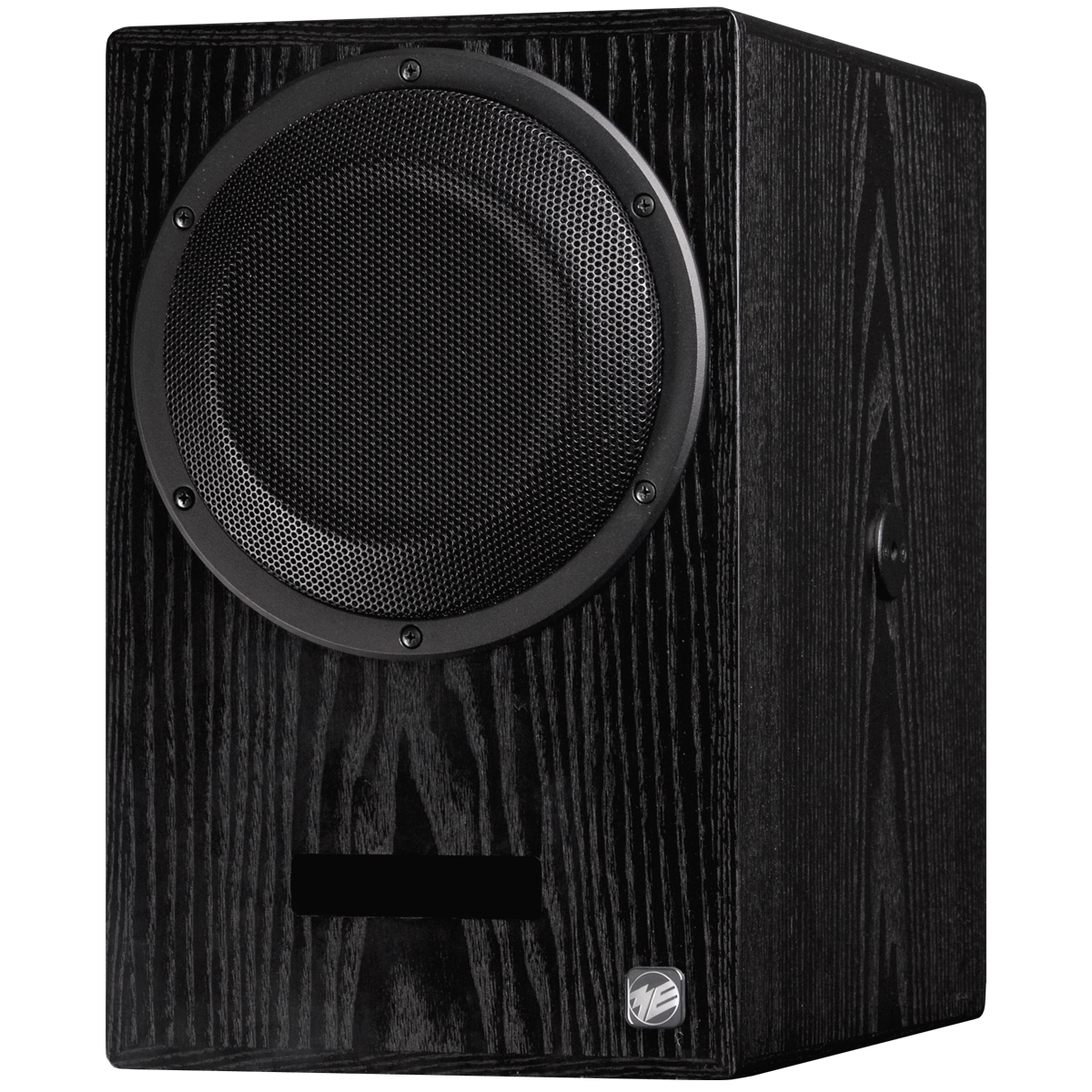

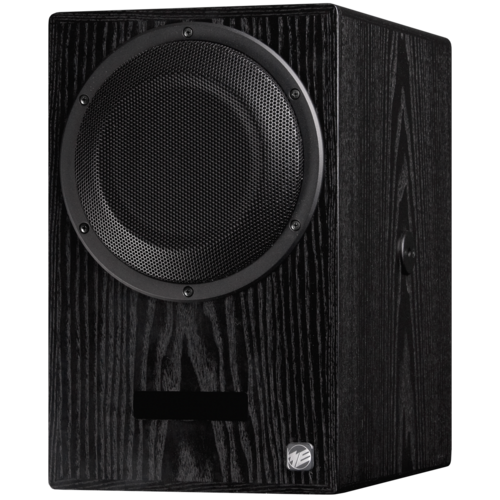

(shown veneer: ash black RAL9005)

RL 941

The RL 941 has been designed for both the professional user at medium-size to large audio, video and film studios and for the discerning music enthusiast. The directivity index has been optimised to listening distances between 2.5 and 4 metres. Low and middle frequencies are reproduced by a specially designed 8-inch cone loudspeaker. In the treble range, the RL941 features three vertically arranged 1-inch tweeter calottes that are located coaxially in front of the woofer/midrange system. The bass reflex system, designed to deliver optimal transient fidelity, ensures a precise and dry bass reproduction down to a threshold frequency of 40 Hz. Thanks to the powerful integrated analogue amplifiers and the high system efficiency, this loudspeaker combines the flawless homogeneity with a dynamic range that is unrivalled in a two-way system. The result is that non-linear distortions stay extremely low even at high reproducing levels. Moreover, the loudspeaker features group delay time optimization. Summing up all the constructive measures, the RL941 achieves seamless sound compatibility with all other products made in the our manufacture. The highly neutral tone quality, excellent spatiality performance and stage depth arrangement, together with fatigue-free monitoring of even most complex sound events are typical ME Geithain characteristics of this loudspeaker.

The power amplifier module with electronic crossover is integrated into the rear wall of the cabinet and can be swung out for maintenance purposes. An intermittent LED signalises overmodulation. If the maximum level is exceeded, the output level will be attenuated by 20 dB in order to protect the components from overloading. For adapting the frequency response to the acoustic characteristics of the reproduction room, a low-frequency room compensation can be achieved within two continuously variable frequency bands.

A variety of special stands and racks is available as accessories. According fixing elements have been integrated into the loudspeaker cabinet.

General

active 2-way-monitor for listening distances between 2.50 and 4 m

Maximum SPL
from 100 Hz ... 6 kHz

110 dB ... 116 dB / r = 1 m (3.3 ft)

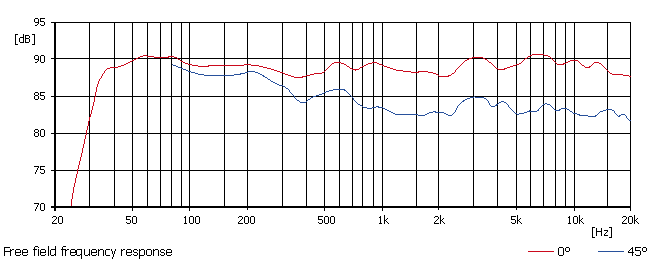

Bandwidth

38 Hz ... 20 kHz ± 3 dB

Calibration:
Acoustic output level / PE = - 14 dBu


89 dB / r = 1 m (3.3 ft)

Directivity index
from 100 Hz ... 10 kHz


increasing from 2 to 13 dB

Inherent noise sound level

≤ 7 dB (A) / r = 1 m (3.3 ft)

Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz

≤ - 40 dB

Nominal input level

+ 6 dBu adjustable

Input impedance

≥ 10 kOhm RC balanced

Electronic crossover frequencies

1.8 kHz

Nominal output power MOSFET-amplifier

LF
150 Watt / 4 Ohm
HF
100 Watt / 4 Ohm

Input connector

XLR 3F

Loudspeaker systems

Woofer
205 mm (8") cone
Tweeter
3x 25 mm (1") dome

Operation and Clipping indicator

LED on front side

Power requirements

230 Volt (± 10 %), AC, 50 Hz
115 Volt (± 10 %), AC, 60 Hz
100 Volt (± 10 %), AC, 60 Hz

Power consumption

30 VA at standby; max. 180 VA at full load

Mains Connection

IEC power connector

Dimensions (H x W x D)

398 x 254 x 345 mm (15.6 x 10.0 x 13.6 in)

Weight

18.6 kg (40.3 lbs)

Temperature requirements

for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 ... 75 %

Design of the Cabinet

MDF-wood in ash black veneered; optional different veneers or colors
with holding device; optional without holding device

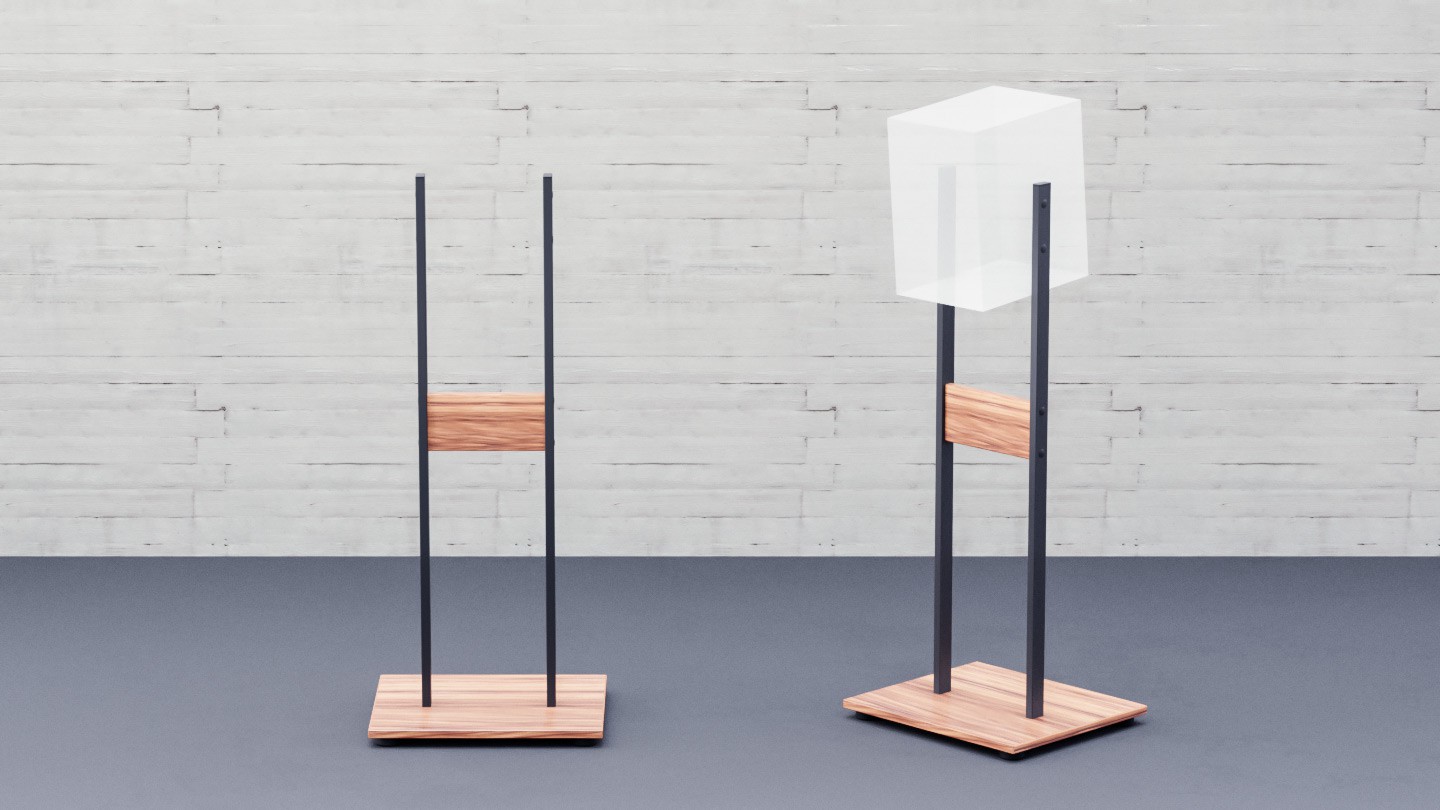

Floor bracket stand RL941

  • Loudspeaker rotable mounted
  • Deliverable heights (Top edge loudspeaker): 1184 mm (46.6 in), 1414 mm (55.7 in), 1544 mm (60.8 in) and 1684 mm (66.3 in)
  • Base panel (W x D): 520 mm x 450 mm (20.5 in x 17.7 in) oder 380 mm x 430 mm (15.0 in x 16.9 in)
  • Base panel and stabilisation panel veneered
  • Racks black powder-coated

Pedestal RL941

  • Integrated cable duct in the pedestal
  • Height (Top edge loudspeaker): approx. 1109 mm (43.7 in)
  • Base panel (W x D): 275 mm x 365 mm (10.8 in x 14.4 in)
  • Pedestal veneered

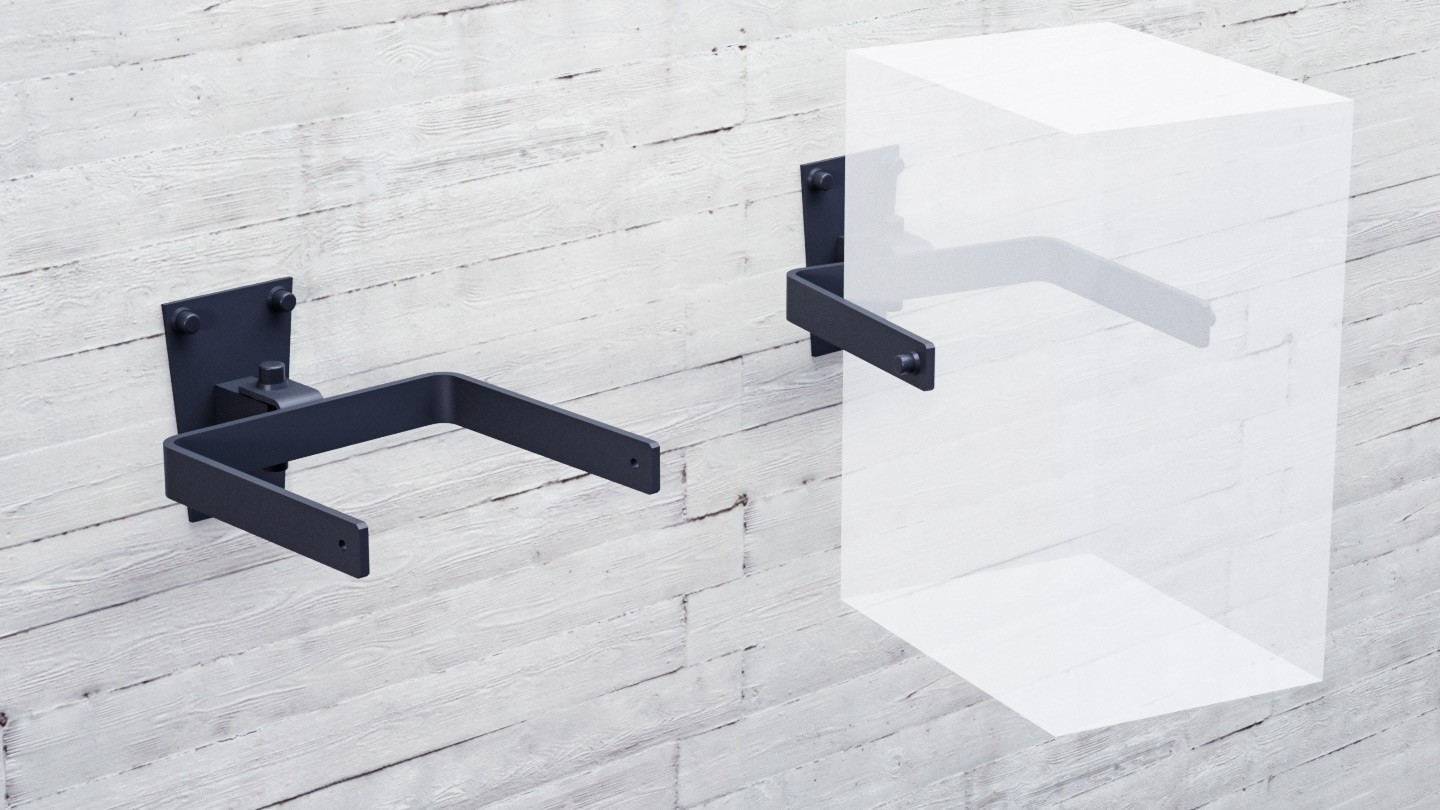

Wall bracket RL941

  • 35° tilting und 35° rotable
  • Wall bracket black powder-coated

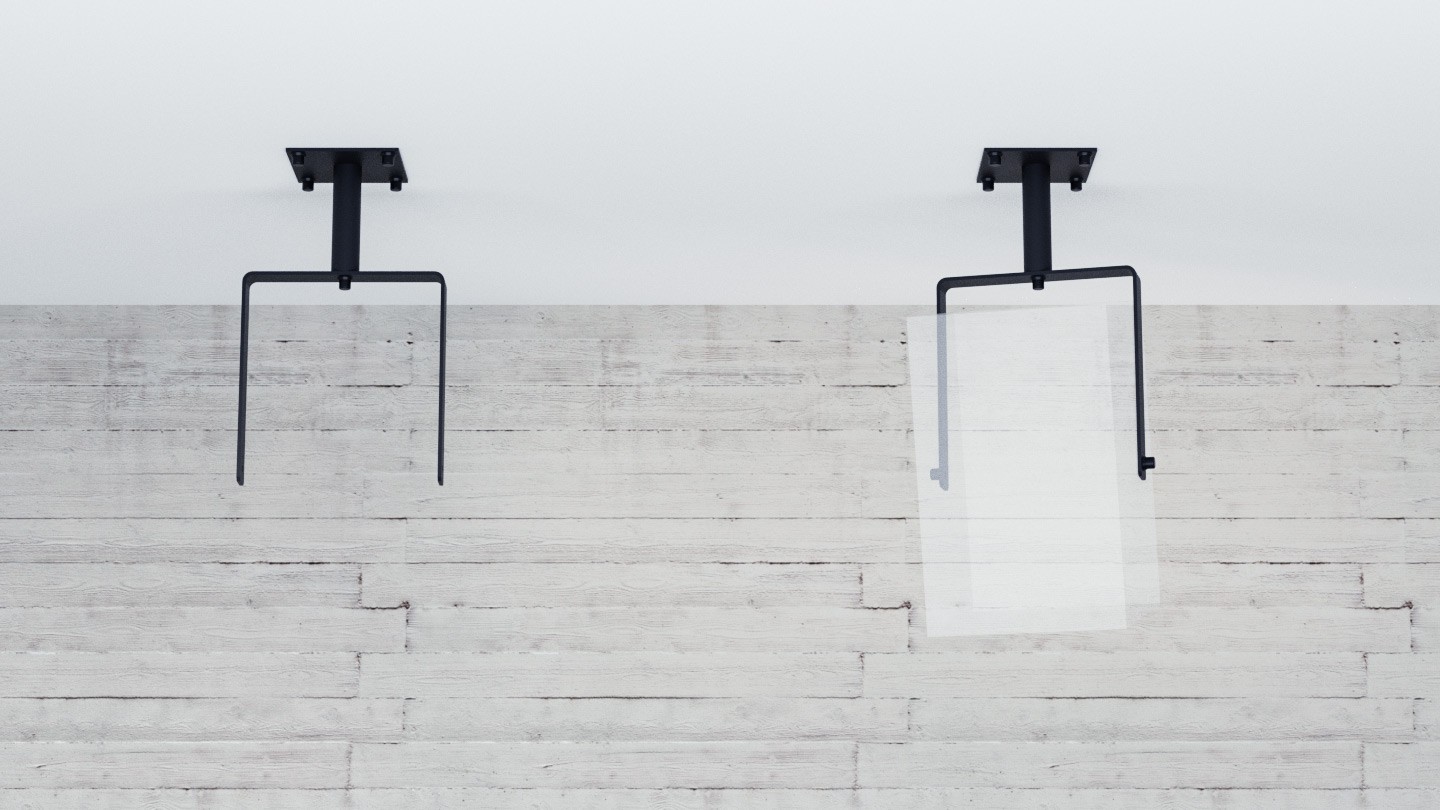

Ceiling bracket RL941

  • Loudspeaker rotable mounted
  • Standard height between adapter plate and bracket: 300 mm
  • other length available
  • Ceiling bracket black powder-coated

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
