RL 940 / RL 940C

2-way-coaxial-loudspeaker in vented box

The RL 940 has been designed for both the professional user at small to medium-size audio, video and film studios and for the discerning music enthusiast. With the directivity index optimised for mid-distance monitoring, an excellent depth arrangement with neutral colouration is achieved.

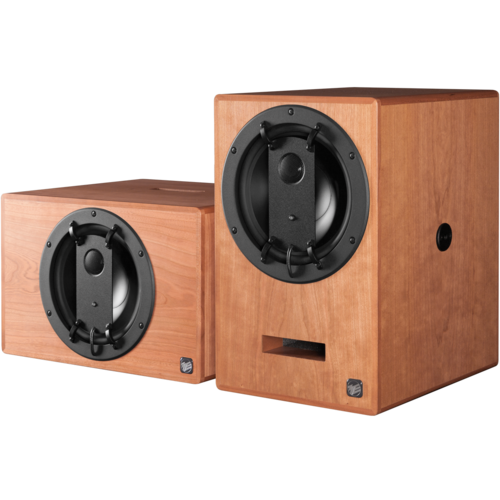

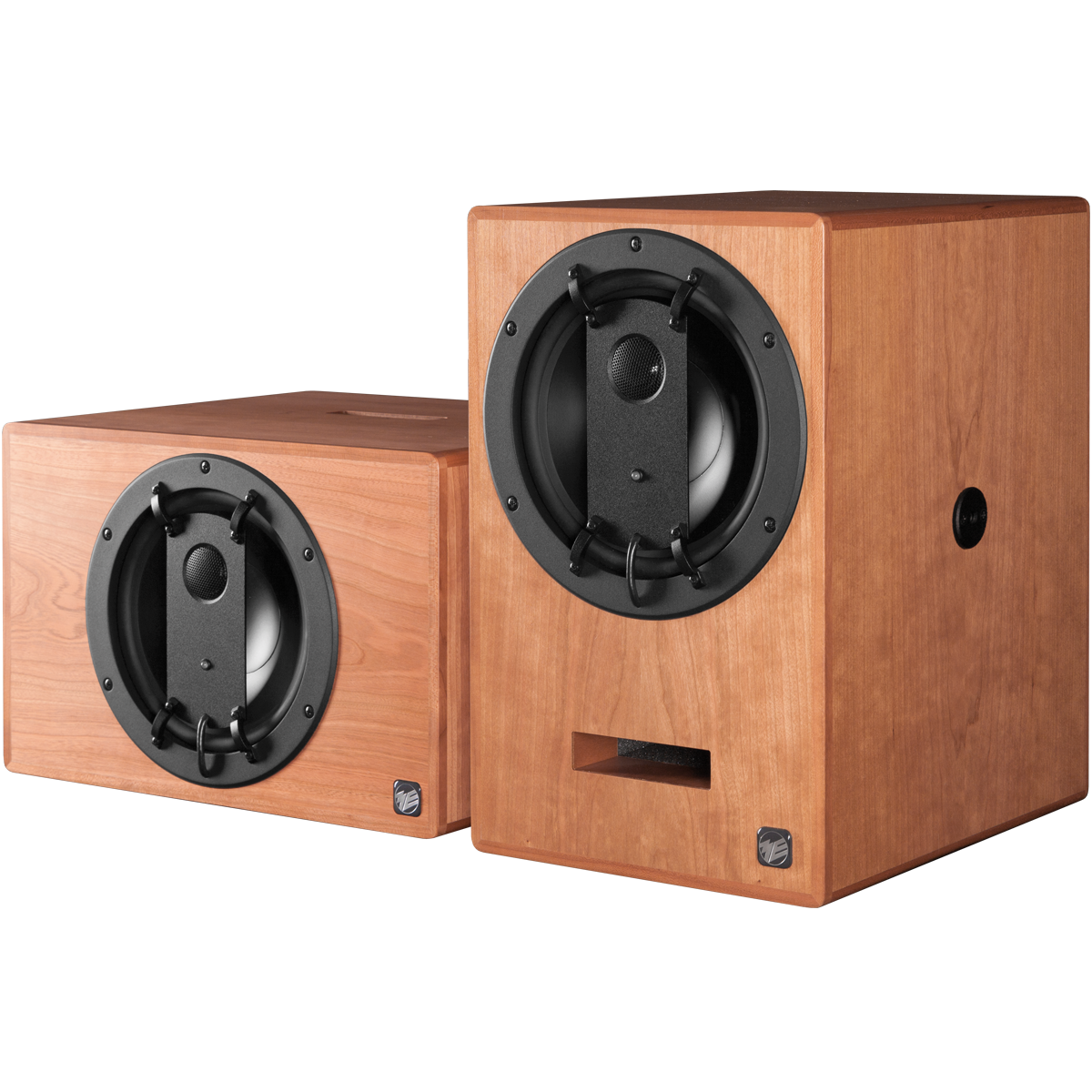

(shown veneer: american cherry nature)

RL 940 / RL 940C

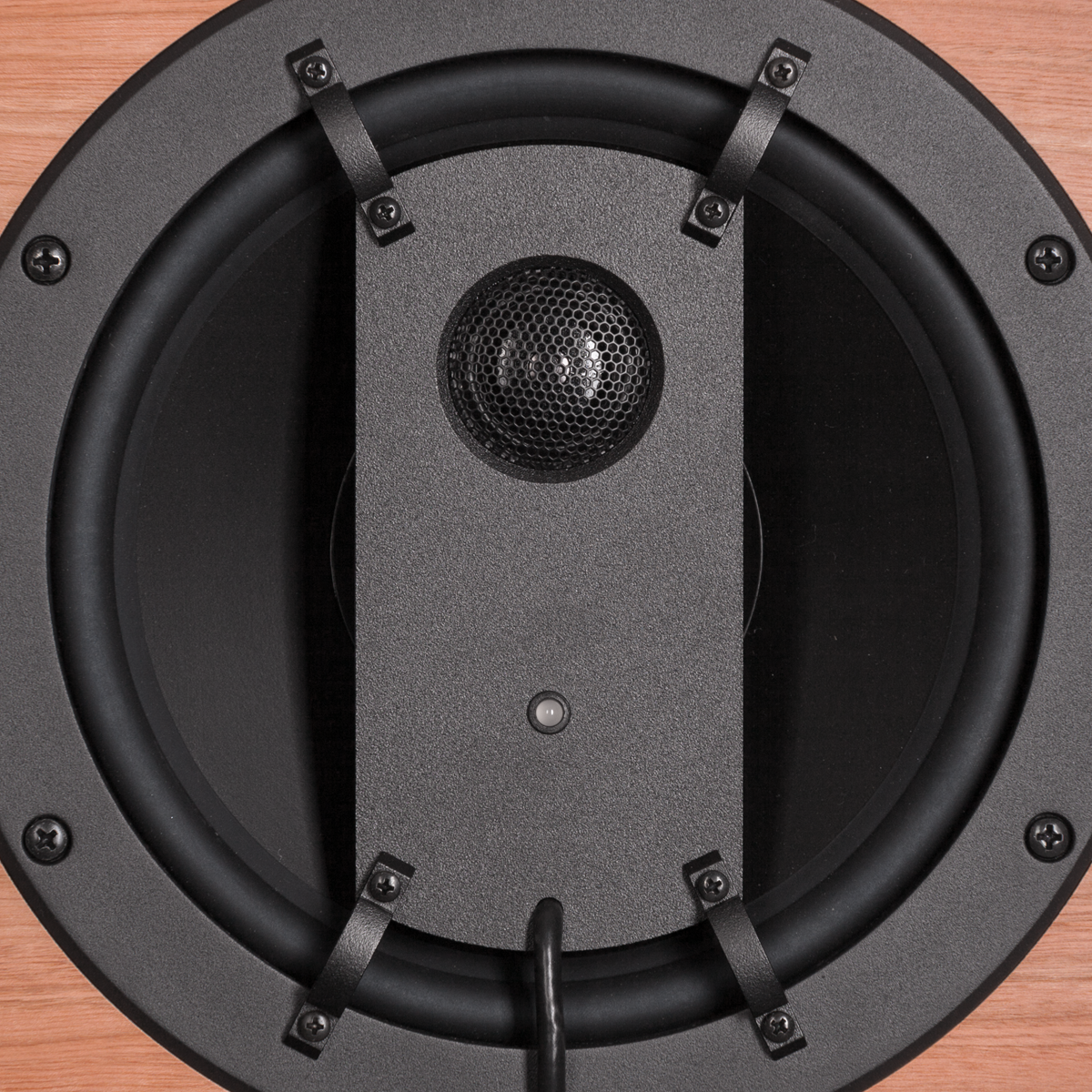

The RL 940 has been designed for both the professional user at small to medium-size audio, video and film studios and for the discerning music enthusiast. With the directivity index optimised for mid-distance monitoring, an excellent depth arrangement with neutral colouration is achieved. The coaxial configuration of the drive units delivers a sound stage with outstanding authenticity and consistency of imaging. The loudspeaker also distinguishes itself at high listening volumes through the presence of exceptionally low levels of non-linear distortion. The vented cabinet is tuned to 38 Hz and allows an uncompromising impulse response. The total system is additionally optimised for group delay.

The two channel amplifier with an electronic crossover is integrated within the rear of the enclosure and can be hinged out for maintenance purposes. An intermittent flashing LED indicates when the level reaches the system overload threshold. If the maximum level is exceeded continuously, the output level is attenuated by 20 dB to protect the components from damage. Two gapless variable low frequency controls provide separate adjustment of two frequency bands to enable the frequency response to be matched to the acoustic environment of the listening room.

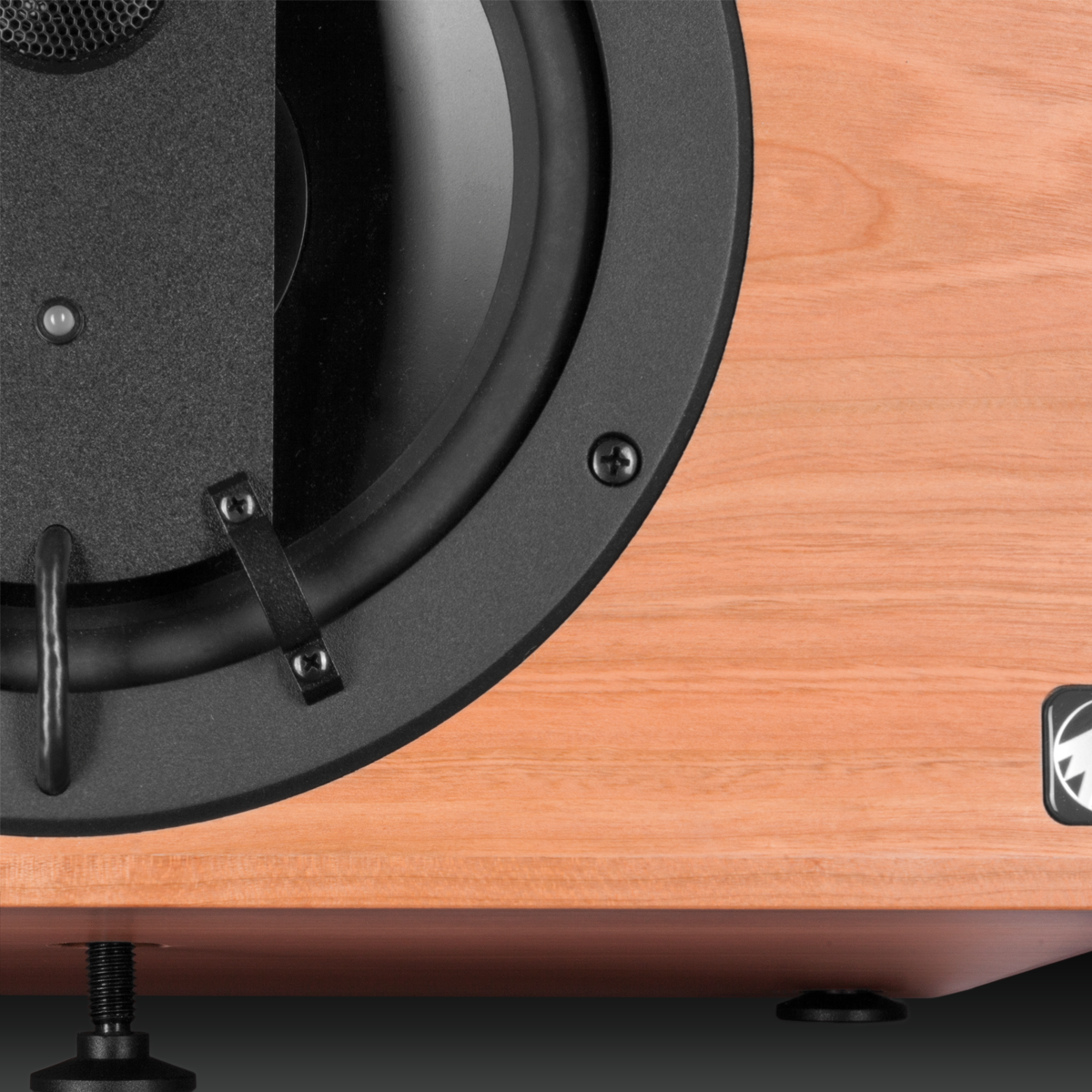

In surround systems the RL 940 performs excellent as front and effect loudspeaker. As a centre speaker the RL 940C was designed, which is better integrable due to its lesser height. In addition the speaker is inclinable up to 15° to the top with the height-adjustable feet at the cabinet bottom. Therefore a perfect alignment to the listening position is possible. The centre speaker RL 940C doesn‘t fall behind the RL 940 regarding acoustical and technical performance. In connection with one of our BASIS models the surround system is perfectly complemented.

A variety of special stands and holding devices are available as accessories to the RL 940; appropriate mounting elements are integrated into the cabinet.

General

active 2-way-monitor for listening distances between 1.50 m (5 ft) and 3 m (10 ft)

Maximum SPL
from 100 Hz ... 6 kHz


110 dB ... 114 dB / r = 1 m (3.3 ft)

Bandwidth

38 Hz ... 20 kHz ± 3 dB

Calibration:
Acoustic output level / PE = - 14 dBu


89 dB / r = 1 m (3.3 ft)

Directivity index
from 100 Hz ... 10 kHz


increasing from 2 dB to 10 dB

Inherent noise sound level

≤ 7 dB (A) / r = 1 m (3.3 ft)

Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz



≤ - 40 dB

Nominal input level

+ 6 dBu adjustable

Input impedance

≥ 10 kOhms RC balanced

Electronic crossover frequency

1.8 kHz

Nominal output power MOSFET-amplifier

LF
150 W / 4 Ohms
HF
100 W / 4 Ohms

Input connector

XLR 3F

Loudspeaker systems

Woofer
205 mm (8") cone
Tweeter
25 mm (1") dome

Operation and Clipping indicator

LED on front side

Power requirements

230 V ~ ± 10 %; 50 Hz ... 60 Hz
115 V ~ ± 10 %; 50 Hz ... 60 Hz (optional)
100 V ~ ± 10 %; 50 Hz ... 60 Hz (optional)

Power consumption

max. 180 VA at full load

Mains Connection

IEC power connector

Dimensions (H x W x D)

RL 940
398 x 254 x 345 mm (15.6" x 10.0" x 13.6")
RL 940C
254 x 398 x 345 mm (10.0" x 15.6" x 13.6")

Weight

18 kg (39 lbs)

Temperature requirements

for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 % ... 75 %

Design of the Cabinet
RL 940 / RL 940C

MDF-wood in ash black veneered; optional different
veneers or colours
optional without holding device available
with heigth-adjustable feet at the cabinet bottom

Floor bracket stand RL940

  • Loudspeaker rotable mounted
  • Deliverable heights (Top edge loudspeaker): 1184 mm (46.6"), 1414 mm (55.7"), 1544 mm (60.8") and 1684 mm (66.3")
  • Base panel (W x D): 520 x 450 mm (20.5" x 17.7") or 380 x 430 mm (15.0" x 16.9")
  • Base panel and stabilisation panel veneered
  • Racks black powder-coated

Pedestal RL940

  • Integrated cable duct in the pedestal
  • Height (Top edge loudspeaker): approx. 1109 mm (43.7")
  • Base panel (W x D): 275 x 365 mm (10.8" x 14.4")
  • Pedestal veneered

Wall bracket RL940

  • 35° tilting und 35° rotable
  • Wall bracket black powder-coated

Ceiling bracket RL940

  • Loudspeaker rotable mounted
  • Standard height between adapter plate and bracket: 300 mm (11.8")
  • other lengths available
  • Ceiling bracket black powder-coated

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
