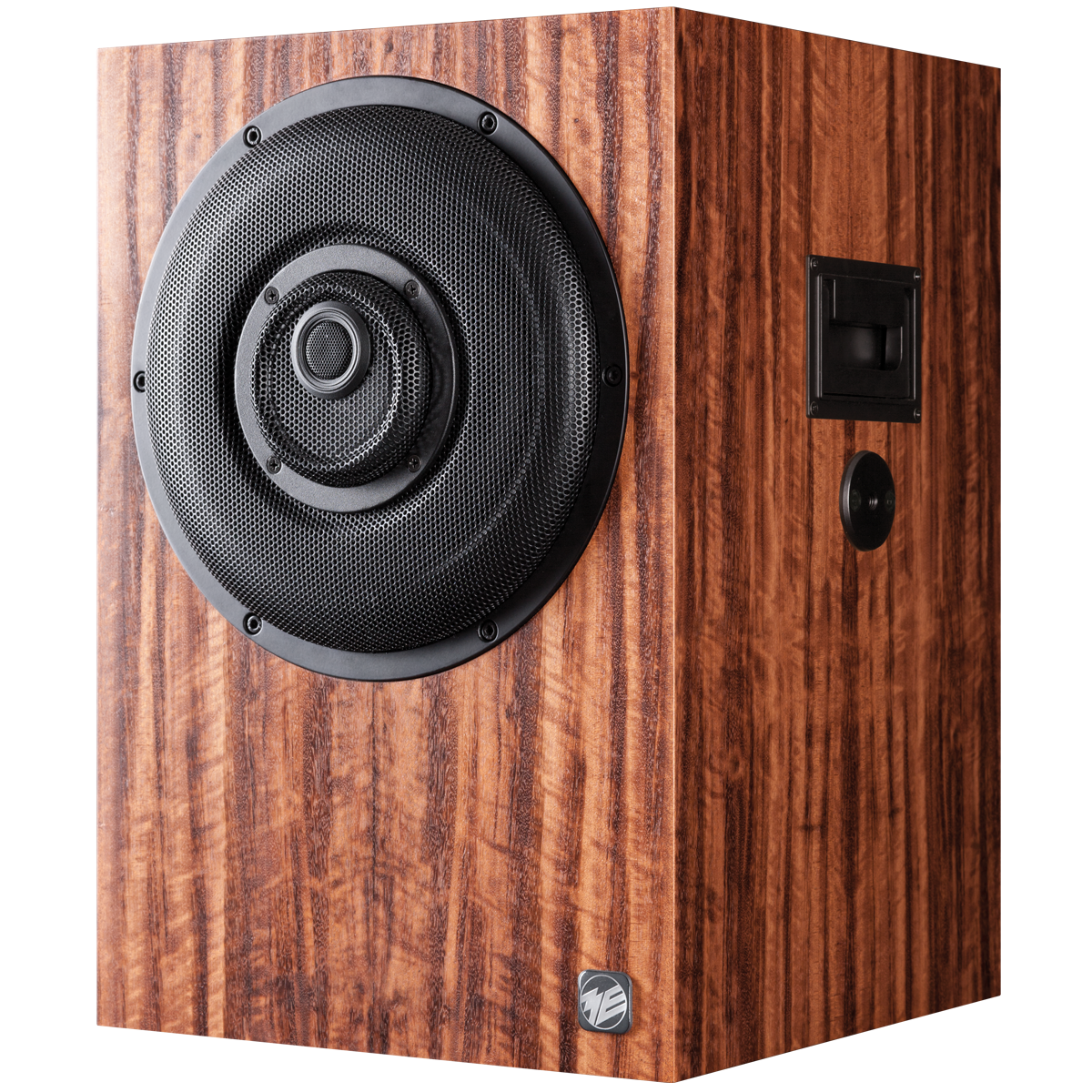

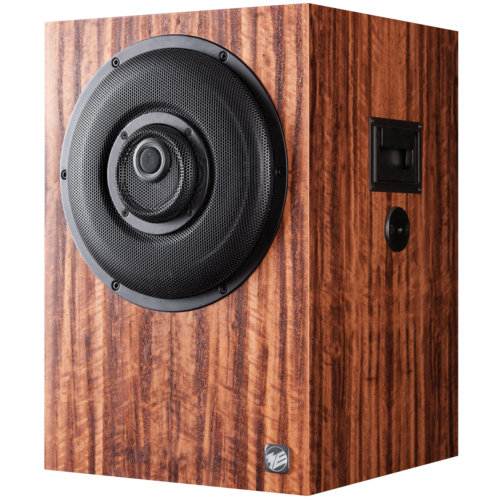

RL 934K

The RL934K is as well as the RL944K designed for short listening distances. It is tonally compatible to the RL944K but offers a lower bass range and higher power rating. Therefore it is the optimal solution in small sound and video studios as well as outside broadcasting vans working on reference standard. Also passionate music listeners with limited placement options will appreciate the RL934K.

By the cardioid radiation characteristics within the frequency range from 30 through 250 Hz the reflections on the back walls of listening rooms can be minimized. In addition the transfer characteristic can be matched to the acoustical conditions of the reproduction room as well as to the set-up situation by an integrated room matching filter.

The total directivity index of the monitor was optimized for very short listening distances and base distance between one and 2.6 metres (3.3 ft and 8.6 ft). As the bass system a very linear 260-mm (10’’) long-throw driver in a cardioid cabinet is employed, delivering excellent impulse fidelity. The 100-mm (4’’) cone is mounted together with the 19-mm (0.75’’) dome tweeter coaxially in front of the bass system allowing a precise steering of the directivity index. As a result a realistic and steady spatial performance of the sound image around the listening position is achieved, with high homogeneity and smallest possible coloration. By the great membrane area the RL934K is in the highest degree level proof while at the same time it has the lowest distortions. Therefore the RL934K is a precision studio tool allowing fatigue free working for hours.

The three-channel MOSFET power amplifier with electronic crossover is integrated within the back wall of the cabinet and is hinged for service purposes. An intermittent LED lighting signals when the overload limit is reached. After crossing of the maximum level the output level will be reduced by 20 dB to avoid any overloading of the components.

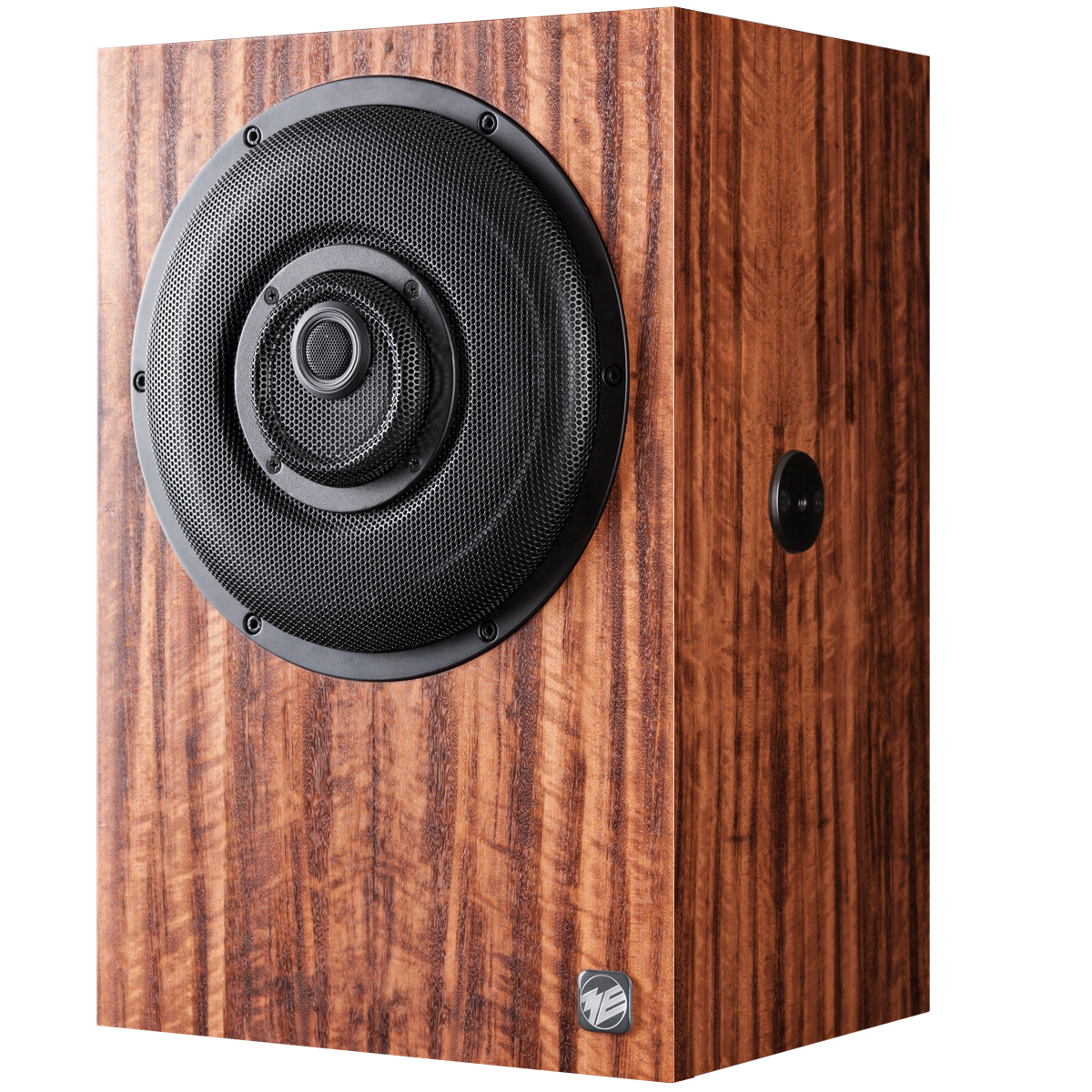

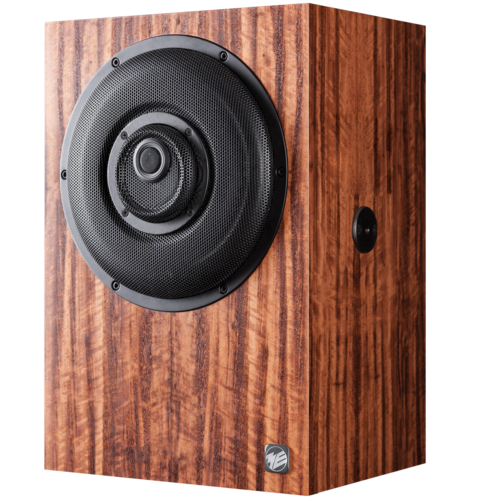

The RL934K1 is a shortened cabinet variant of the RL934K, that is employed when not enough installation depth is available. Be it a video wall or an outside broadcasting van. For maximum flexibility when choosing the mounting position the speaker is also available in a lying variant. As an alternative to the standardly provided MOSFET amplifier in an upright standing enclosure both the 19’’ compatible Class D amplifiers RL-Amplifier and RL-Amplifier 2 are also available.

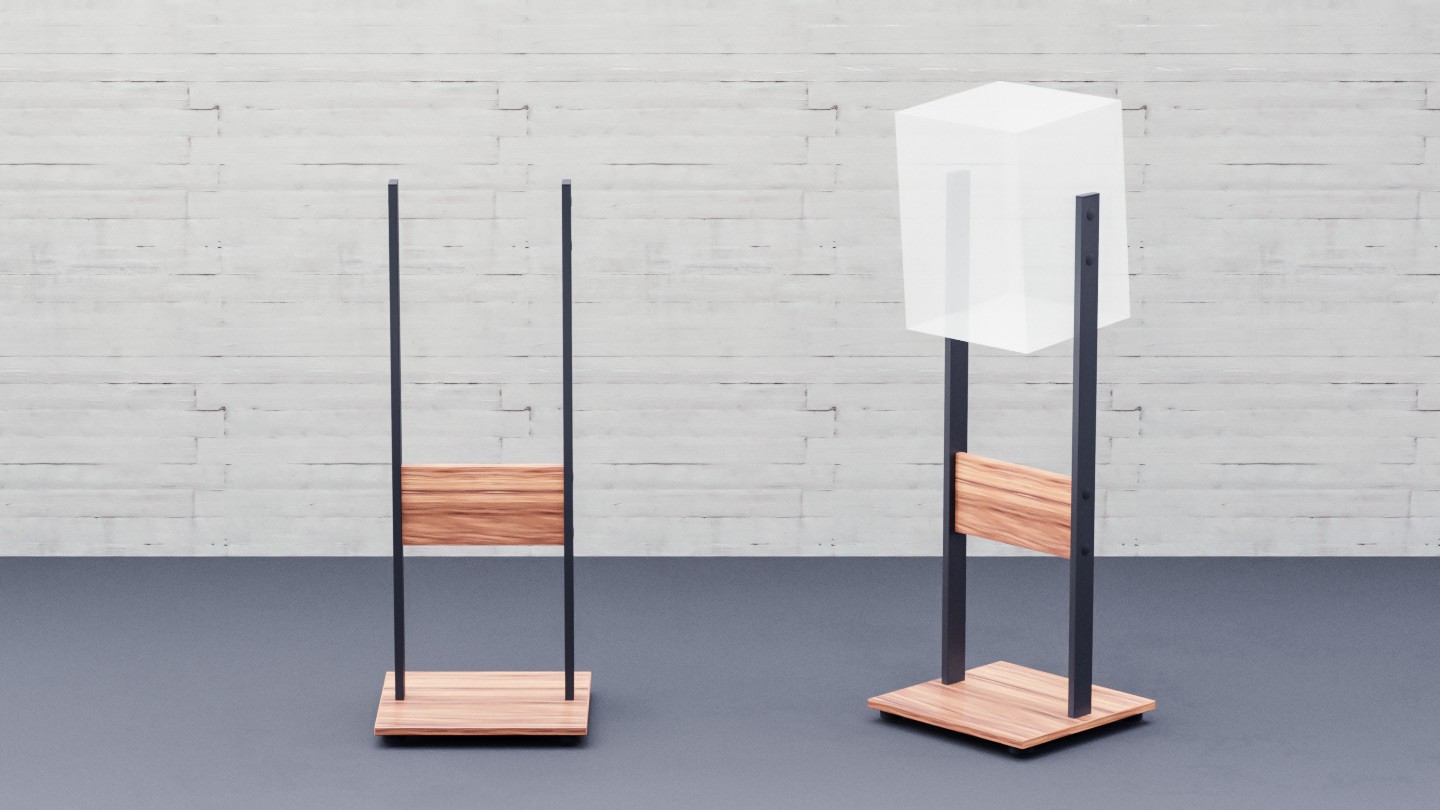

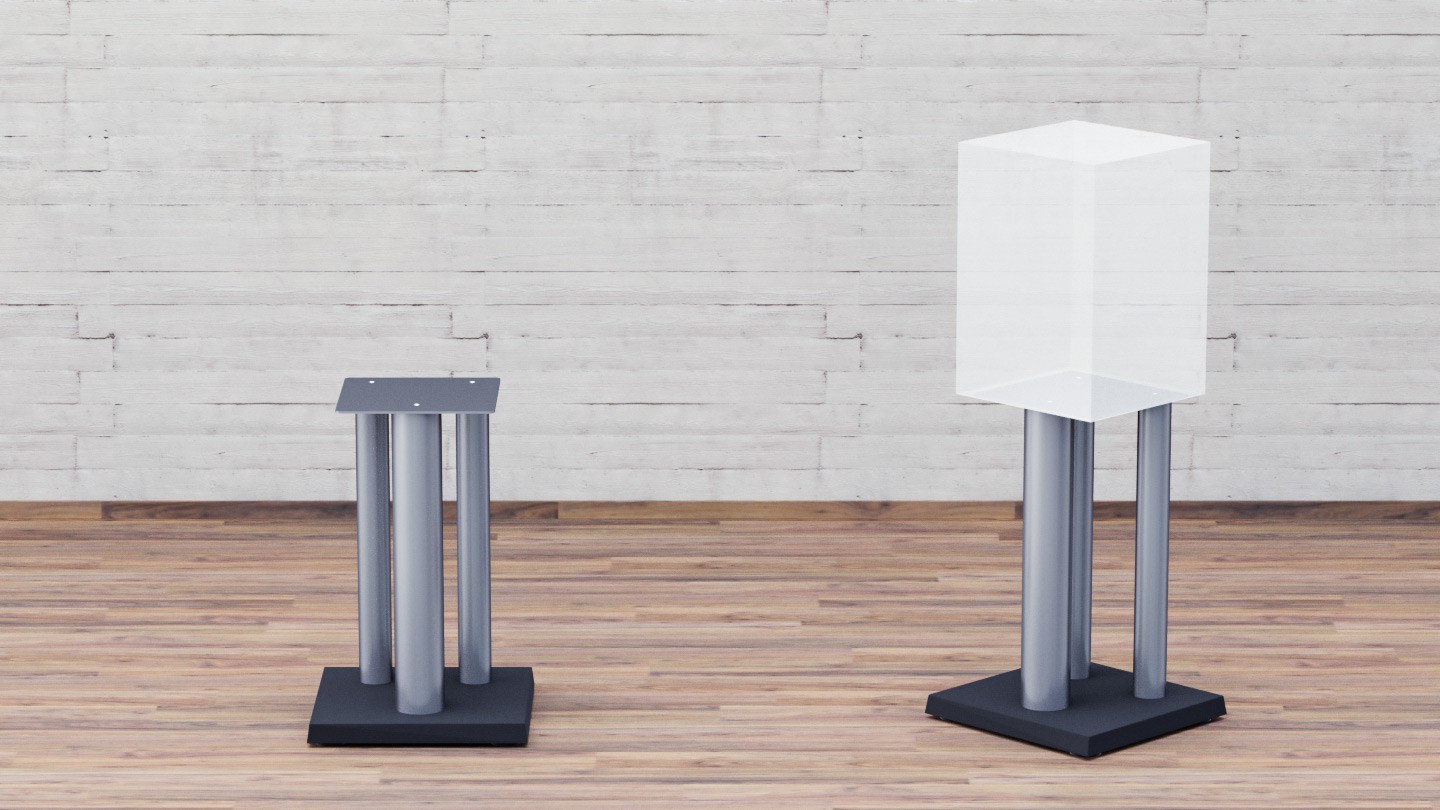

A variety of special stands and racks is available as accessories. According fixing elements have been integrated into the loudspeaker cabinet.
