MO-2

2-way-coaxial-loudspeaker in vented box

The loudspeaker of the type MO-2 is a compact studio monitor of our MO series. It is qualified for the use in near-field and middle-field applications as well as in outside broadcasting vans.

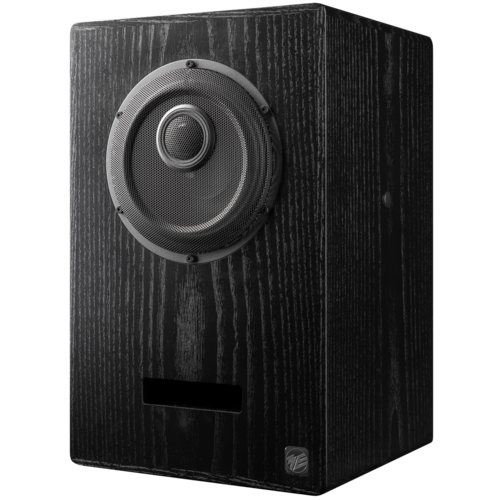

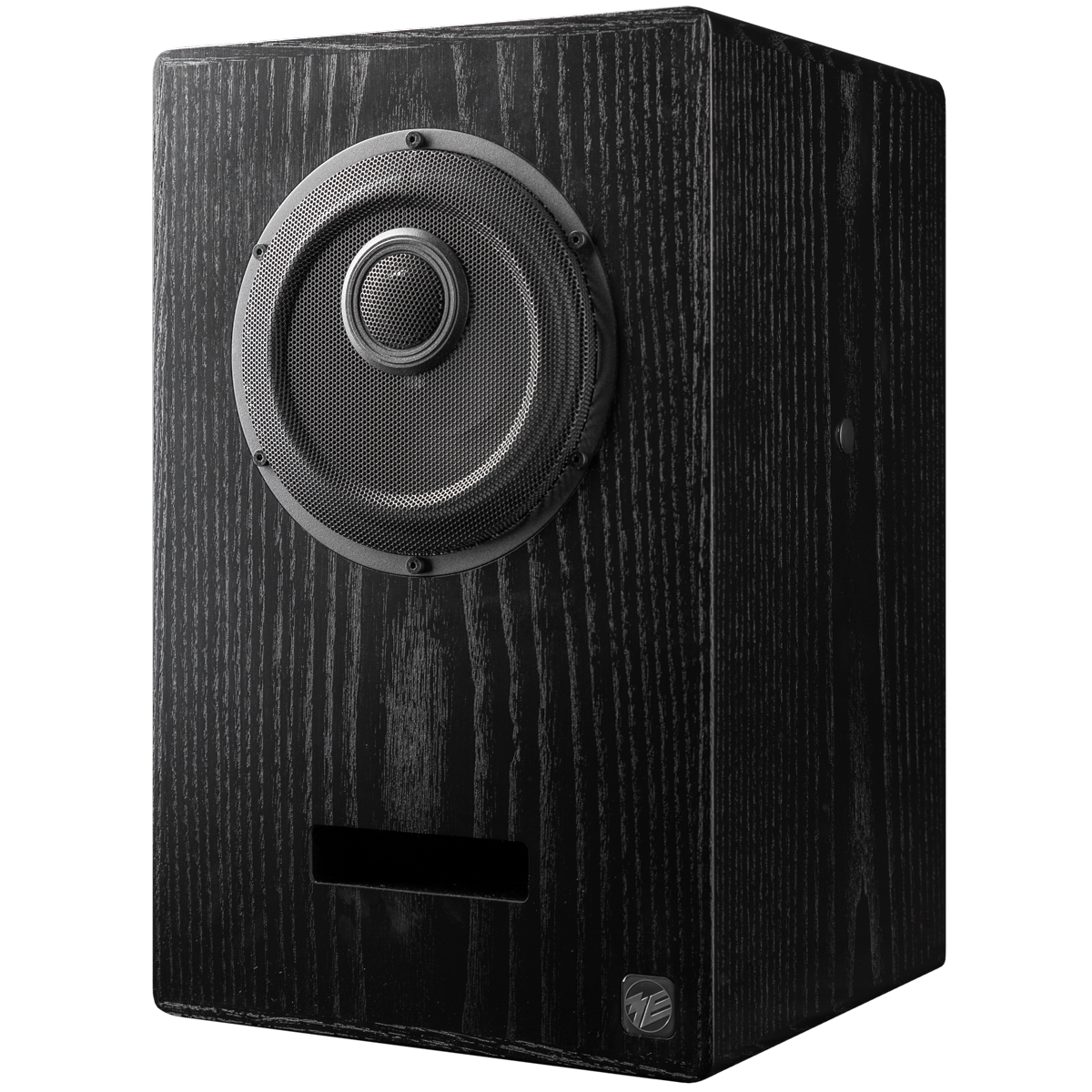

(shown veneer: ash black RAL9005)

MO-2

The loudspeaker of the type MO-2 is a compact studio monitor of our MO series. It is qualified for the use in near-field and middle-field applications as well as in outside broadcasting vans. With multichannel application we recommend the supplement by one of our active bass loudspeakers, BASIS 11…14K. Because of the construction in an active coaxial two-way technology we can ensure sound colour compatibility to our studio control monitor loudspeakers. Moreover, by that constructive measure we can achieve high naturalness and homogeneity of the irradiated sound event. Also with regard to the localisation definition and the feasibly minimum imaging of phantom sound sources the MO-2 is seamless matched to all the loudspeakers of the RL and MO series. The directivity index was determined in such a manner that an operation is feasible up to 1m minimum basis width.

The loudspeaker unit is supplied with a 160 mm cone low-frequency driver and a 25 mm high-frequency dome driver arranged coaxially. They are powered by separate MOSFET power amplifiers with an active crossover and electronic protection circuit in the back part of the cabinet. The MO-2 contains symmetric XLR input with calibrated input level adjustment. According to the position of the monitor box the amplitude/ frequency curve can be well matched in the low- and in the high-frequency range as well as in the region about 300 Hz by means of the controls on the back side.

The status of operation and also the status when the maximum level is overridden will be signalized by a two-coloured LED. The loudspeaker is magnetically shielded for compensating stray fields.

The design of the box is finished in MDF with true veneer. Various special stands and holds are available as optional extras. The corresponding appliances are integrated in the case.

General

active two-way monitor for use in small
and middle audio-, video production studios

Maximum SPL
from 100 Hz ... 6 kHz


108 ... 112 dB / r = 1 m (3.3 ft)

Bandwidth

46 Hz ... 20 kHz ± 3 dB

Calibration:
Acoustic output level / PE = - 14 dBu


> 83 dB / r = 1 m (3.3 ft)

Directivity index
from 200 Hz ... 10 kHz


increasing from 1 to 9.5 dB

Inherent noise sound level

≤ 7 dB (A) / r = 1 m (3.3 ft)

Total harmonic distortion
measured at 90 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz



≤ - 45 dB

Nominal Input level

+ 6 dBu adjustable

Input impedance

≥ 10 kOhm RC balanced

Electronic Crossover frequencies

2.6 kHz

Nominal output power MOSFET-amplifier

LF
80 Watt / 4 Ohm (100 Watt peak)
HF
80 Watt / 4 Ohm (100 Watt peak)

Input Connector

XLR 3F

Loudspeaker systems

Woofer
160 mm (6.5") cone
Tweeter
25 mm (1") dome

Operation and Clipping indicator

LED on front side

Power requirements

Europe 230 Volt (± 10 %), AC, 50 Hz
USA & Canada 115 Volt, AC, 60 Hz

Power consumption

max. 100 Watt at full load

Mains Connection

IEC power connector

Dimensions (H x W x D)

398 x 254 x 245 mm (15.7 x 10 x 9.6 in)

Weight

11 kg (24 lbs)

Temperature requirements

for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 ... 75 %

Design of the Cabinet

MDF-wood in ash black veneered, optional different veneers or colors
with holding device; optional without holding device

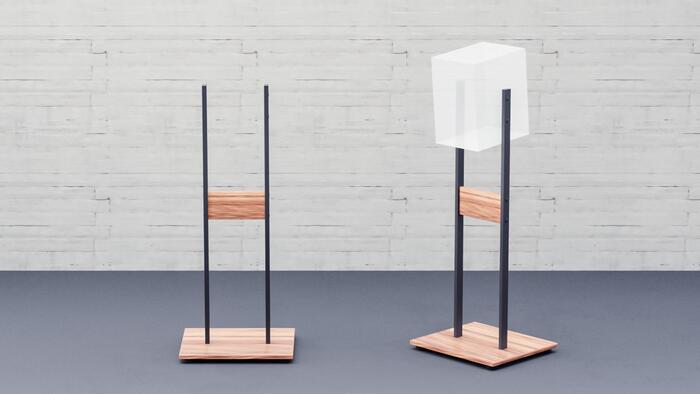

Floor bracket stand MO2

  • Loudspeaker rotable mounted
  • Deliverable heights (Top edge loudspeaker): 1145 mm (45.1 in), 1375 mm (54.1 in), 1505 mm (59.3 in) and 1645 mm (64.8 in)
  • Base panel (W x D): 520 mm x 450 mm (20.5 in x 17.7 in)
  • Base panel and stabilisation panel veneered
  • Racks black powder-coated

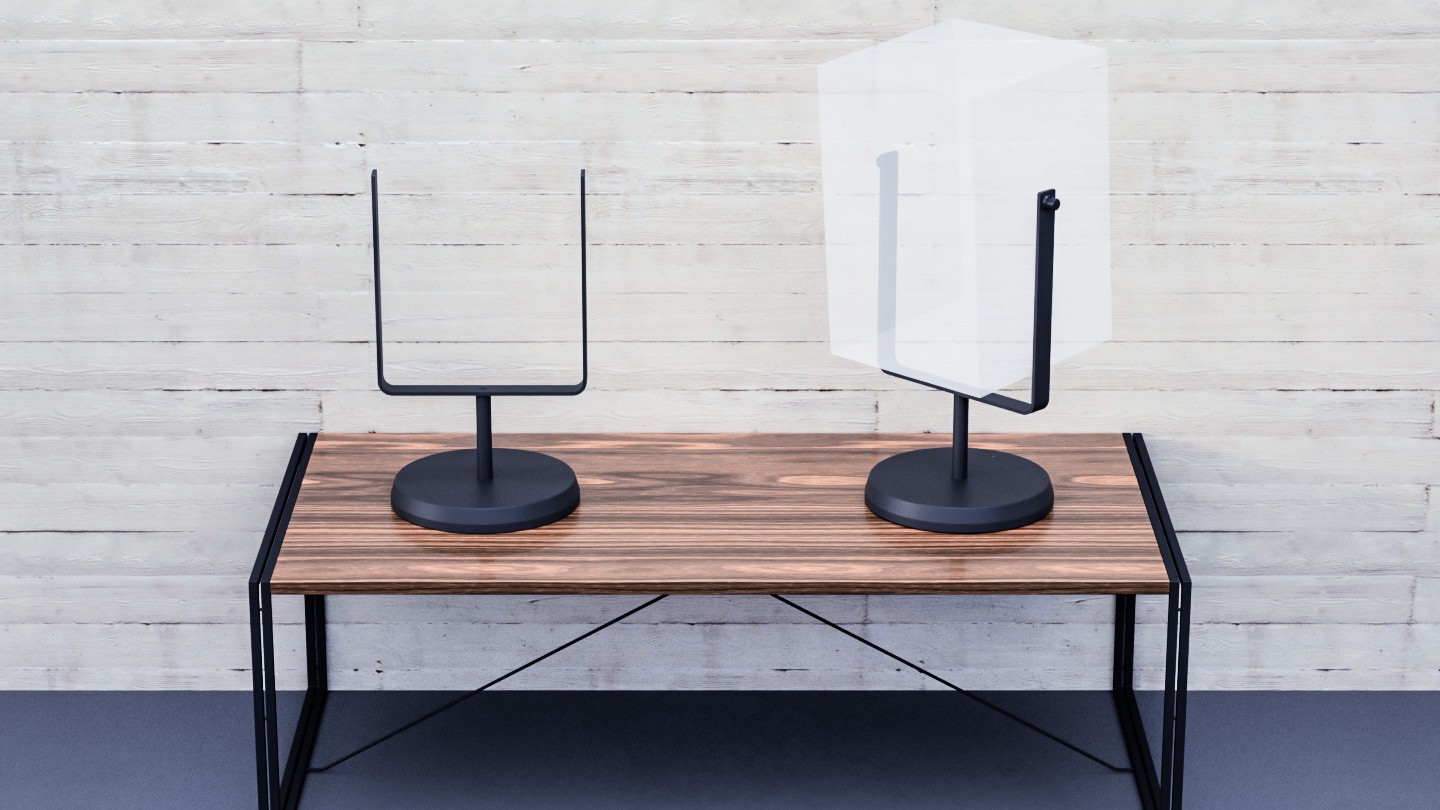

Table stand with cast base MO2

  • Loudspeaker rotable mounted
  • Deliverable height (Top edge loudspeaker): 610 mm (24.0 in)
  • Diameter of the cast base: 247 mm (9.7 in)
  • Table stand with cast base black powder-coated

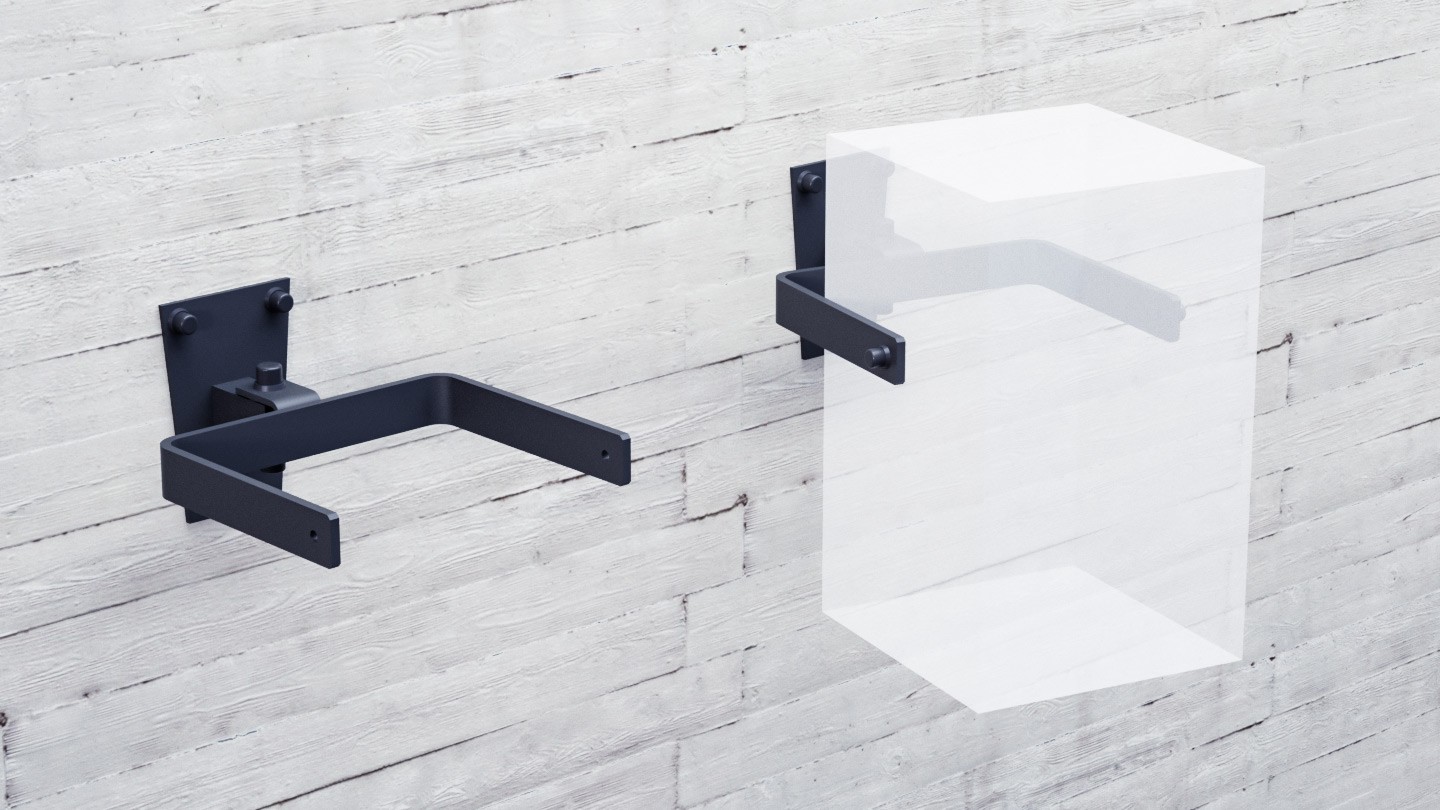

Wall bracket MO2

  • 35° tilting und 35° rotable
  • Wall bracket black powder-coated

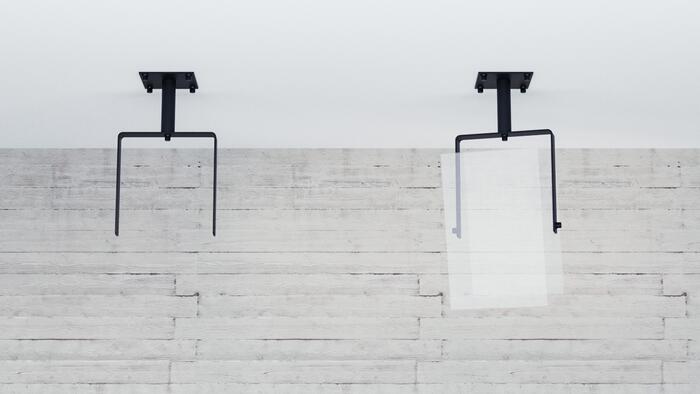

Ceiling bracket MO2

  • Loudspeaker rotable mounted
  • Standard height between adapter plate and bracket: 300 mm
  • other length available
  • Ceiling bracket black powder-coated

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
