musikelectronic geithain gmbh

MO-1 MKII

2-way-coaxial-loudspeaker in enclosure box

The compact monitor that does more.
The relaunch of the MO-1, the MO-1 MKII, is not simply a product refresh; it is a complete redesign that surpasses its predecessor in both performance and functionality without forgetting what made the MO-1 stand out.

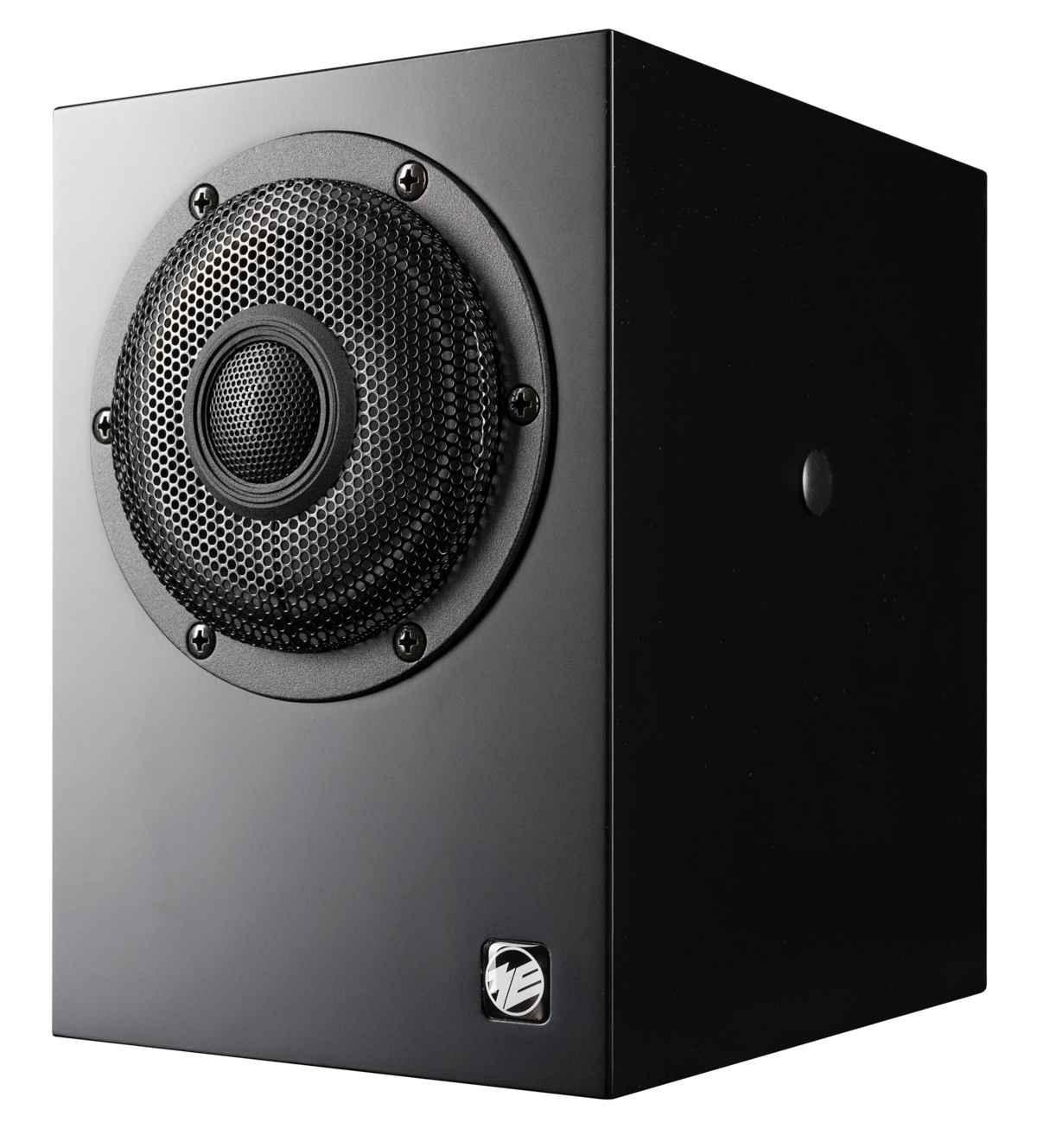

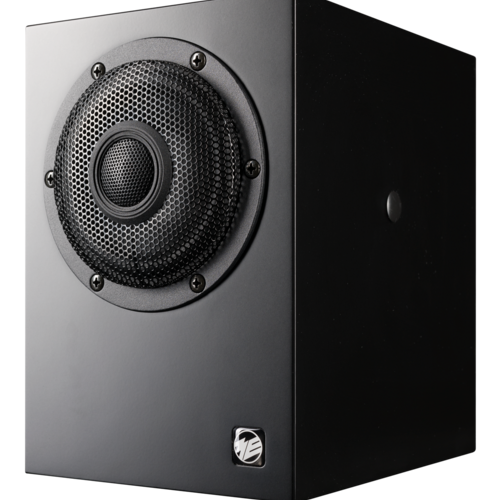

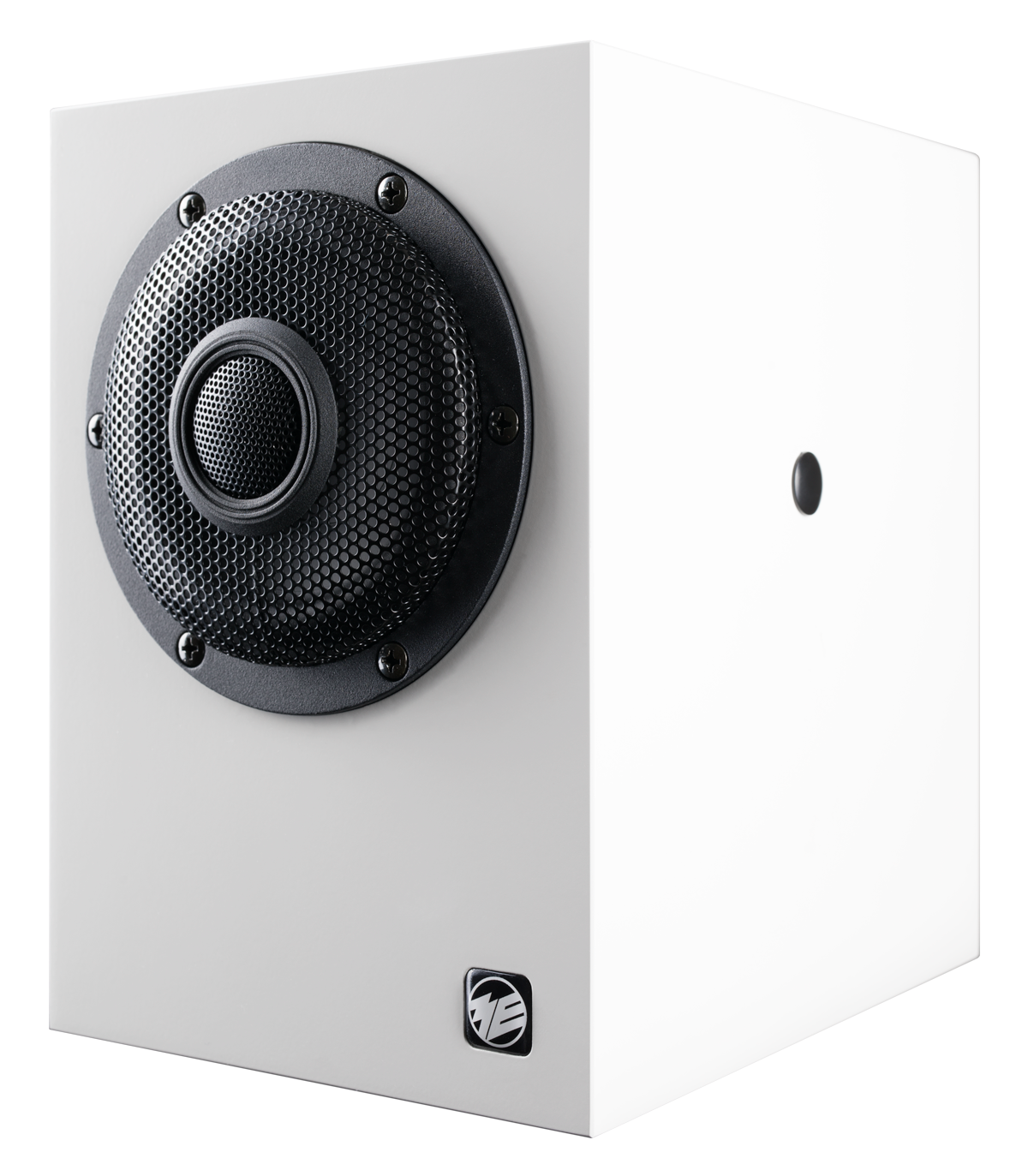

(shown finish: black and white semi-gloss varnish)

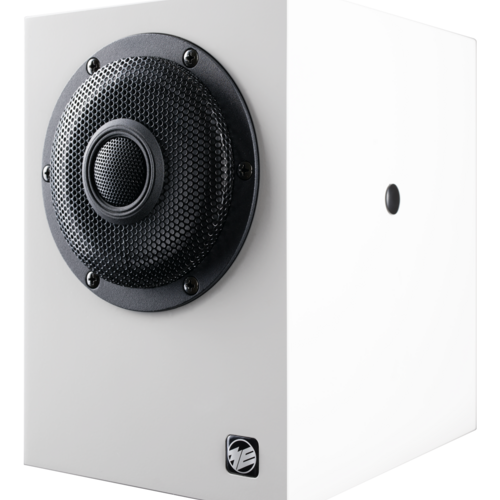

MO-1 MKII

The relaunch of the MO-1, the MO-1 MKII, is not simply a product refresh; it is a complete redesign that surpasses its predecessor in both performance and functionality without forgetting what made the MO-1 stand out. The MO-1 MKII is more than a control monitor - it is a fully-fledged studio monitor that is perfect for spaces with limited room. Ideal for short listening distances, it unfolds its acoustic qualities in the broadcast van, compact studios, as an elegant surround speaker, or for the discerning audio and video professional right at the desk.

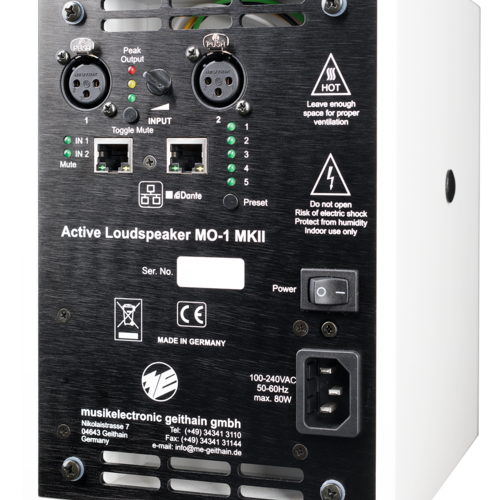

The coaxial design, the impeccable neutrality, and the high-quality craftsmanship are common features shared with all ME-Geithain products. However, the new MO-1 MKII utilizes powerful PWM amplifiers, a wide-range switched-mode power supply, and signal processing via DSP. The speaker comes with two XLR inputs, allowing for mono downmixing, and is optionally capable of receiving Dante streams and AES67 via the integrated network switch.

User-configurable DSP filters, presets, and adjustable time delay expand the functionality to a level that is unmatched in its class.

General

Small Outside Broadcasting Vans, Surround speakers and loudspeakers determined for small rooms and in multichannel equipment, reproducing systems of small conference sound equipment 0.6 m (1′12″) and 2 m (6′7″)

Maximum SPL
from 150 Hz ... 3 kHz


103 dB ... 108 dB / r = 1 m (3′3″) (4 π)

Bandwidth

50 Hz ... 22 kHz ±3 dB

Calibration:
Acoustic output level / PE = −14 dBu


76 dB / r = 1 m (3′3″)

Directivity index
from 100 Hz ... 6 kHz


increasing from 1 dB to 10 dB

Inherent noise sound level

≤ 2 dB (A) / r = 1 m (3′3″)

Total harmonic distortion
measured at 85 dBSPL / r = 1 m (3′3″)
from 200 Hz ... 10 kHz



≤ −40 dB

Nominal input level

+6 dBu (adjustable)

Input impedance

≥ 22 kΩ RC balanced

Electronic crossover frequency

3.5 kHz

Nominal output power of the amplifier

LF
95 W / 4 Ω
HF
95 W / 4 Ω

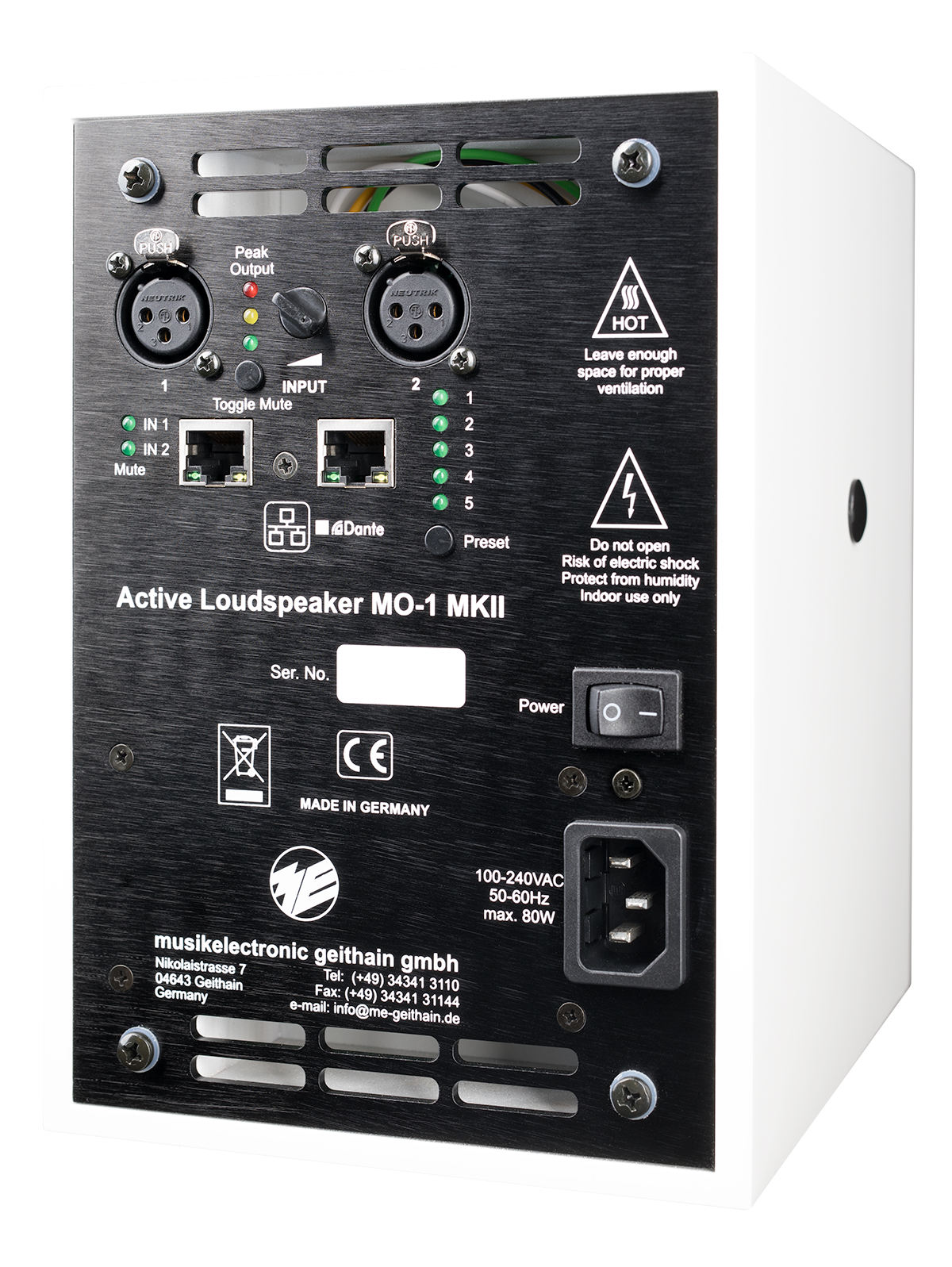

Input connectors

2× XLR 3F analogue (optional Dante via RJ45)

Control inputs

2× RJ45 Ethernet incl. switch

Equalizer

10 free programmable EQs

Delay

adjustable delay between 0 ... 40 ms

Drive units

Woofer
1× 100 mm (4″) cone
Tweeter
1× 19 mm (¾″) dome

Operation and clipping indicator

Illuminated logo at front

Power requirements

80 V ... 264 V, 50 Hz ... 60 Hz

Power consumption

7 VA when idle
max. 80 VA at full load

Mains connection

IEC power connector

Environmental conditions

for use
+15 °C ... +35 °C (+ 59 °F ... +95 °F)
for storage
−25 °C ... +45 °C (−13 °F ... +113 °F)
humidity
45 % ...  75 %

Dimensions (H × W × D)

214 mm × 147 mm × 192 mm (8.5″ × 5.8″ × 7.6″)

Weight

3.5 kg (7.8 lbs)

Design of the cabinet

Body
MDF black and white semi-gloss varnish; other veneers and colours on request
Lateral mounting
with latheral mounting; without lateral mounting on request

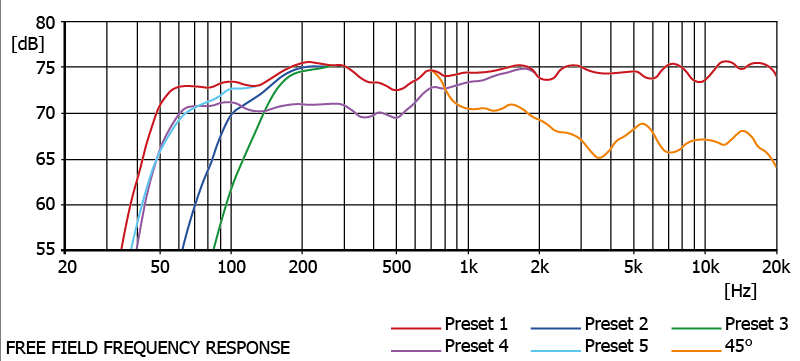

MO-1 MKII Free Field Frequency Response

MO-1 MKII Free Field Frequency Response

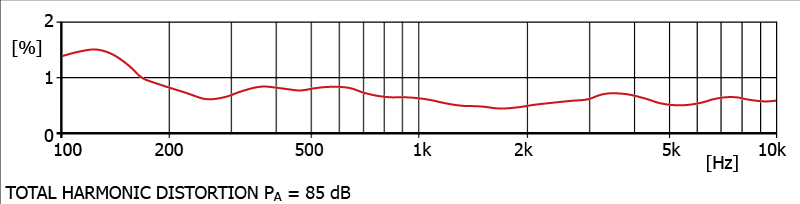

MO-1 MKII Total Harmonic Distortion

MO-1 MKII Total Harmonic Distortion

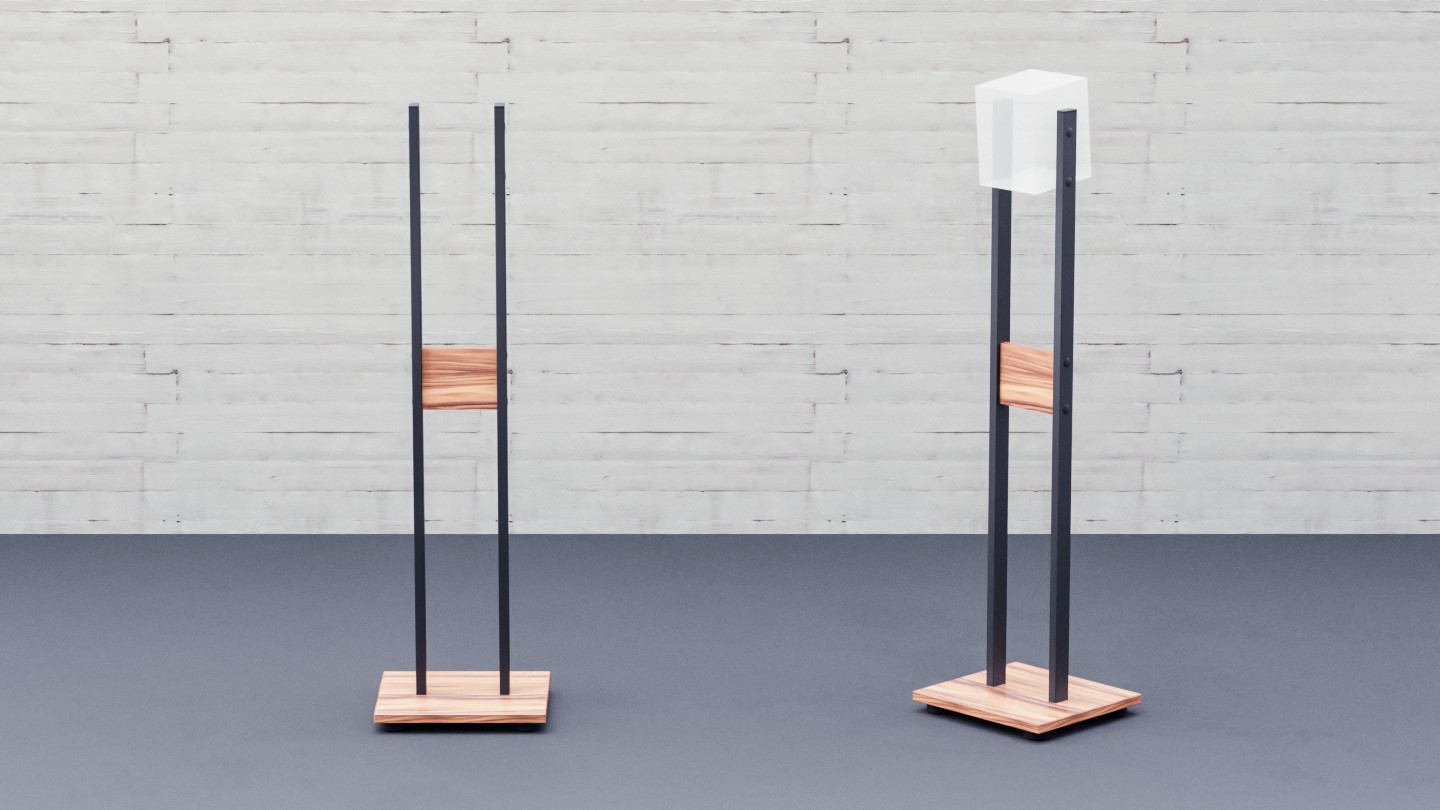

Floor bracket stand MO-1 MKII

Floor bracket stand MO-1 MKII
  • Loudspeaker rotable mounted
  • Deliverable heights (Top edge loudspeaker): 1071 mm (42.2 in), 1301 mm (51.2 in), 1431 mm (56.3 in) und 1571 mm (61.9 in)
  • Base panel (W x D): 345 mm x 315 mm (13.6 in x 12.4 in)
  • Base panel and stabilisation panel painted or veneered
  • Racks black powder-coated

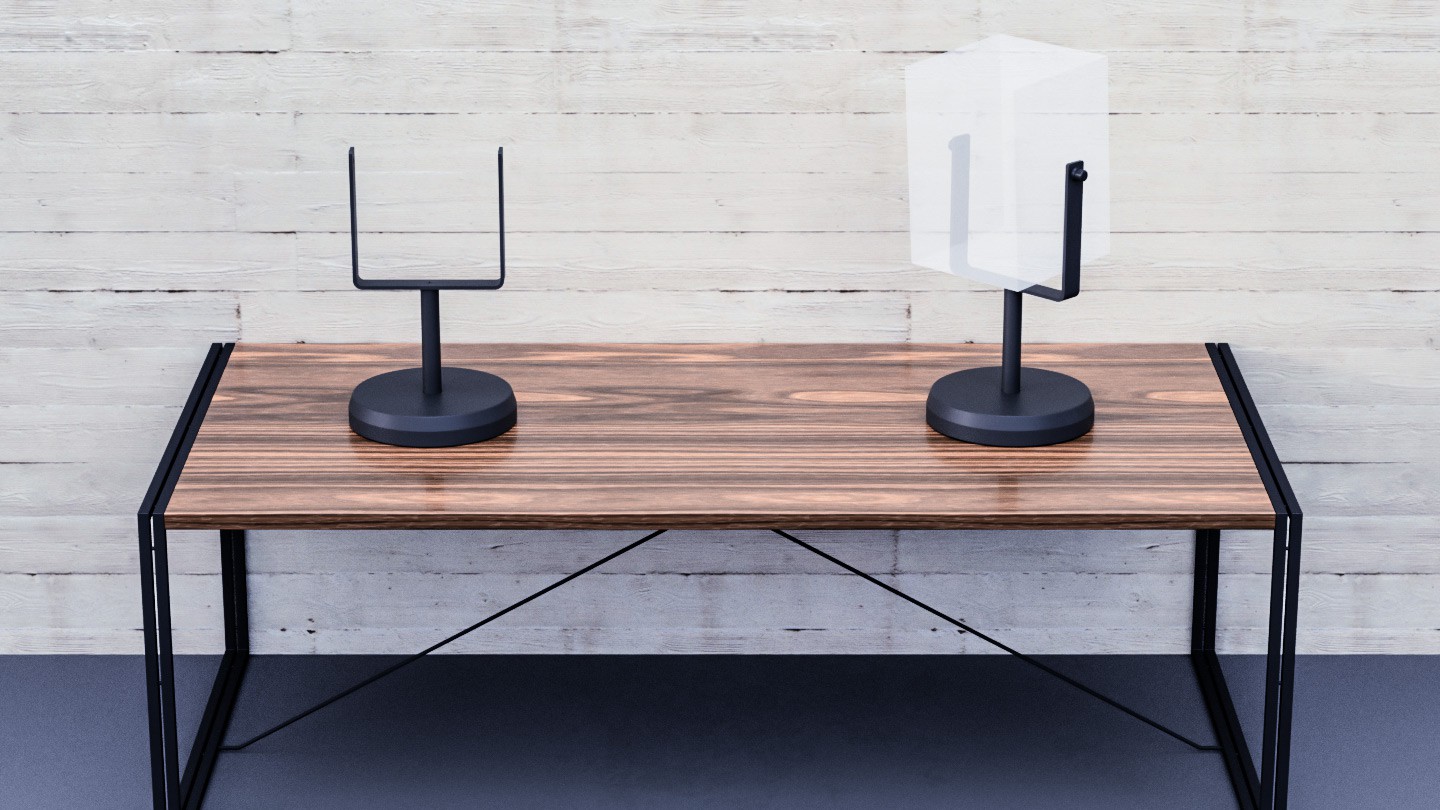

Table stand with cast base MO-1 MKII

Table stand with cast base MO-1 MKII
  • Loudspeaker rotable mounted
  • Deliverable height (Top edge loudspeaker): 385 mm (14.7 in)
  • Diameter of the cast base: 180 mm (7.1 in)
  • Table stand with cast base black powder-coated

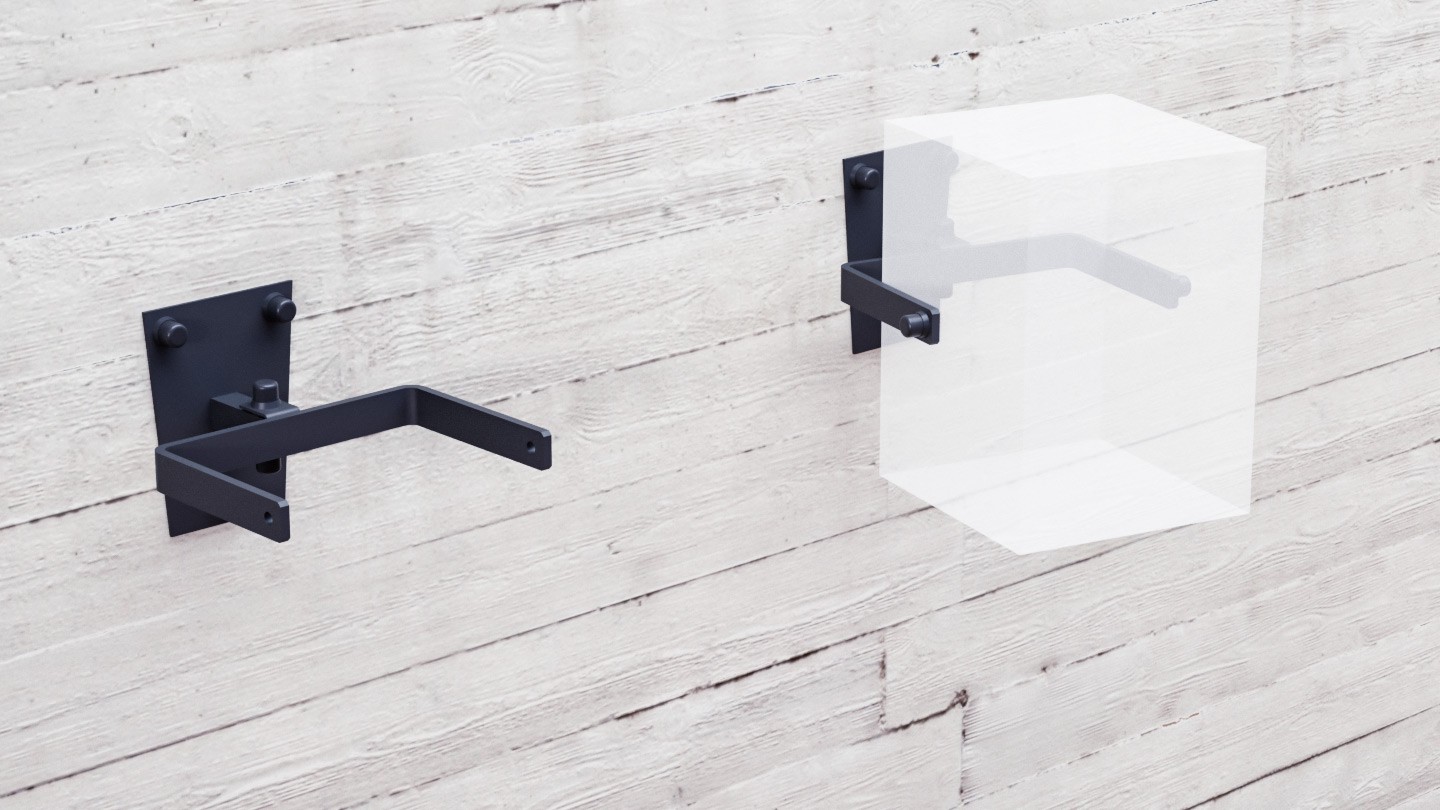

Wall bracket MO-1 MKII

Wall bracket MO-1 MKII
  • 30° tilting und 30° rotable
  • Wall bracket black powder-coated

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.

Ash black (RAL9005) Ash black (RAL9005)
Ash black (RAL9005)
Ash white (RAL9010) Ash white (RAL9010)
Ash white (RAL9010)
Ash gray (RAL7035) Ash gray (RAL7035)
Ash gray (RAL7035)
Ash nature Ash nature
Ash nature
Maple nature Maple nature
Maple nature
Norway maple nature Norway maple nature
Norway maple nature
Birds eye maple nature (In short supply! Only while stocks last.) Birds eye maple nature (In short supply! Only while stocks last.)
Birds eye maple nature (In short supply! Only while stocks last.)
Birdseye maple stained (In short supply! Only while stocks last.) Birdseye maple stained (In short supply! Only while stocks last.)
Birdseye maple stained (In short supply! Only while stocks last.)
European cherry nature European cherry nature
European cherry nature
American cherry nature American cherry nature
American cherry nature
American cherry stained American cherry stained
American cherry stained
Beech nature Beech nature
Beech nature
Oak nature Oak nature
Oak nature
Oak stained P11 Oak stained P11
Oak stained P11
Oak stained P43 Oak stained P43
Oak stained P43
Alder nature Alder nature
Alder nature
Birch nature Birch nature
Birch nature
Mahogany nature Mahogany nature
Mahogany nature
American walnut nature American walnut nature
American walnut nature
Makassar nature Makassar nature
Makassar nature
Wenge nature Wenge nature
Wenge nature
Indian appletree nature (Tineo) Indian appletree nature (Tineo)
Indian appletree nature (Tineo)
rosewood nature rosewood nature
rosewood nature
Tigerwood nature Tigerwood nature
Tigerwood nature
satin walnut nature satin walnut nature
satin walnut nature
zebrawood nature zebrawood nature
zebrawood nature
Satin matt varnish in RAL color Satin matt varnish in RAL color
Satin matt varnish in RAL color
High gloss varnish in RAL color (no piano varnish) High gloss varnish in RAL color (no piano varnish)
High gloss varnish in RAL color (no piano varnish)
