General
active 3-way-coaxial-loudspeaker for listening distances between 2 m and 4 m
Maximum SPL
from 100 Hz ... 6 kHz
116 dB ... 122 dB / r = 1 m (3.3 ft)
Bandwidth
25 Hz ... 20 kHz ± 3 dB
Calibration:
Acoustic output level / PE = - 14 dBu
89 dB / r = 1 m (3.3 ft)
Directivity index
from 200 Hz ... 10 kHz
increasing from 5 dB to 10 dB
Inherent noise sound level
≤ 7 dB (A) / r = 1 m (3.3 ft)
Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz
≤ - 44 dB
Nominal Input level
+ 6 dBu adjustable
Input impedance
≥ 10 kOhms RC balanced
Electronic Crossover frequencies
550 Hz and 2.8 kHz
Nominal output power MOSFET-amplifier

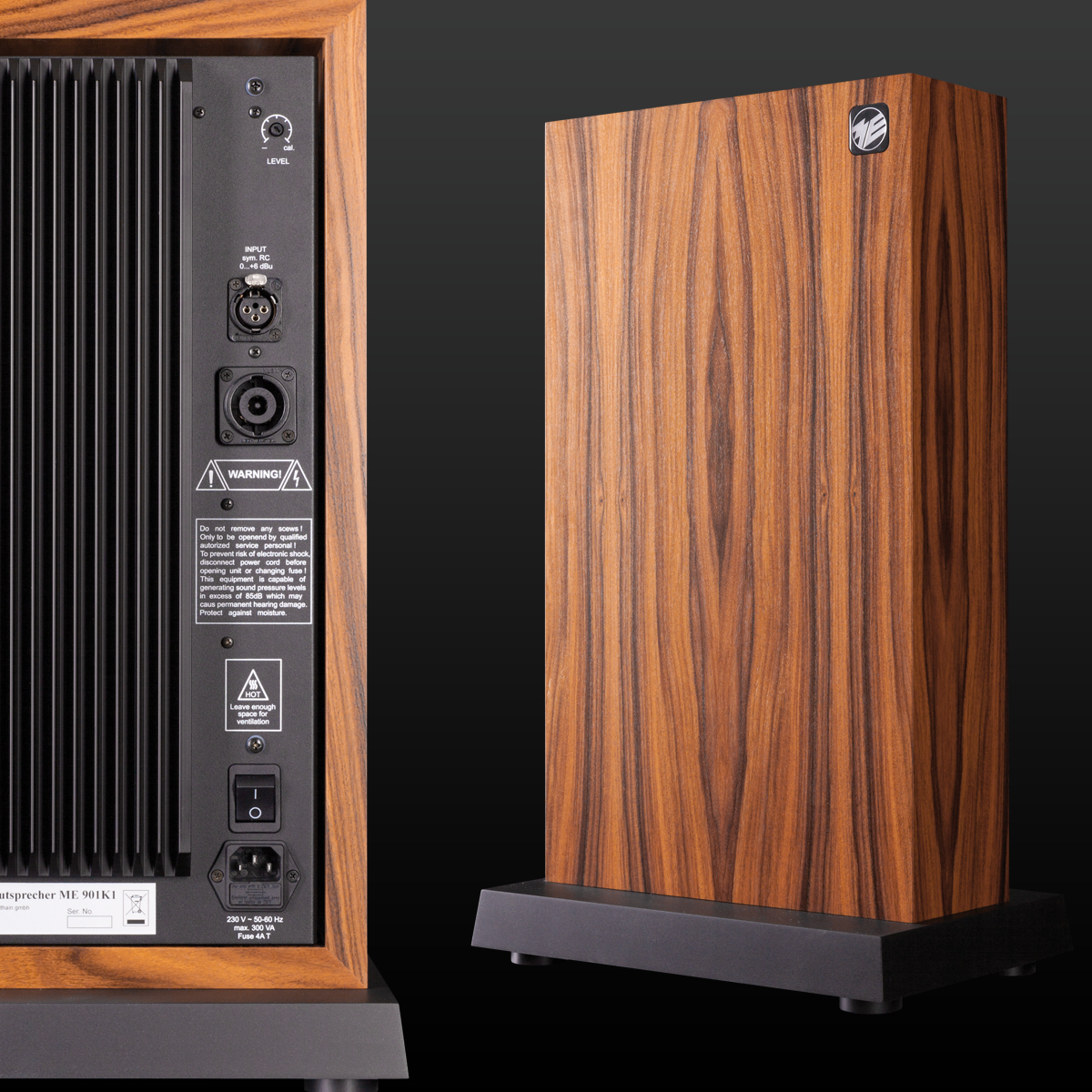

Input Connector
XLR 3F
Loudspeaker systems
Connection between loudspeaker
and amplifier case
Speakon NLT8FX; shielded cable
Standard length 1.50 m; other lengths optional available
Operation and Clipping indicator
LED on front side
Power requirements
230 V ~ ± 10 %; 50 Hz ... 60 Hz
115 V ~ ± 10 %; 50 Hz ... 60 Hz (optional)
100 V ~ ± 10 %; 50 Hz ... 60 Hz (optional)
Power consumption
35 VA at standby
max. 300 VA at full load
Mains Connection
IEC power connector
Dimensions (H x W x D)
Weight
Temperature requirements

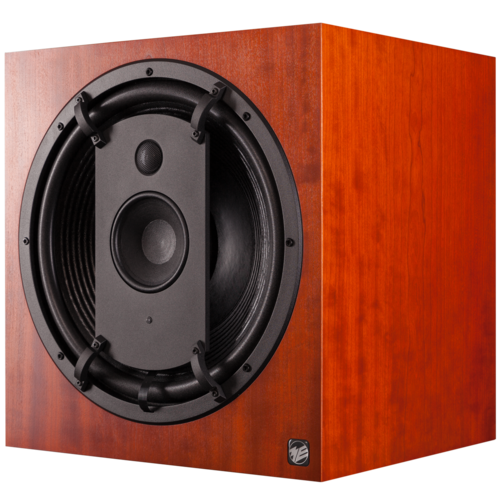

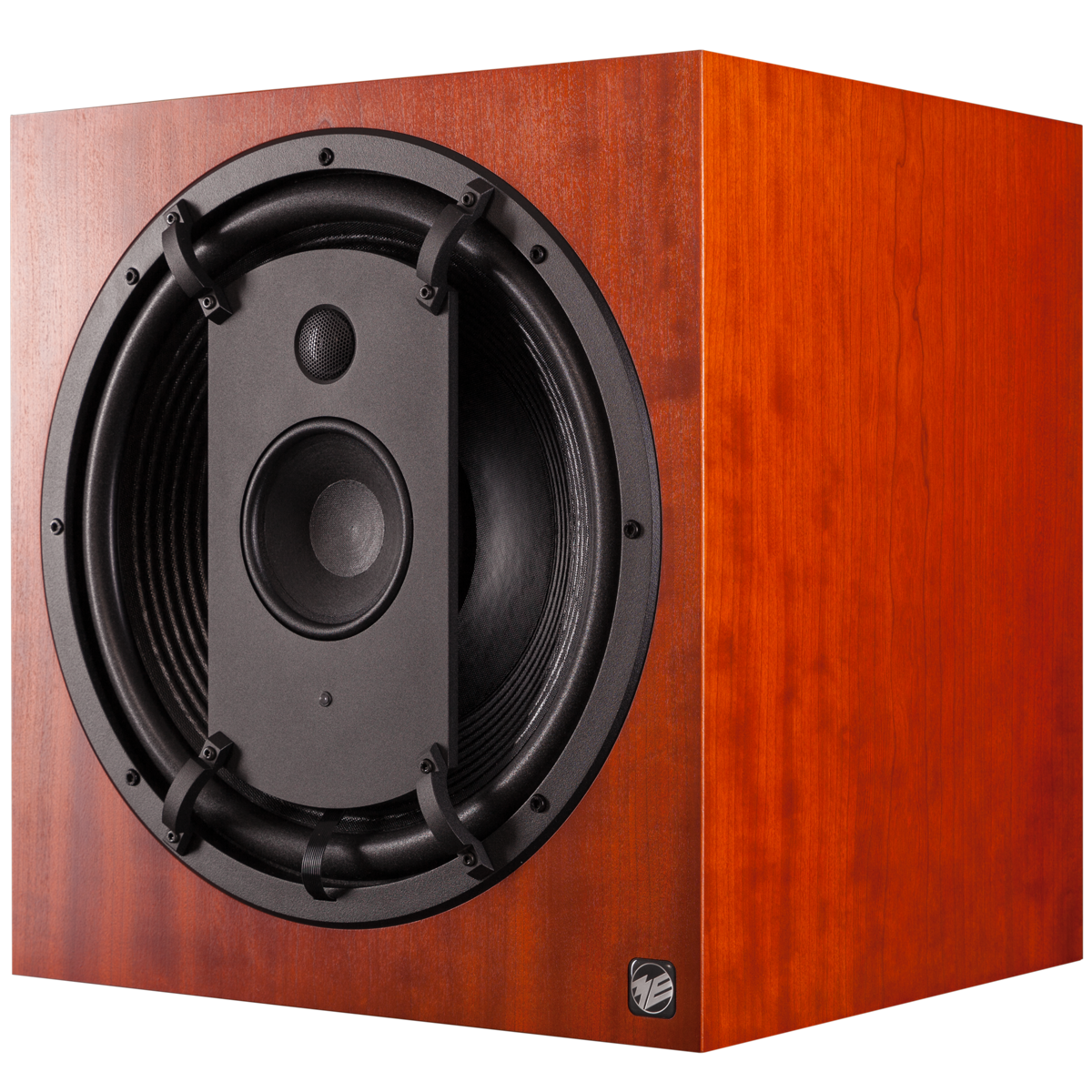

Design of the Cabinet
MDF-wood in ash black veneered; optional different
veneers or colours

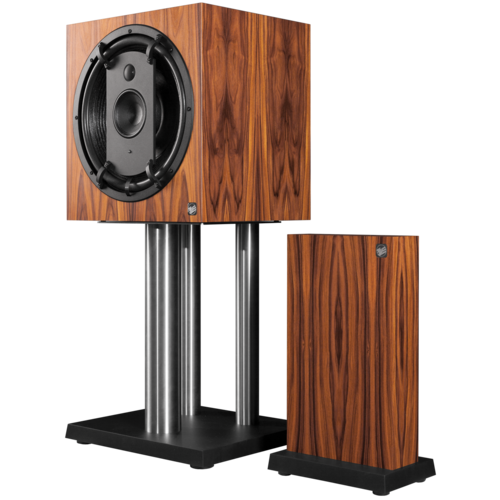

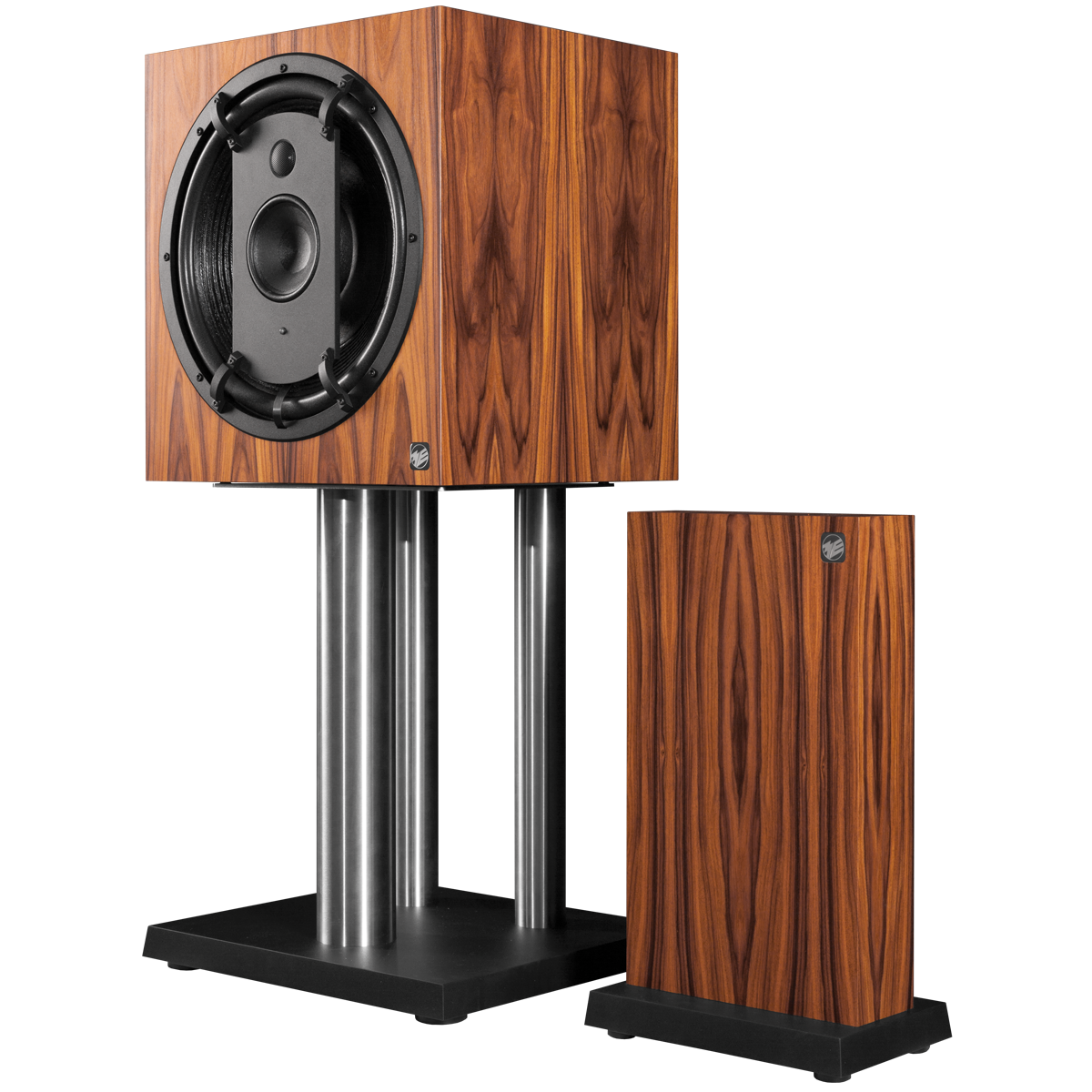

Pedestal (optional available)
fillable columns and top plate in polished stainless steel
base plate in microstructure semi-gloss-black

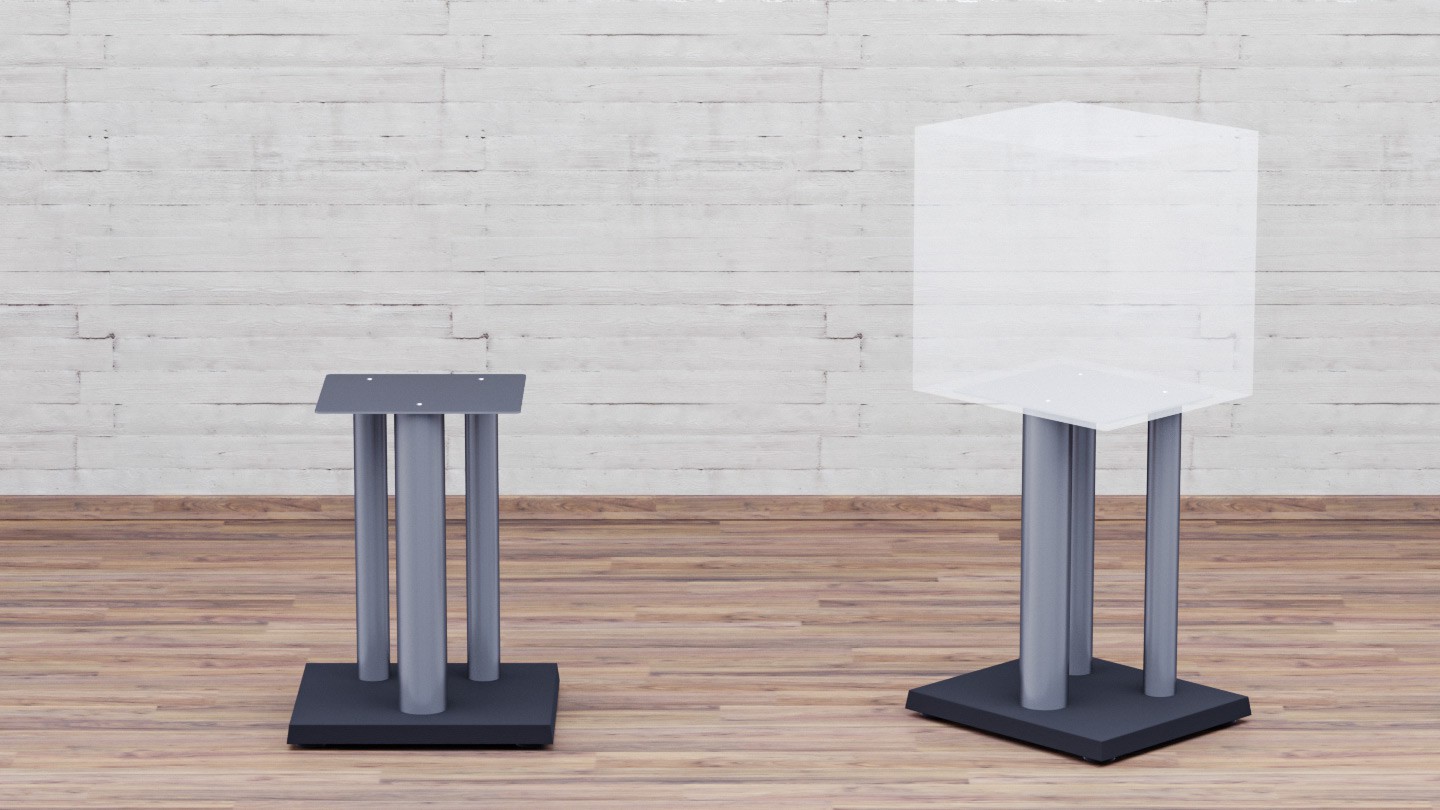

Pedestal
- height (top edge ME 901K1): ca. 1080 mm (42.5")
- base plate (B x T): 470 x 410 mm (18.5" x 16.1")
- fillable pillars and top plate in polished stainless steel
- base plate in microstructure semi-gloss-black
Technical drawings

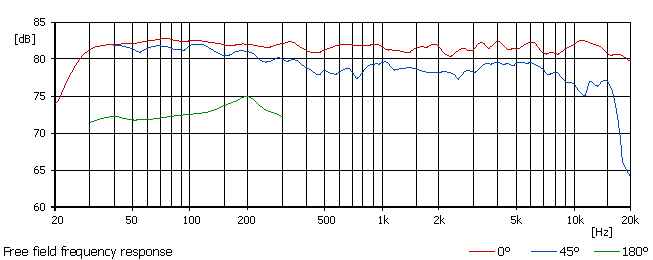

Test reports
Standard veneer ash black (RAL9005), optional veneers and optional colours
We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.
Important information about deviations from sample pattern
Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
