General
Passive high-end-compact-loudspeaker for listening distances between 1 and 3 m
Principle of construction
Coaxial 2-way-system in vented box
Maximum SPL
108 dB peak / r = 1 m (3.3 ft)
Sensitivity
85 dB
Bandwidth
50 Hz ... 20 kHz - 3 dB / 4 pi
Directivity index
from 200 Hz ... 10 kHz
increasing from 1.5 to 11 dB
Total harmonic distortion
measured at 90 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz
≤ - 40 dB
Electronic Crossover frequencies
2.5 kHz
Impedance
4 Ohm
Nominal power capacity
50 Watt
Maximum power capacity
80 Watt (at programme material)
Recommended amplifier power
50 ... 80 Watt
Loudspeaker systems

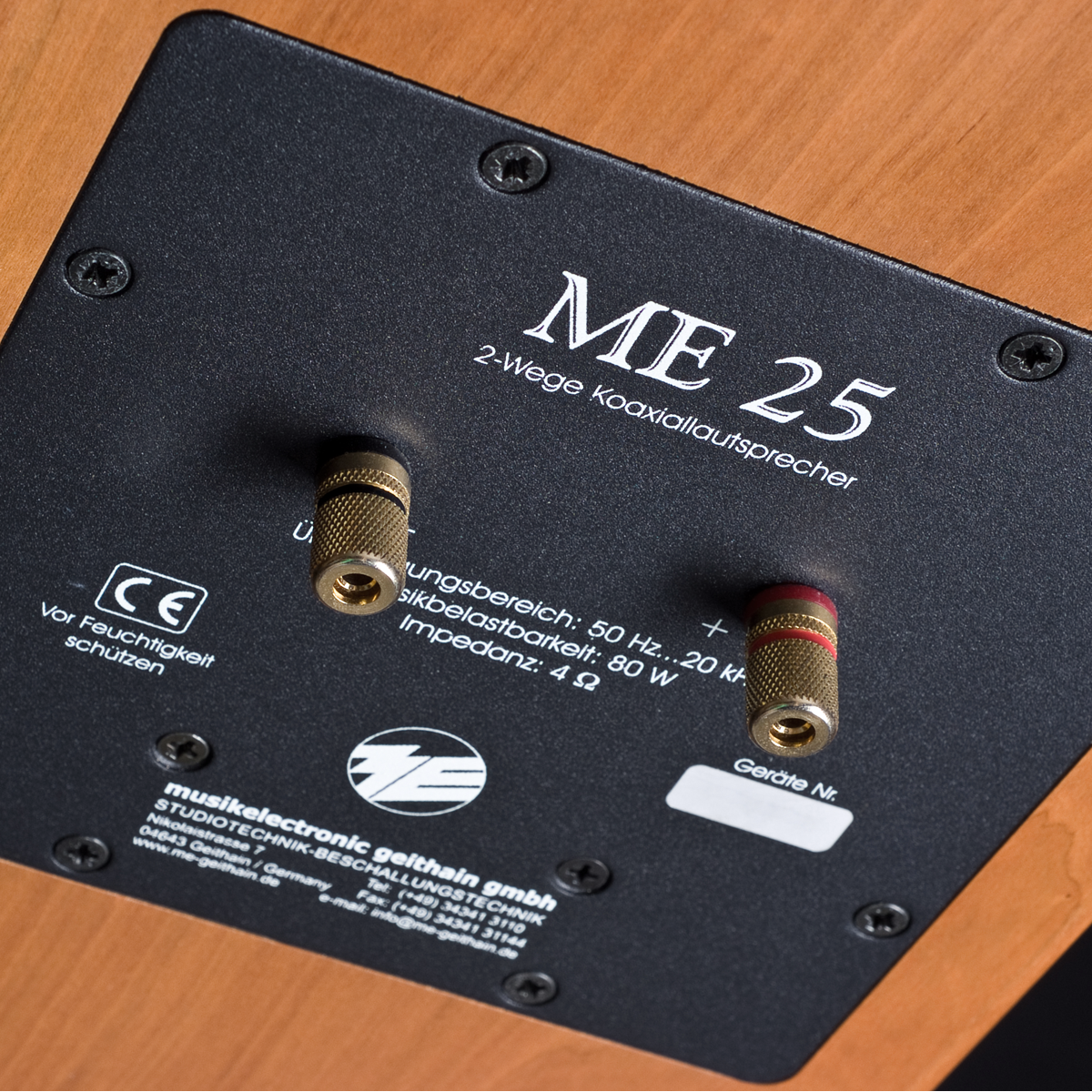

Input connector
Gold-plated screwed joint
Dimensions (H x W x D)
Weight
Design of the Cabinet
Pedestal
optional

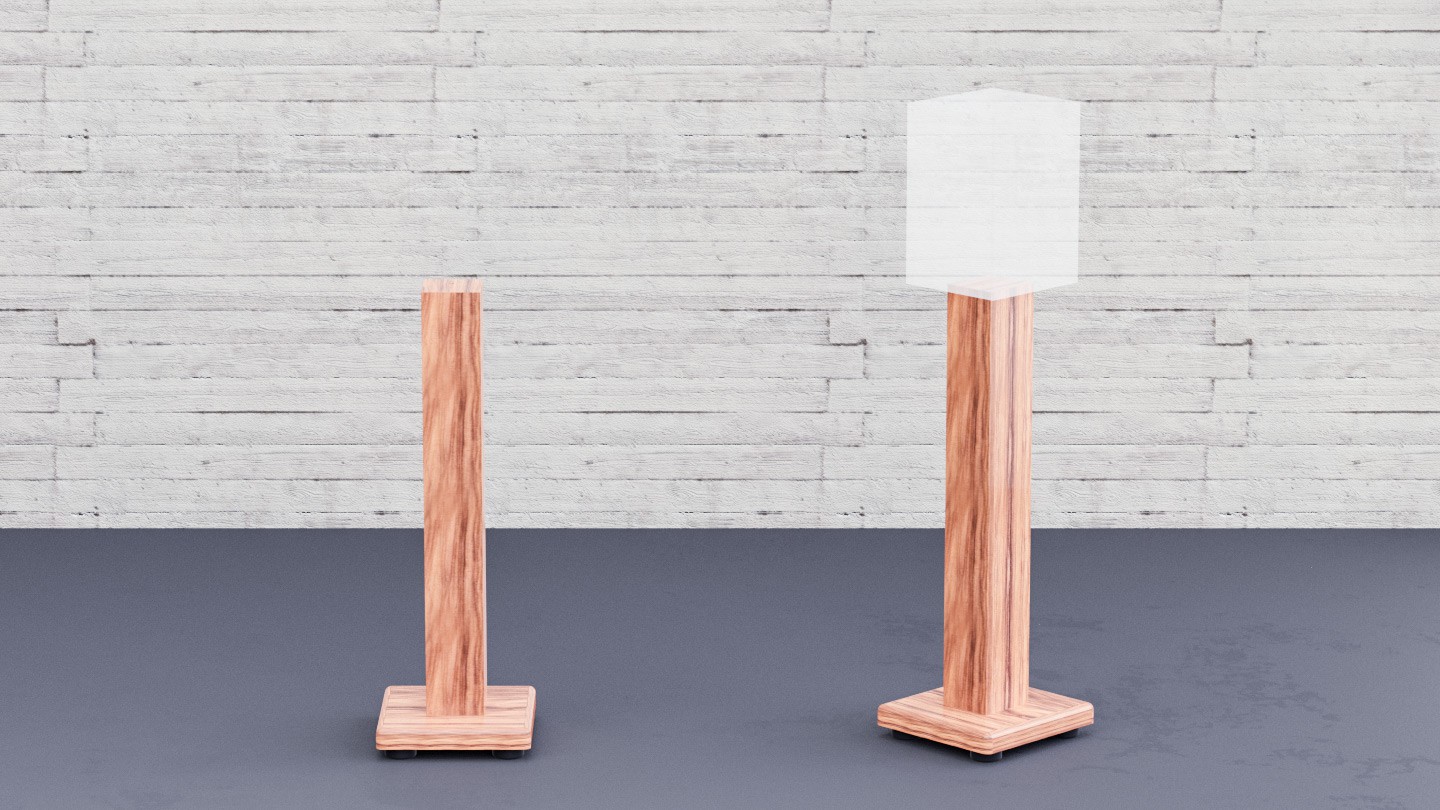

Pedestal
- Integrated cable duct in the pedestal
- Height (Top edge loudspeaker): approx. 1080 mm (42.5 in)
- Base panel (W x D): 265 mm x 280 mm (10.4 in x 11 in)
- Pedestal veneered
Test reports
Standard veneer ash black (RAL9005), optional veneers and optional colours
We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.
Important information about deviations from sample pattern
Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
