ME 150

3-way-coaxial-floorstanding-loudspeaker in vented box

"No ifs and buts, Joachim Kiesler succeeded to build an extremely living-room-friendly passive loudspeaker. Its sound keeps up with the paramount performance of the active monitors. A down-to earth speaker that does what it was created for – passing on the music just as it is being supplied."

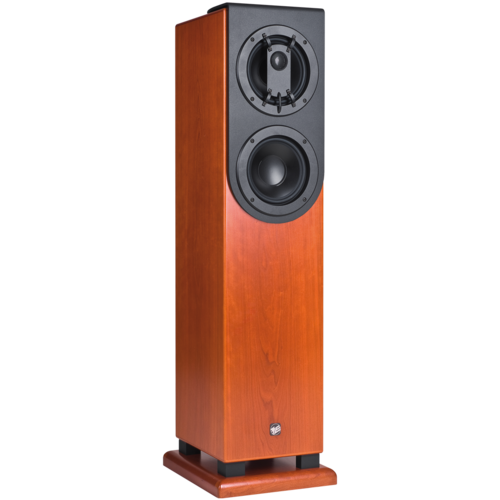

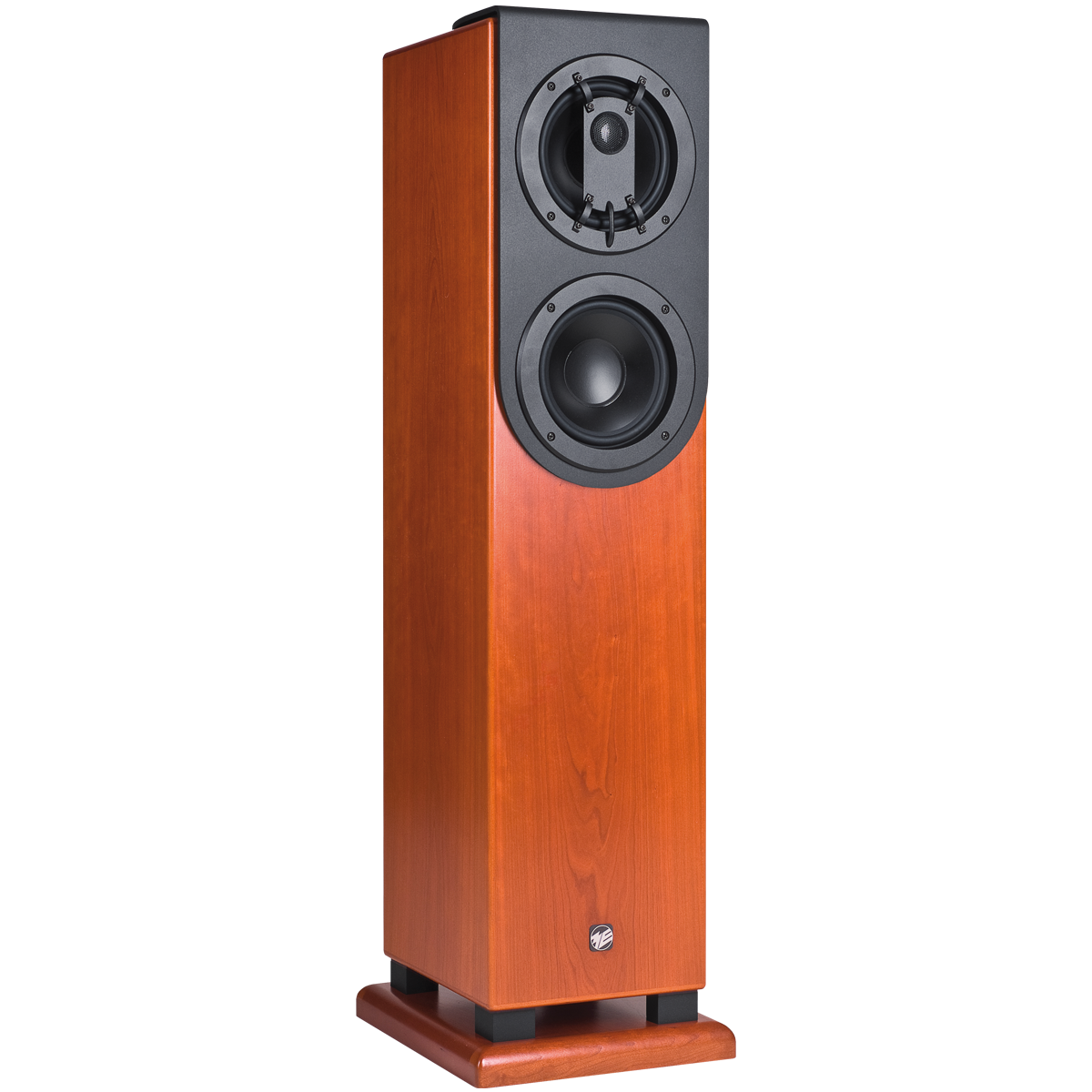

(shown veneer: american cherry stained)


Rolf Linden-Brüning, "Hörerlebnis" magazine, issue 63 (2008)

ME 150

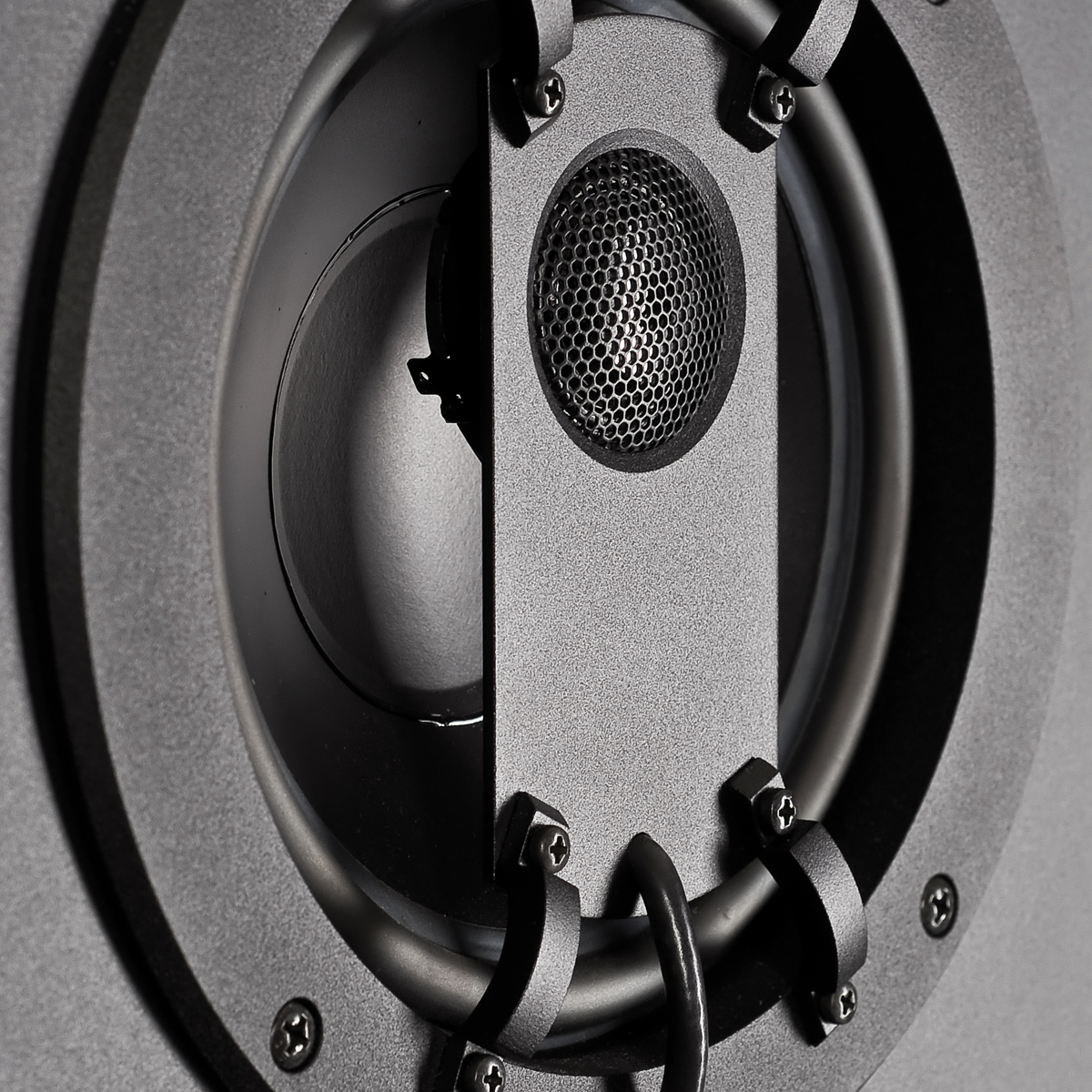

The two 6.5-inch cone loudspeakers of the ME150 passive 3-way floorstanding loudspeaker are responsible for the reproduction of the bass and mid frequencies and convince with excellent converter linearity. Both bass-midrange systems are placed in a bass-reflex cabinet with a downward-radiating exit opening. This design simplifies the positioning of the loudspeakers for achieving optimal bass reproduction in your listening room. A 1-inch calotte serves as tweeter unit, located coaxially in front of the upper bass-midrange system. The particular radiation characteristics, in connection with the coaxial arrangement, allow a homogenous and natural sound image for a basis width between 2 m and 3.5 m. Using a suitable AV receiver, the ME 150 floorstanding loudspeaker can be complemented with a subwoofer from our BASIS series.

The general concept of the passive 3-way coaxial loudspeaker ME 150 is characterised by its well-balanced and low-distortion sound image and its high dynamic qualities.

"No ifs and buts, Joachim Kiesler succeeded to build an extremely living-room-friendly passive loudspeaker. Its sound keeps up with the paramount performance of the active monitors. A down-to earth speaker that does what it was created for – passing on the music just as it is being supplied."


Rolf Linden-Brüning, "Hörerlebnis" magazine, issue 63 (2008)

General

Passive high-end-floorstanding-loudspeaker for listening distances between 2 and 3.50 m

Principle of construction

Coaxial 3-way-system in vented box

Maximum SPL

112 dB peak / r = 1 m (3.3 ft)

Sensitivity

85 dB

Bandwidth

45 Hz ... 20 kHz - 3 dB / 4 pi

Directivity index
from 100 Hz ... 10 kHz


increasing from 3 to 8 dB

Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz



≤ - 40 dB

Electronic Crossover frequencies

300 Hz and 2.2 kHz

Impedance

4 Ohm

Nominal power capacity

160 Watt

Maximum power capacity

200 Watt (at programme material)

Recommended amplifier power

100 ... 200 Watt

Loudspeaker systems

Woofer
160 mm (6.5") cone
Mid-range unit
160 mm (6.5") cone
Tweeter
25 mm (1") dome

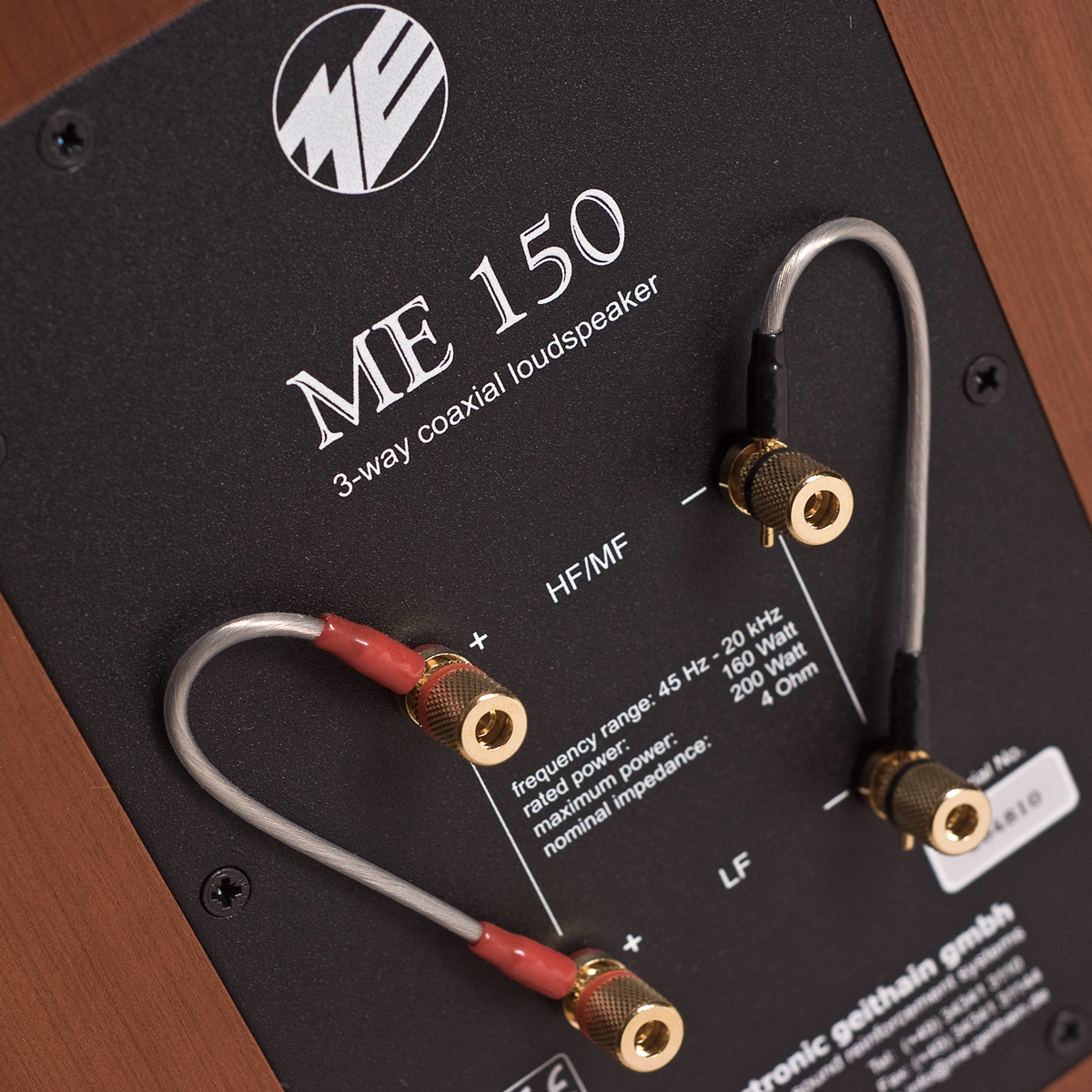

Input connector

bi-wiring, gold-plated screwed joint

Dimensions

Loudspeaker (H x W x D)
1035 x 240 x 300 mm (40.7 x 9.5 x 11.8 in)
Baseplate (W x D)
285 x 330 mm (11.2 x 13 in)

Weight

26 kg 58 (lbs)

Design of the Cabinet

corpus
MDF-wood in ash black veneered; optional different veneers or colors
acoustic baffle
MDF-wood in microstructure semi gloss black

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
