ME 110

3-way-coaxial-floorstanding-loudspeaker in vented box

The ME 110 passive 3-way coaxial loudspeaker is the smallest floorstanding loudspeaker in our ME series. Its two 5-inch cone loudspeakers, which reproduce the bass and middle frequency range, convince with excellent converter linearity.

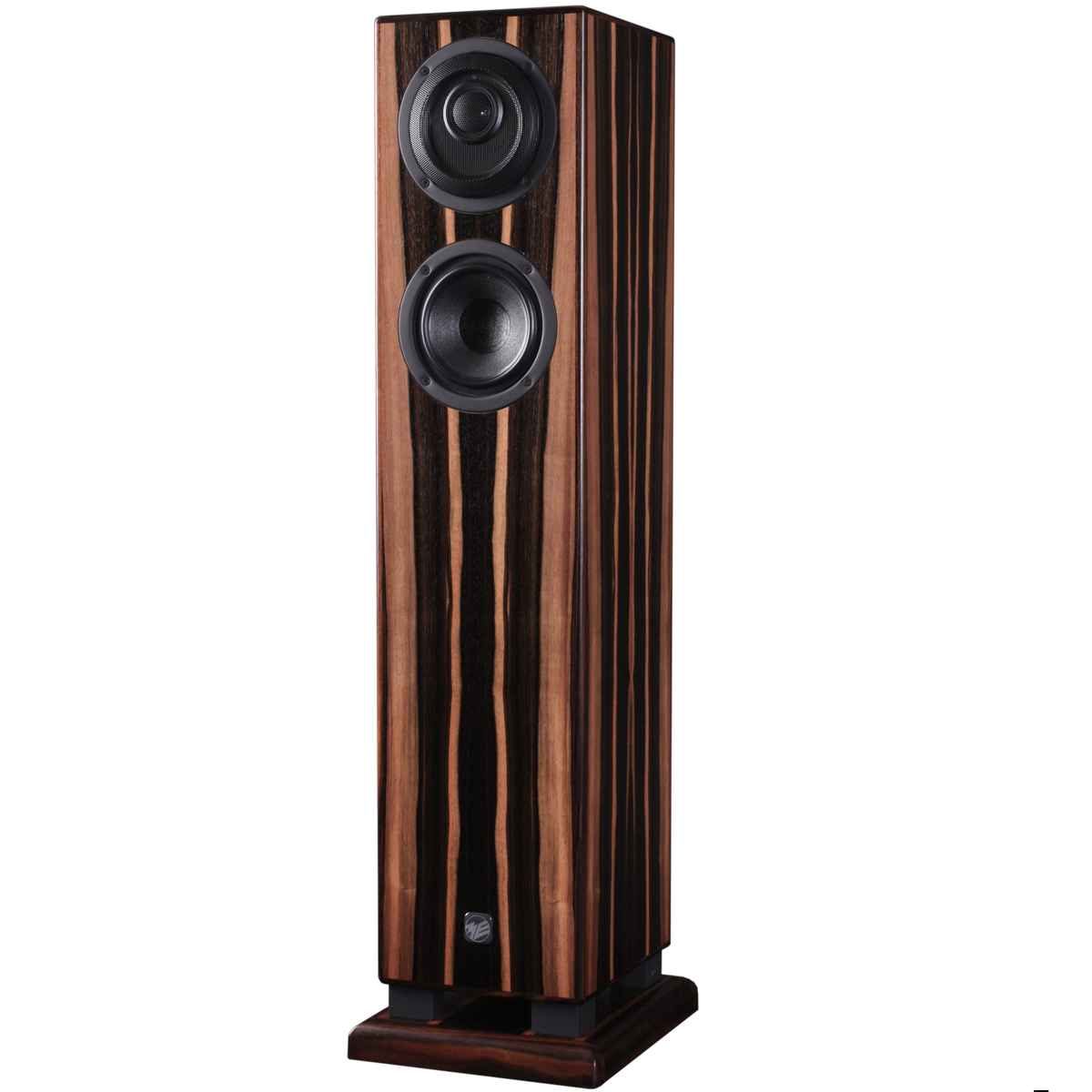

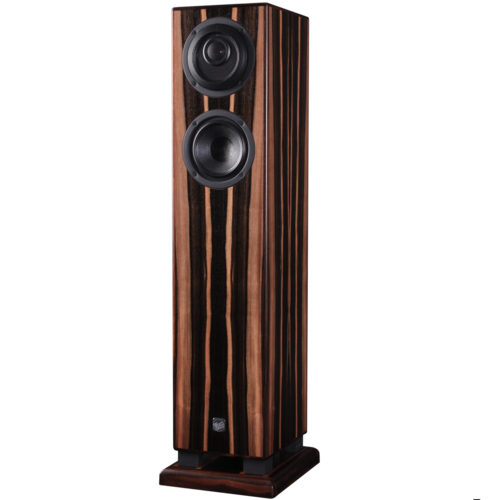

(shown veneer: beech nature, macassar nature)

ME 110

The ME 110 passive 3-way coaxial loudspeaker is the smallest floorstanding loudspeaker in our ME series. Its two 5-inch cone loudspeakers, which reproduce the bass and middle frequency range, convince with excellent converter linearity. They are fitted into a bass-reflex cabinet with a downward-radiating exit opening. This design simplifies the positioning of the loudspeakers for achieving optimal bass reproduction in your listening room. A 1-inch calotte serves as tweeter unit, located coaxially in front of the upper bass-midrange system. The particular radiation characteristics, in connection with the coaxial arrangement, allow a homogenous and natural sound image for a basis width between 1.50 m and 3 m. Using a suitable AV receiver, the ME 110 floorstanding loudspeaker can be complemented with our BASIS 11K subwoofer.

The general concept of the passive 3-way coaxial loudspeaker ME 110 is characterised by its well-balanced and low-distortion sound image and its dynamic qualities.

General

Passive high-end-floorstanding-loudspeaker for listening distances between 1.50 and 3 m

Principle of construction

Coaxial 3-way-system in vented box

Maximum SPL

110 dB peak / r = 1 m (3.3 ft)

Sensitivity

85 dB

Bandwidth

45 Hz ... 20 kHz - 3 dB / 4 pi

Directivity index
from 200 Hz ... 10 kHz


increasing from 3 to 11 dB

Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz



≤ - 40 dB

Electronic Crossover frequencies

300 Hz and 2.2 kHz

Impedance

4 Ohm

Nominal power capacity

80 Watt

Maximum power capacity

120 Watt (at programme material)

Recommended amplifier power

80 ... 120 Watt

Loudspeaker systems

Woofer
125 mm (5") cone
Mid-range unit
125 mm (5") cone
Tweeter
25 mm (1") dome

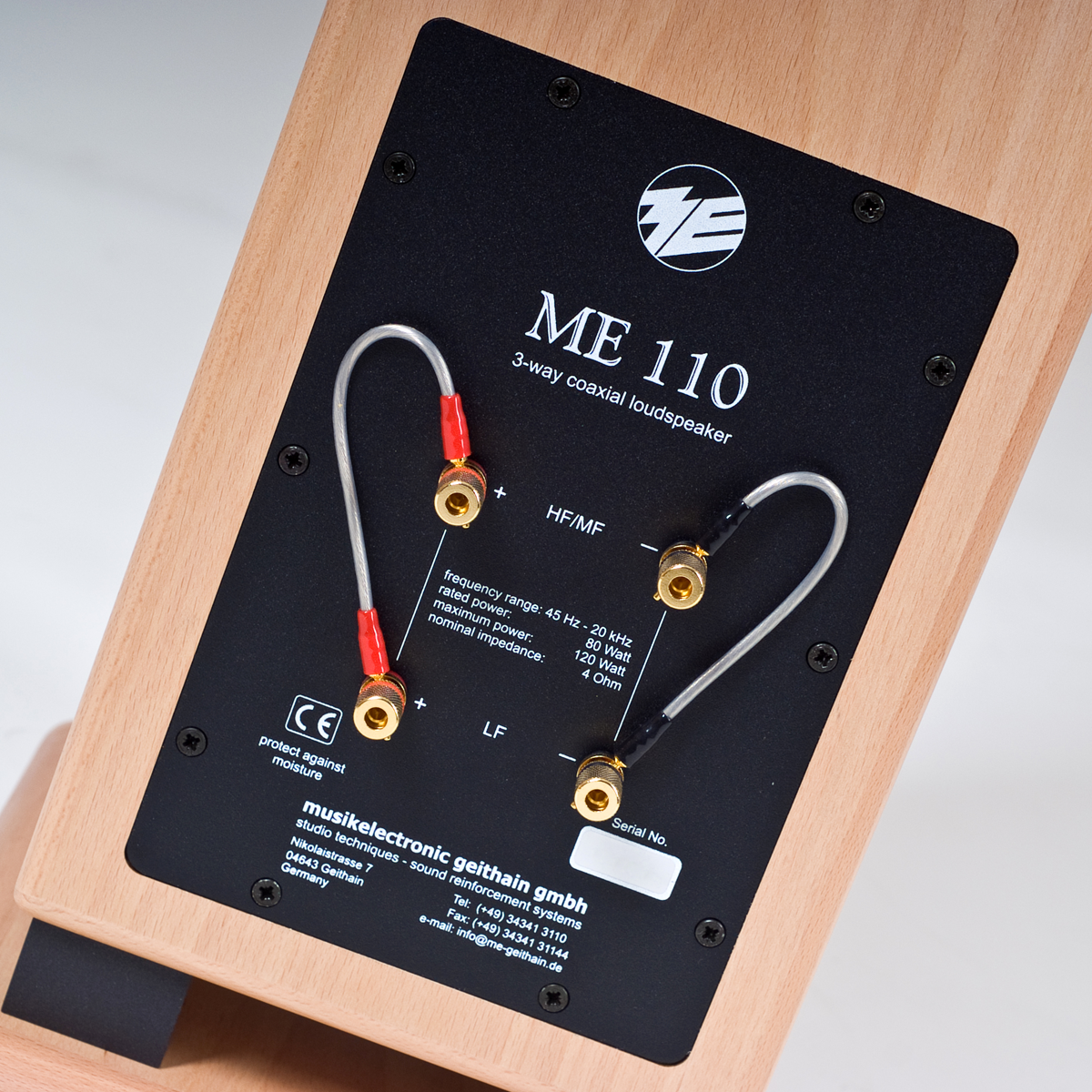

Input connector

bi-wiring, gold-plated screwed joint

Dimensions

Loudspeaker (H x W x D)
955 x 205 x 245 mm (37.6 x 8 x 9.6 in)
Baseplate (W x D)
250 x 290 mm (9.8 x 11.4 in)

Weight

18 kg (40 lbs)

Design of the Cabinet

MDF-wood ash black veneered, optional different veneers or colors

Brochure and Documentation

Standard veneer ash black (RAL9005), optional veneers and optional colours

We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.

Important information about deviations from sample pattern

Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
