General
passive high-end-compact-loudspeaker for listening distances between 1.50 m (5 ft) and 3 m (10 ft)
Principle of construction

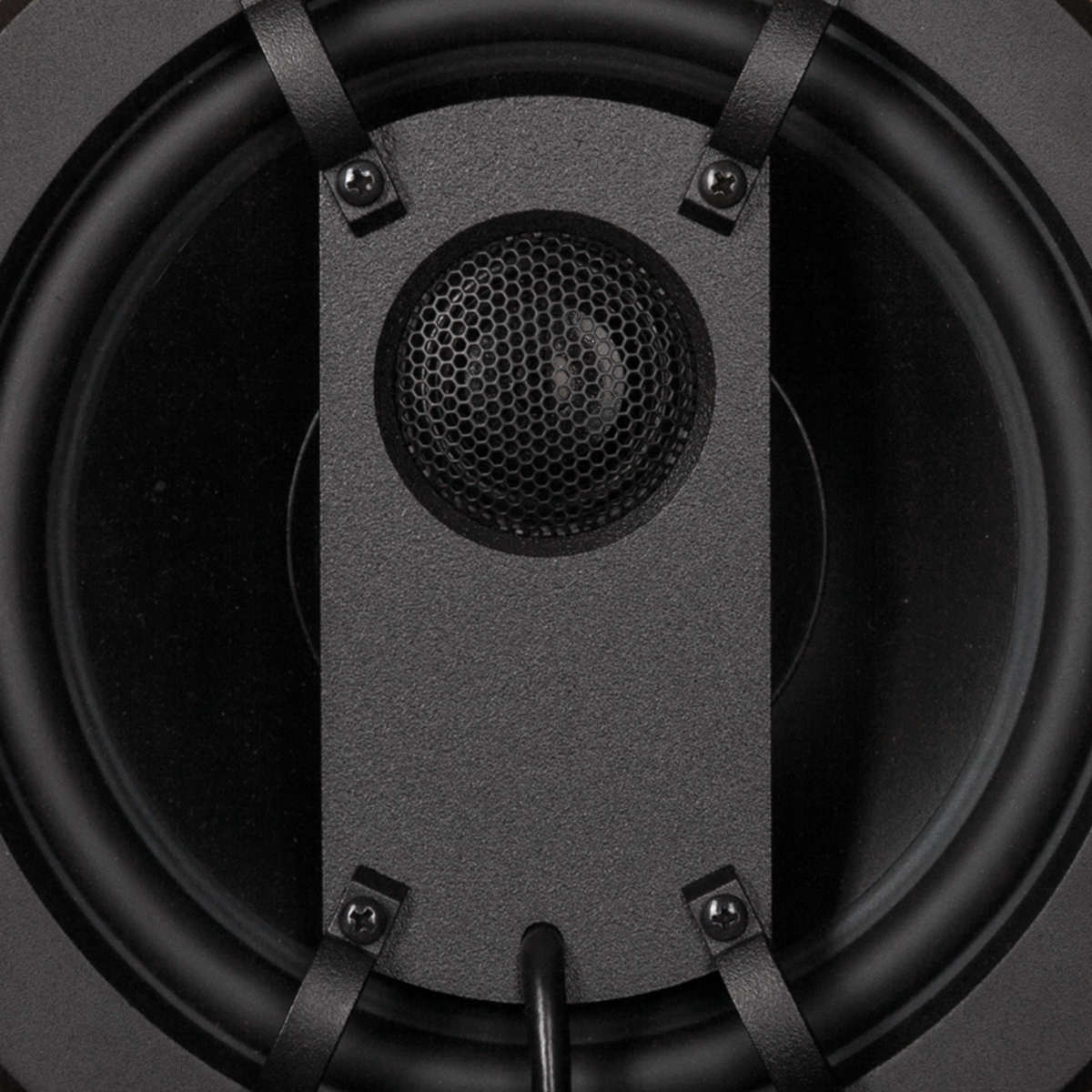

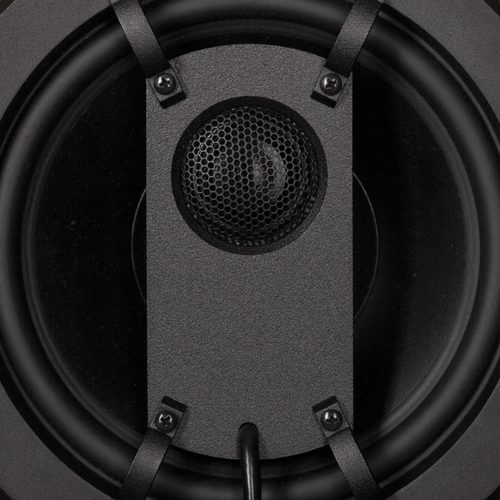

Coaxial 2-way-system in vented box
Maximum SPL
111 dB peak / r = 1 m (3.3 ft)
Sensitivity
85 dB

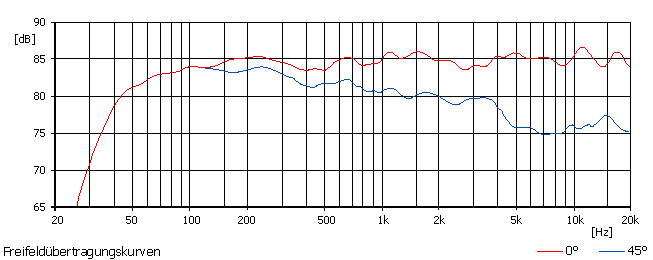

Bandwidth
50 Hz ... 20 kHz ± 3 dB / 4 pi
Directivity index
from 100 Hz ... 10 kHz
increasing from 1 dB to 8 dB

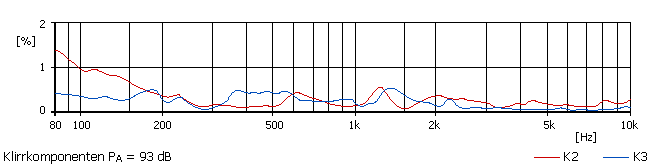

Total harmonic distortion
measured at 93 dB / r = 1 m (3.3 ft)
from 100 Hz ... 10 kHz
≤ - 40 dB
Electronic crossover frequency
2.5 kHz
Impedance
4 Ohms
Nominal power capacity
100 W
Maximum power capacity
150 W
Recommended amplifier power
80 W ... 150 W
Loudspeaker systems

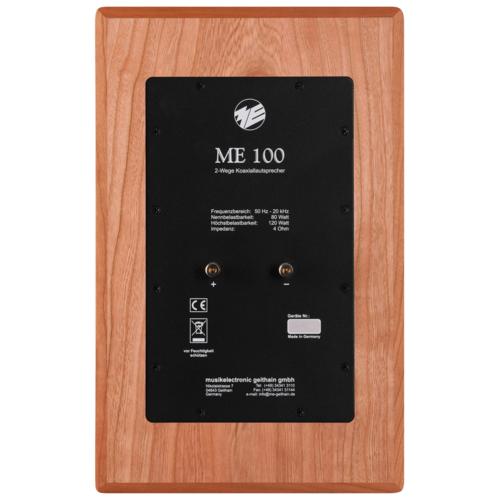

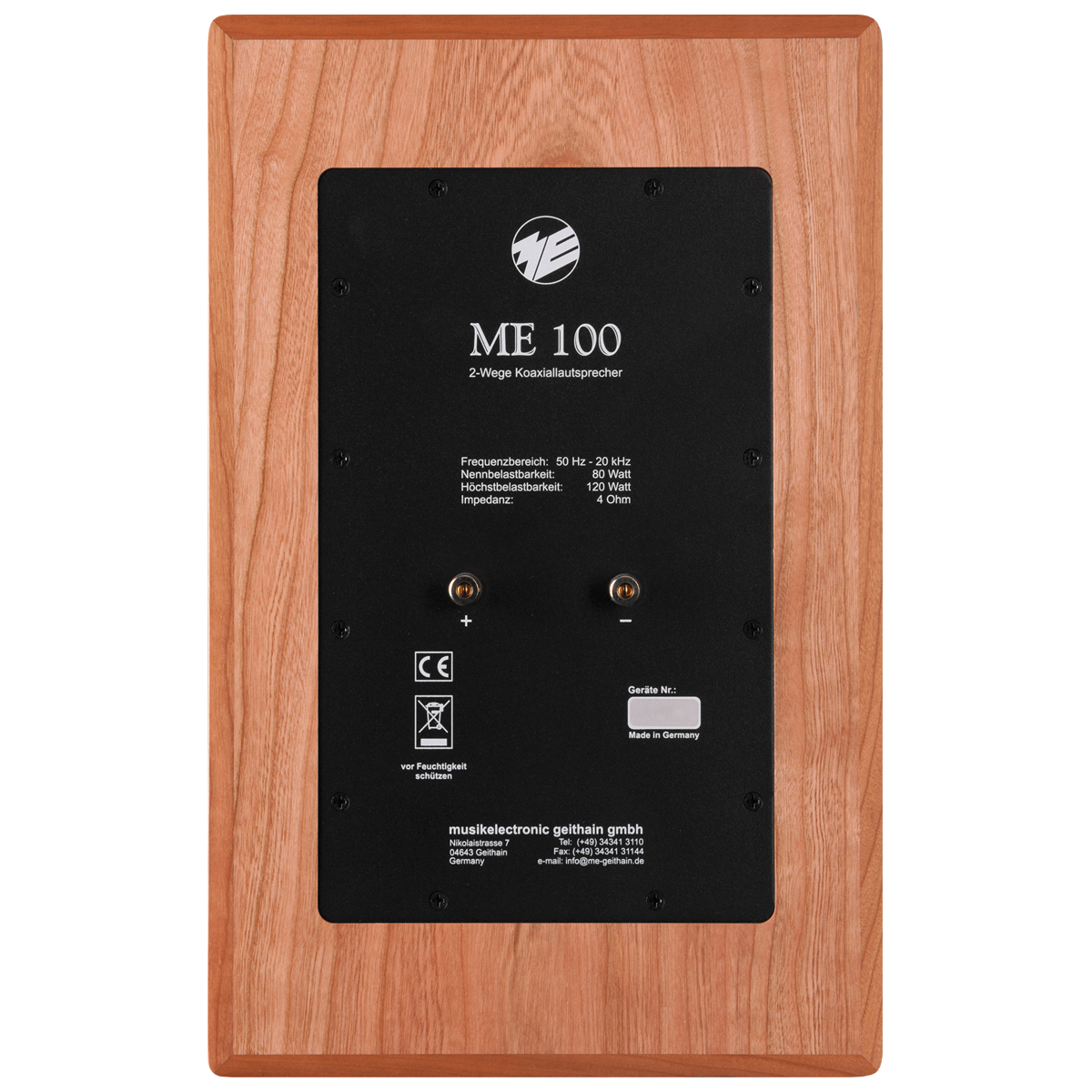

Input connector
gold-plated binding posts
Dimensions (H x W x D)
Weight
Design of the Cabinet

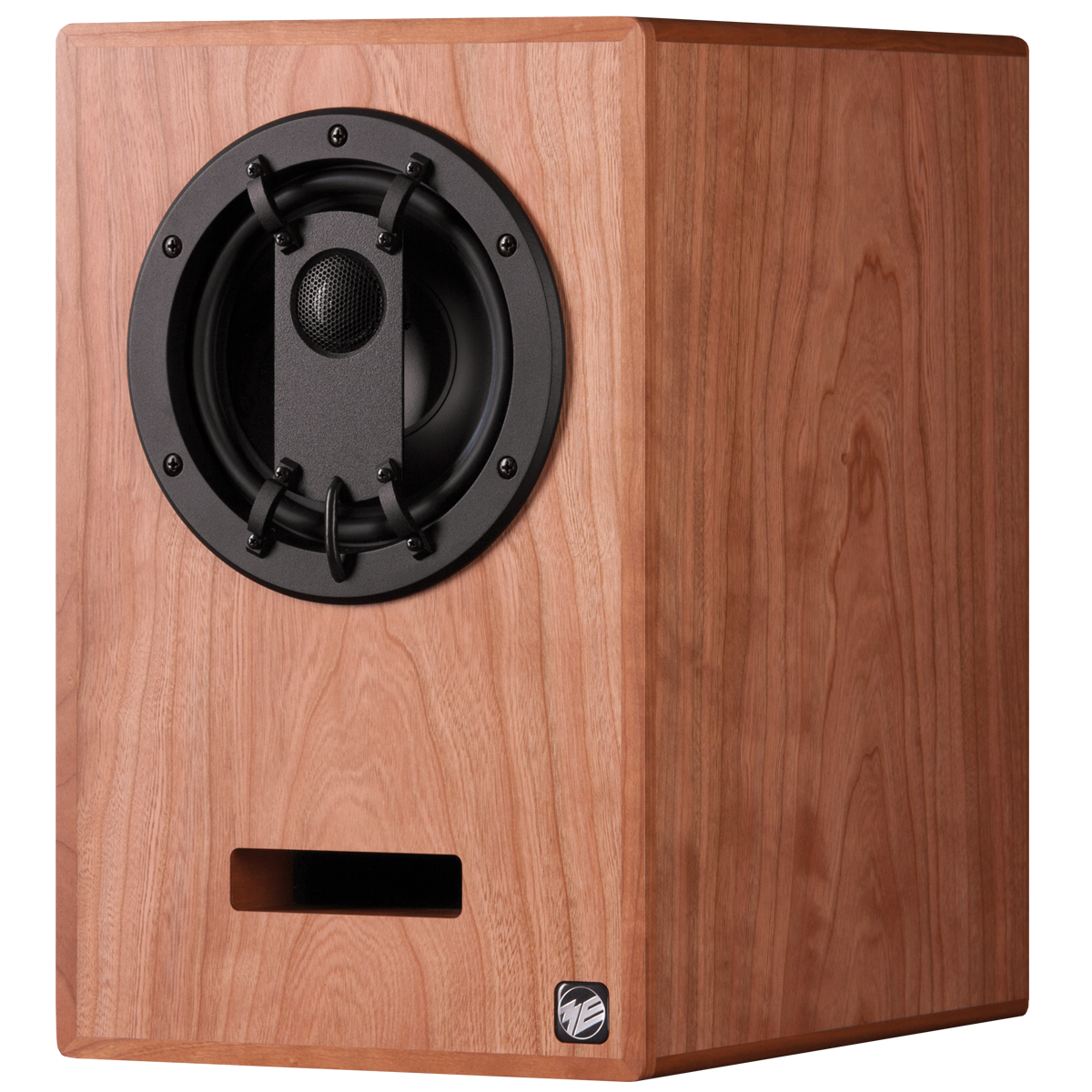

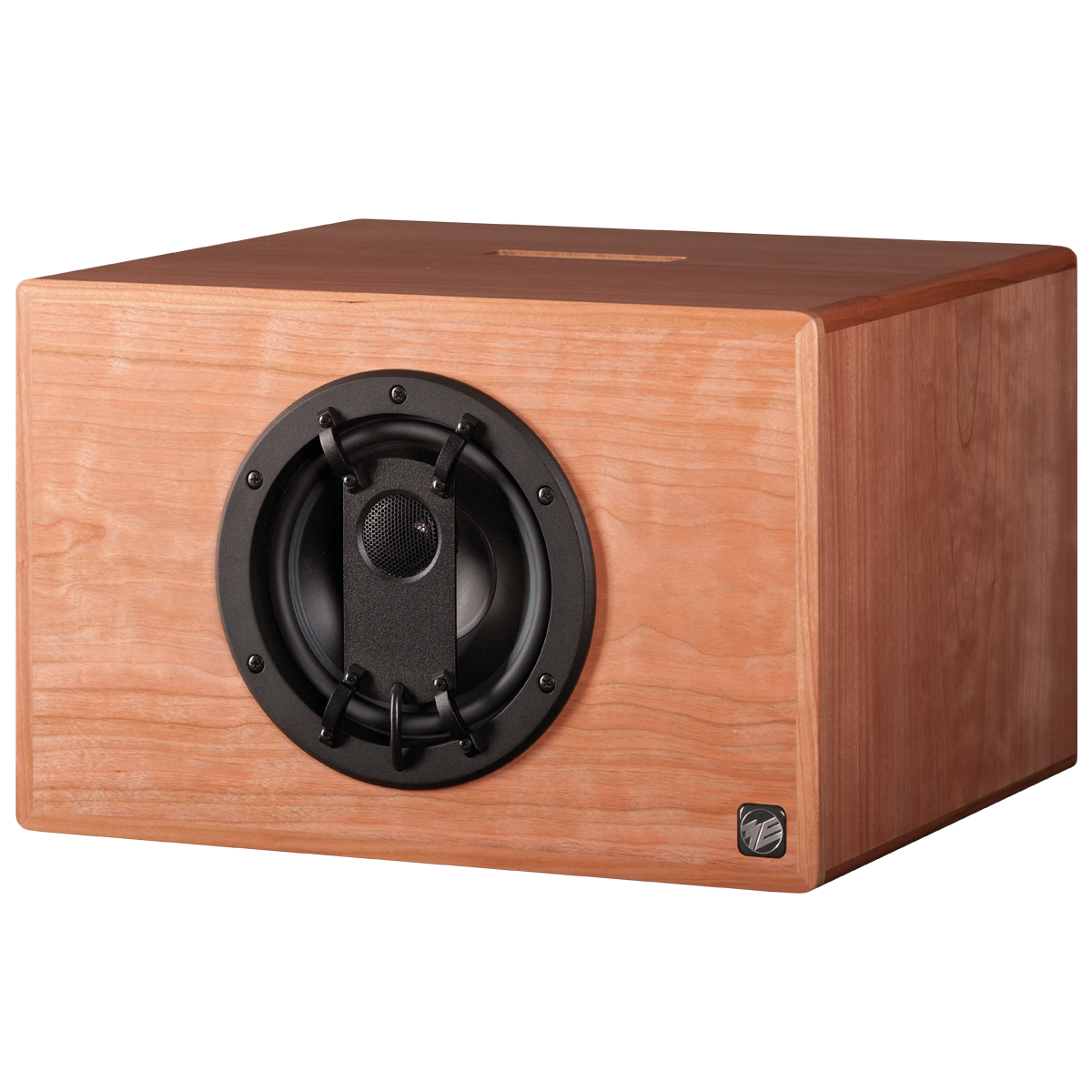

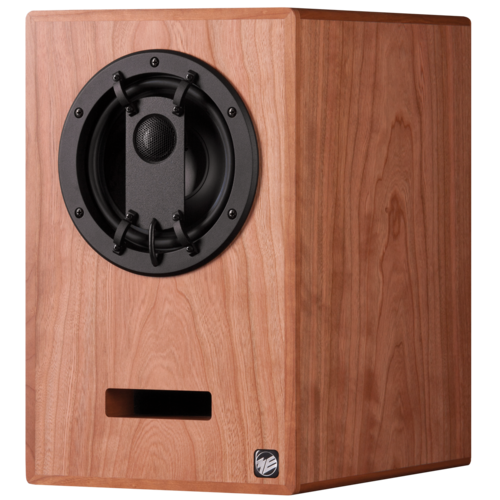

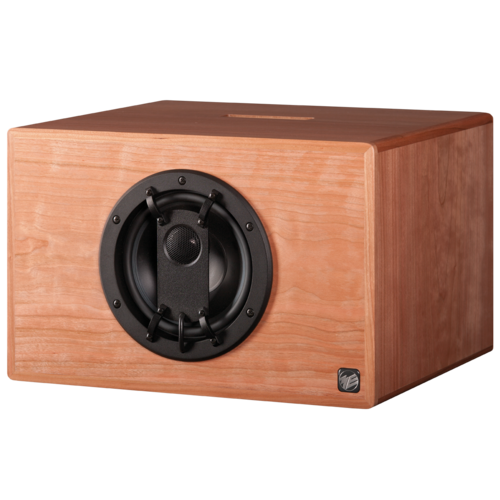

ME 100 / ME 100C
MDF-wood in ash black veneered; optional different veneers or colours;
optionally with holding device available

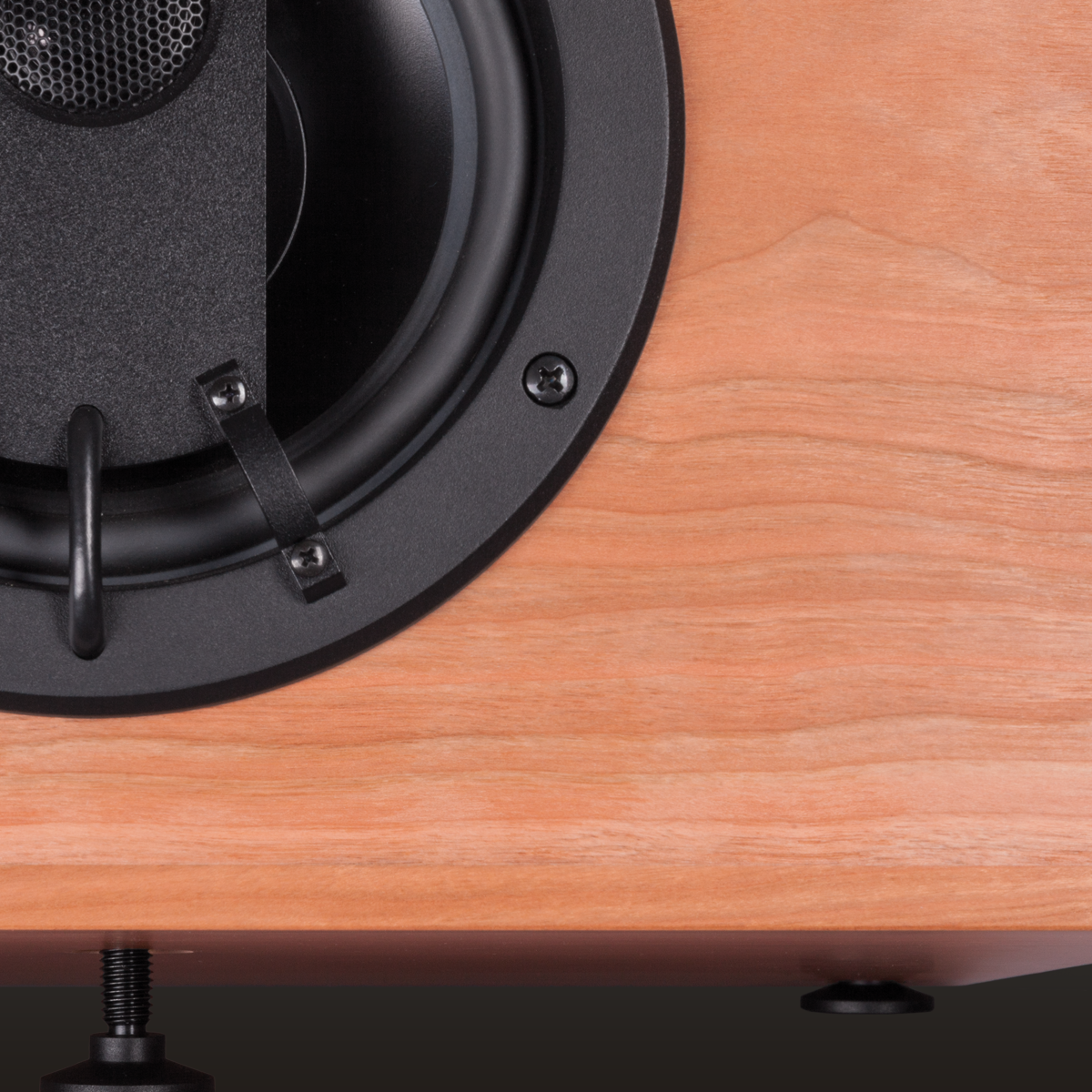

with heigth-adjustable feet at the cabinet bottom
Pedestal
optional for ME 100

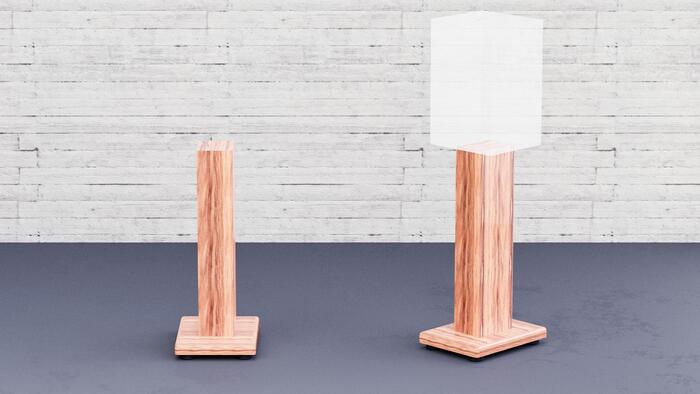

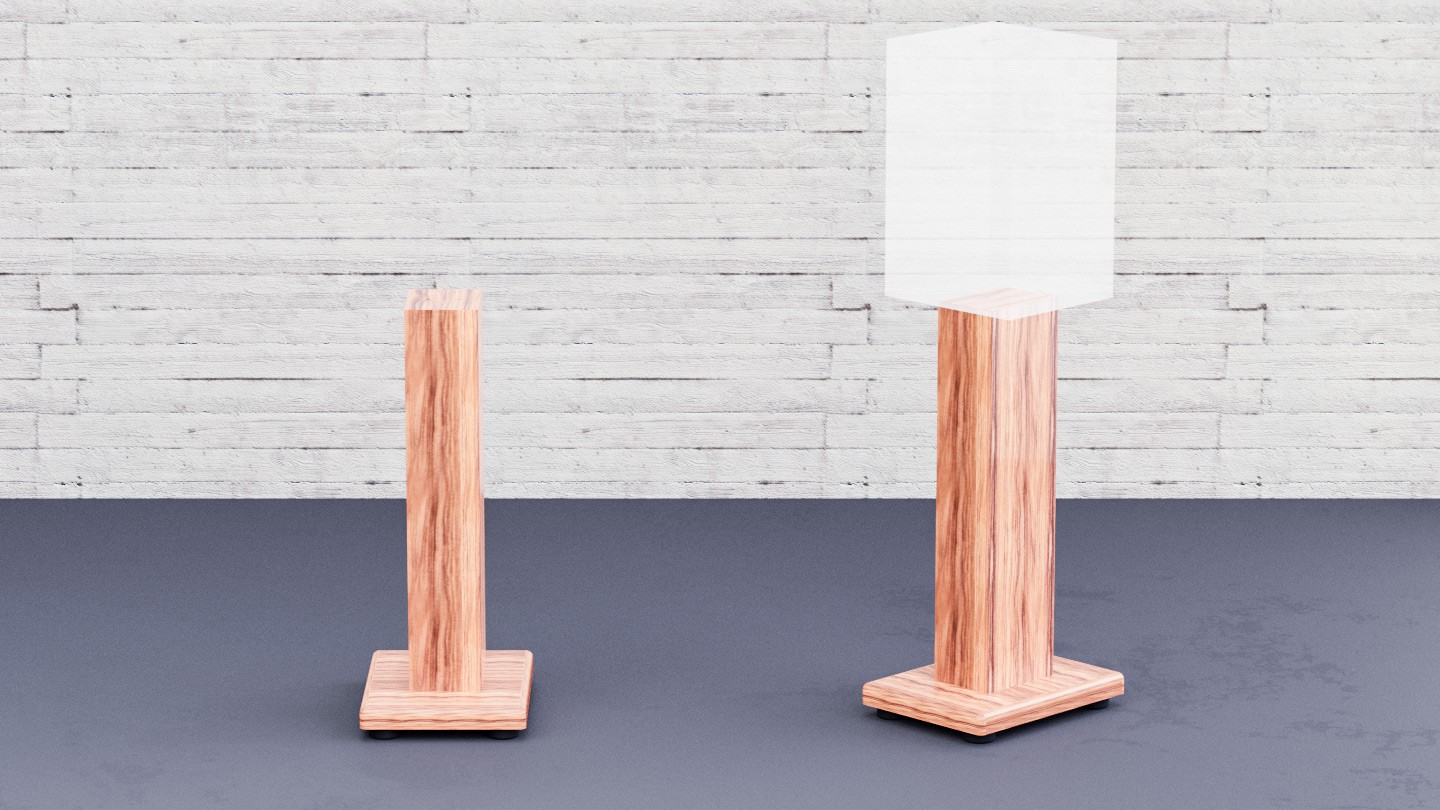

Pedestal for ME 100
- Integrated cable duct in the pedestal
- Height (Top edge loudspeaker): approx. 1109 mm (43.7")
- Base panel (W x D): 275 x 365 mm (10.8" x 14.4")
- Pedestal veneered
Technical drawings
Standard veneer ash black (RAL9005), optional veneers and optional colours
We offer our loudspeakers in standard veneer ash black (RAL9005) or for an additional charge in different optional veneers respectively optional colours. This website provides an overview on the optional veneer and lacquer styles. We are pleased to check if your desired individual veneer and colour can be realised.
Important information about deviations from sample pattern
Wood is a natural product. Even the most thorough manufacturing can result in deviations in colour or structure and is no cause for complaint.
Images are represented differently on every screen and hence not colour-proof.
